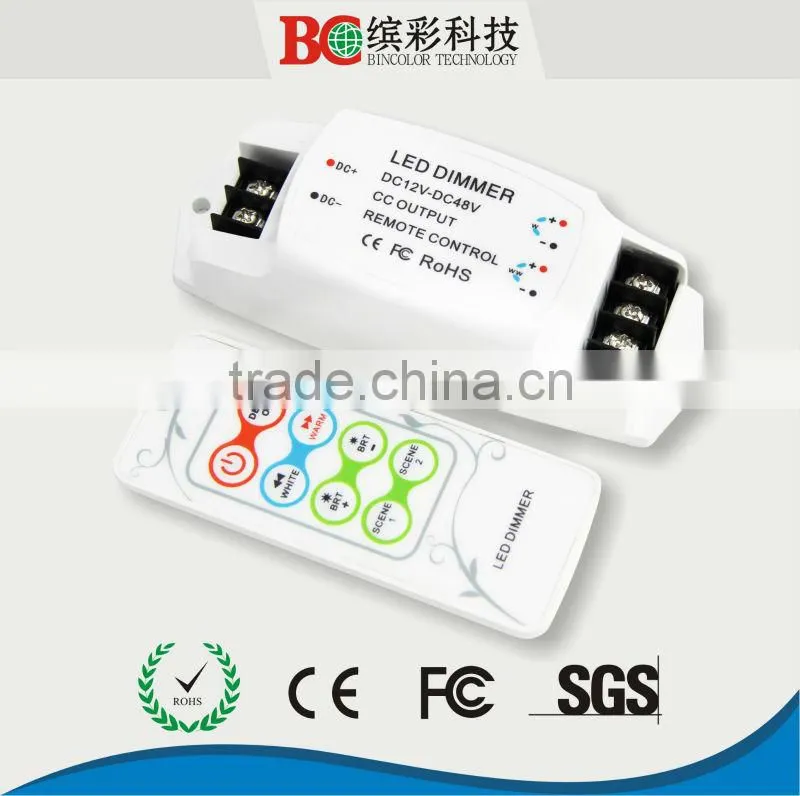

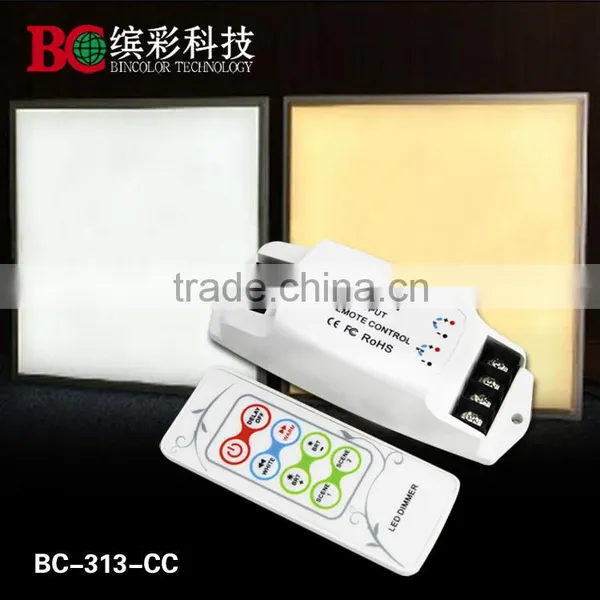

BC-313 2ch led color temperature led controller warm white controller 700ma

Name: BC-313 2ch led color temperature led controller warm white controller 700ma
Brand: Bincolor
Availability: InStock

FOB Price

USD $10 - $30 / Piece

2 Pieces(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Zhuhai China
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Bincolor

Model Number:

BC-313-700

Product Description

2ch led color temperature led controller warm white controller 700ma

Specification:

Model	BC-313-350	BC-313-700
Input voltage	DC12V-DC48V	DC12V-DC48V
Max load current	350MA	700MA
Driving LEDs	12V: 1-3pcs 1W LED 24V: 1-6pcs 1W LED 36V: 1-9pcs 1W LED 48V: 1-12pcs 1W LED	12V: 1-3pcs 3W LED 24V: 1-6pcs 3W LED 36V: 1-9pcs 3W LED 48V: 1-12pcs 3W LED
Output signal	Constant current PWM	Constant current PWM
Dimming range	0-100%	0-100%
Scale levels	4096 levels	4096 levels
Switch Dimension	L125xW45xH36(mm)	L125xW45xH36(mm)
Weight (G.W)	100g	100g

Product Features

1. Automatically adapt to operation voltage DC12V-48V.

2. Full range 0~100% brightness adjustable. 4096 step-less scale levels dimming. Lamplight is soft and stable without any flicker, precisely control color temperatures.

3. 2-channel outputs with Max 350mA or 700mA constant current. Working with power repeater to expand power output unlimitedly.

4. 4 DIY modes. Easy to replay your favorite settings.

5. Compact design, easy to install.

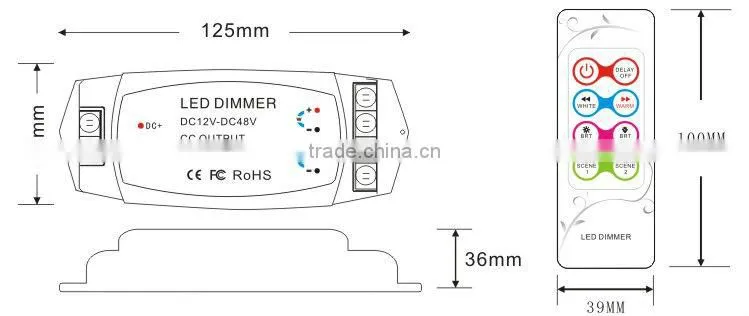

Dimension:

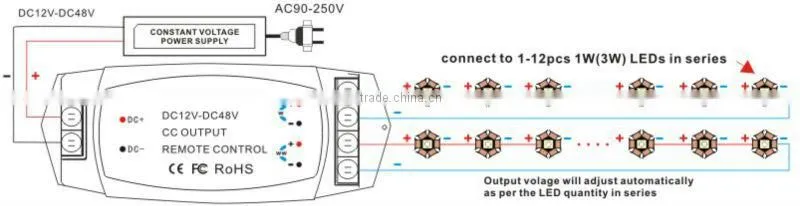

Typical Wiring Schematic:

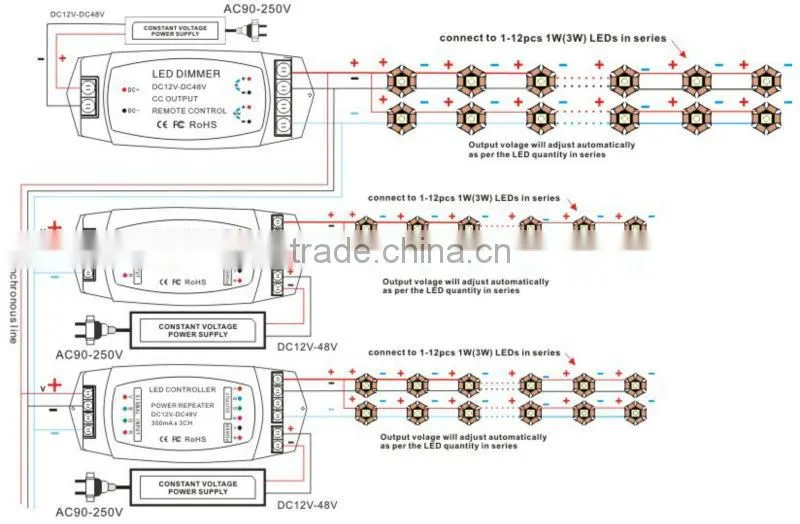

BC-313 work with BC-990 LED amplifier to extend power:

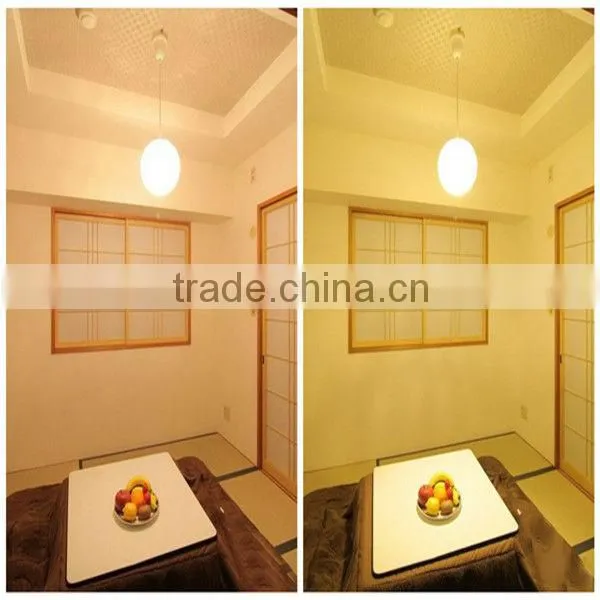

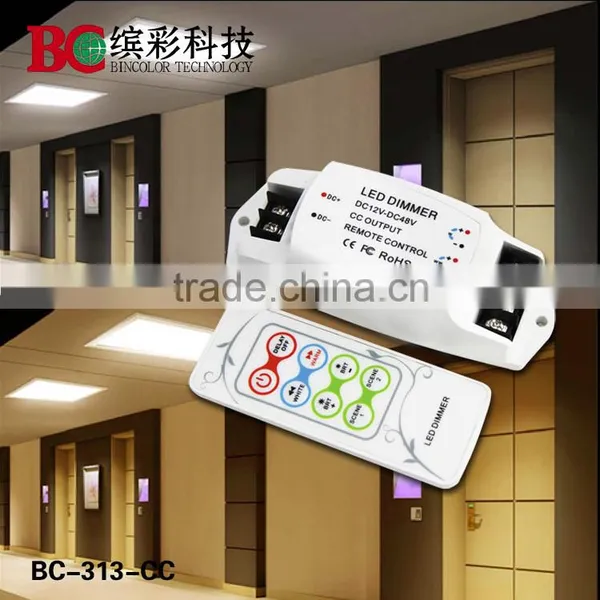

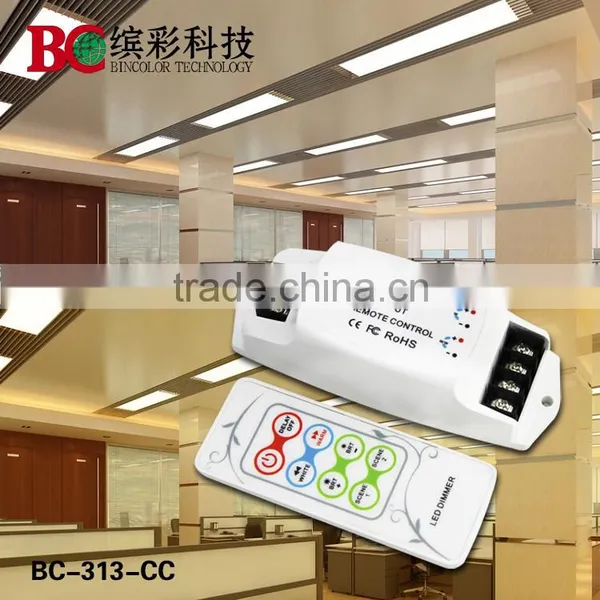

Application photos:

Our Service

1. Professional buying advice according to your needs.

2. Instant response to your inquiries.

3. Short lead-time, JIT delivery.

4. Three years warranty for all of our products.

5. Samples orders, OEM/ODM orders are also welcomed.

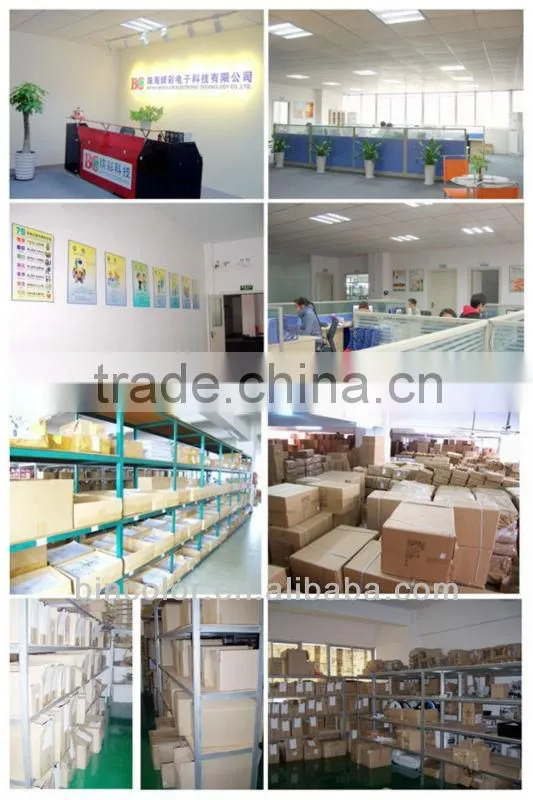

Some images of our office, factory, warehouse and product certificates:
