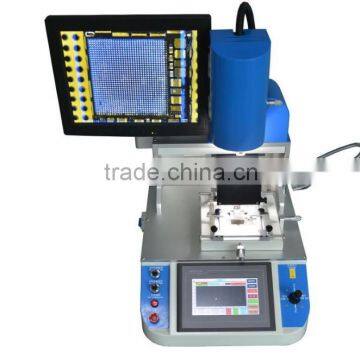

WDS-700 cell phone repair for all types cell phone screen repair
- 888 Set / Sets per Month
- Shenzhen HK
- Credit Card PayPal
-
WDS-700 BGA Rework Station bga reballing laptop mobile phone repairs
-
WDS-700 BGA Rework Station bga reballing laptop iphone screen repair
-
Sales Agent Want ! Hot sale Auto BGA reballing station WDS-600 desoldering vacuum station
-
WDS-700 cell phone repair for all types mobile phones prices
-
WDS-700 BGA Rework Station bga reballing laptop repair iphone repair
-
Low Cost Laptop Motherboard WDS-700 mobile iphone repair
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Wisdomshow cell phone screen repair | Model Number: | WDS-700 cell phone screen repair |
| Voltage: | 220V | Current: | dependable | Rated Capacity: | 2500W |
| Rated Duty Cycle: | 100% | Dimensions: | L450*W470*H670mm | Weight: | 30kg |
| Usage: | Mobile phone (Mini) BGA/IC Rework and Repair | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
WDS-700 cell phone repair for all types cell phone screen repair
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.
How to separate BGA chip from motherboard?
How to replace a new BGA chip?
Repair steps:
1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering
bga reballing laptop repair
Parameter of WDS-700 cell phone screen repair:
| Place of Origin | Guangdong , China |
| Brand Name | Wisdomshow / WDS |
Moed Number | WDS-700 bga rework station price |
| Superior function | Soldering and desoldering BGA Chip/Mini IC |
More details Parameter of WDS-700 cell phone screen repair
1 | Superior function | Can create relevant temp.curves according to chips size |
2 | Power supply | AC 220V±10% 50/60Hz |
3 | Total power | Max 2500W |
4 | Heater power | Upper temp.zone 1200W,Down temp.zone 1200W |
5 | Electrical material | Driving motor+ smart ntroller+color touch screen |
6 | Temperature controlling | (high precision K-sensor)(Closed Loop),independent ntroller,the precision can reach ±1℃ |
7 | Locating way | V shape slot,PCB support jigs can adjust |
8 | PCB size | Max 140×160mm Min 5×5 mm |
9 | Applicable chips | Max 80×80mm Min 1×1 mm |
10 | Overall dimension | L450×W470×H670mm |
11 | Temperature Interface | 1 pcs |
12 | Weight of machine | 30KG |
13 | Color | Blue+White bga rework station price |
Full Specification of WDS-700 cell phone screen repair
»»» Independent 2 heating zones temperature control system
1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently. cell phone screen repair
2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;
4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.
»»» Precision optical alignment system
WDS-700 Using high definition and adjustable CCD color optical alignment system,beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 ” high definition LCD monitor. bga reballing machine iphone ic remove machine Mini bga rework station price
»»» Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
»»» Superior safety protection function
WDS-700 With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection. Temperature parameter having password protection to prevent any modification.Mini bga rework station price reballing machine cellphone repair machine Infrared mobile repair machine iphone repair machine
Operation Video:
Mobile phone for Samsung/iphone repair Expert: https://youtu.be/ZAdX3nH7g8Q
Packing & Shipping of WDS-700 cell phone screen repair
1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3. Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;
4. Good and professional after-sales service;
5. Give great discount to AGENCY to ensure agents profit.
Why WDS?
1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE ISO9001;
9. 100% QC inspect before shipment;
10. High quality & competitive price.
1.Hi mate, your best price and high purity product is so competitive in my country , this let me make much profit , my customers are really like it . cooperate with you is so wonderful ! thank you ! ---------Richard---Turkey
2.i have received my products , your packing is do discreet and perfect , it really amazed me .i will order more from you as soon as possible. thanks a lot. -----------Robet--Australia
3.i have cooperated with you for many times , your product quality is so great , that is why i still buy the products from you . thank you . ------------- Corentin ---Brazil
BGA Accessories:
If any question please send INQUIRY or CHAT with us ,
we will pleasure to service you !
skype: ivyzhou90
whatsapp+86 138 2520 9905
Now you can order freely!!!
We undestand buyers might be worried about ordering products from China.
Now our company have joined Alibaba Trade Assurance . By placing order through Alibaba, if the suppiler doesn't meet your contract requirements for on-time shipment or Pre-shipment product quality, may refund the payment as stated in your contract.
Now our Trade assurance Limit is up to 25000USD. You can check this information from wisdomshow.en..
Pls Contact me as below guide, we are glad to give you the best price!
