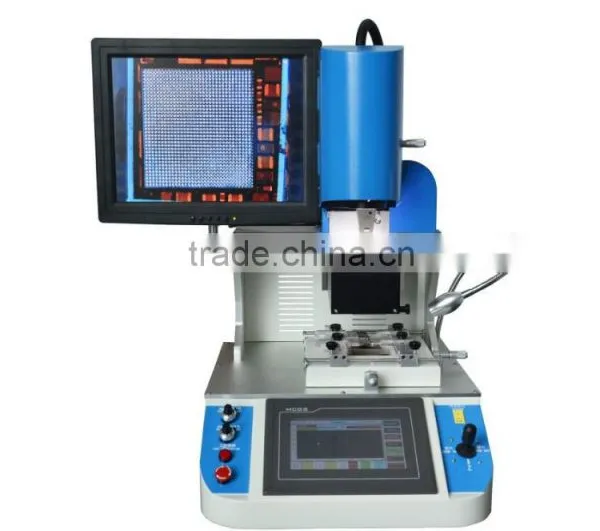

WDS-700 BGA Rework Station bga reballing laptop repair iphone repair

FOB Price

USD $1 - $3,200 / Set

1 Set(Min.Order)

Supply Ability 888 Set / Sets per Month
Port Shenzhen HK
Payment Terms:Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Wisdomshow iphone repair	Model Number:	WDS-700 iphone repair
Voltage:	220V	Current:	dependable	Rated Capacity:	2500W
Rated Duty Cycle:	100%	Dimensions:	L450W470H670mm	Weight:	30kg
Usage:	Mobile phone (Mini) BGA/IC Rework and Repair	Certification:	CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

WDS-700 BGA Rework Station bga reballing laptop repair iphone repair

Skype: ivyzhou90

Whatsapp+ 86 138 2520 9905

Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.

How to separate BGA chip from motherboard?
How to replace a new BGA chip?

Repair steps:
1)      Separate the BGA chip from mother board –we called desoldering
2)      Clean Pad
3)      Reballing or replace a new BGA chip directly
4)      Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5)      replace a new BGA chip - we called Soldering

Product Description

Parameter of WDS-700 iphone repair:

Place of Origin	Guangdong , China
Brand Name	Wisdomshow / WDS
Moed Number	WDS-700 bga rework station price
Superior function	Soldering and desoldering BGA Chip/Mini IC

More details Parameter of WDS-700 iphone repair

1	Superior function	Can create relevant temp.curves according to chips size
2	Power supply	AC 220V±10% 50/60Hz
3	Total power	Max 2500W
4	Heater power	Upper temp.zone 1200W,Down temp.zone 1200W
5	Electrical material	Driving motor+ smart ntroller+color touch screen
6	Temperature controlling	(high precision K-sensor)(Closed Loop),independent ntroller,the precision can reach ±1℃
7	Locating way	V shape slot,PCB support jigs can adjust
8	PCB size	Max 140×160mm Min 5×5 mm
9	Applicable chips	Max 80×80mm Min 1×1 mm
10	Overall dimension	L450×W470×H670mm
11	Temperature Interface	1 pcs
12	Weight of machine	30KG
13	Color	Blue+White bga rework station price

Full Specification of WDS-700 iphone repair

»»» Independent 2 heating zones temperature control system

1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently. iphone repair

2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

»»» Precision optical alignment system

WDS-700 Using high definition and adjustable CCD color optical alignment system,beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 ” high definition LCD monitor. bga reballing machine iphone ic remove machine Mini bga rework station price

»»» Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

»»» Superior safety protection function

WDS-700 With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection. Temperature parameter having password protection to prevent any modification.Mini bga rework station price reballing machine cellphone repair machine Infrared mobile repair machine iphone repair machine

Operation Video:

Mobile phone for Samsung/iphone repair Expert:

Packaging & Shipping

Packing & Shipping of WDS-700 iphone repair

1, Standard Export Wooden cases

2, Delivery in 2 workdays after payment confirm;

3, Shipping by TNT,DHL,FEDEX , or by air or by sea

4, Loading port: Shenzhen or Hongkong.

Our Services

1. Your inquiry will be replied in 24 hours ;
2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3. Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;
4. Good and professional after-sales service;
5. Give great discount to AGENCY to ensure agents profit.

Company Information

Why WDS?

1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;

2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;

3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;

4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;

5. 100% NEW from WDS factory;

6. Over 20 R&D engineers, with 10 year experience;

7. Over 100000 Global User;

8. All models approved CE ISO9001;

9. 100% QC inspect before shipment;

10. High quality & competitive price.
