Home > Products > RENTAL LED DISPLAY > HD LED TV P2.5 P3 LED Screen Panel Video TV P3

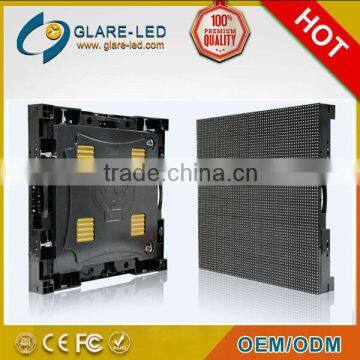

HD LED TV P2.5 P3 LED Screen Panel Video TV P3

Name: HD LED TV P2.5 P3 LED Screen Panel Video TV P3
Brand: Glare-led
Availability: InStock

FOB Price

USD $2,000 - $5,000 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Glare-led	Model Number:	Glare-LED display
Usage:	Outdoor	Tube Chip Color:	Full Color	Display Function:	Video
Pixels:	Other, 10mm,12mm,16mm,20mm,25mm	Screen Dimension:	customized

Packaging Details

Wooden box

Product Description

SMD2121 HD LED TV P2.5 LED display TV P3 LED Screen TV P4 LED Panel Video TV P3

Detail Description

Delicate Structure

- The display is light, trendy and features a feel of high technology.

- The TV is module designed and the structure framework is composed of different single modules;

- Each unit has new designed aluminum-cast shell that features lightness, high precision, quickness in heat dissipation, fine looking and convenience in installation.

- Display units are fixed by locking device after being put in order horizontally and vertically, then forming a large screen;

- Modules are bolting-connected to the framework, ensuring qiuck installation;

- Aftercompletion, a smiling-face image is formed on the back of the screen;

-It is light in weight but strong in quality: the framework is made of aluminum-alloy materials; the components for installation and connection are made of deep drawing aluminum sheets.

P3 indoor full color black pearl
Pixel Pitch:3 mm
Pixel configuration:RGB
LED type: 2121SMD black pearl
Pixels per sqm:111111 dots
Module size:192*96 mm
Brightness:≥ 1800cd/sqm
Scan method:1/16
Fresh rate:≥ 1200Hz
Grey Level:16bit

P4 indoor full color black pearl
Pixel Pitch43 mm
Pixel configuration:RGB
LED type: 2121SMD black pearl
Pixels per sqm:62500 dots
Module size:128*128 mm
Brightness:≥ 1500cd/sqm
Scan method:1/16
Fresh rate:≥ 1200Hz
Grey Level:16bit

P5 indoor full color black pearl
Pixel Pitch:5 mm
Pixel configuration:RGB
LED type: 3528SMD black pearl
Pixels per sqm:4000 dots
Module size:160*160 mm
Brightness:≥ 1400cd/sqm
Scan method:1/16
Fresh rate:≥ 1200Hz
Grey Level:16bit

P6 indoor full color 1/8 scan
Pixel Pitch:6 mm
Pixel configuration:RGB
LED type: 3528SMD
Pixels per sqm:27777 dots
Module size:192*96 mm
Brightness:≥ 2600cd/sqm
Scan method:1/8
Fresh rate:≥ 1200Hz
Grey Level:16bit

P7.62 indoor full color
Pixel Pitch:7.62 mm
Pixel configuration:RGB
LED type: 3528SMD
Pixels per sqm:17222 dots
Module size:244*122 mm
Brightness:≥ 1500cd/sqm
Scan method:1/8
Fresh rate:≥ 1200Hz
Grey Level:16bit

P10 indoor full color
Pixel Pitch:10 mm
Pixel configuration:RGB
LED type: 3528SMD
Pixels per sqm:10000 dots
Module size:320*160 mm
Brightness:≥ 1200cd/sqm
Scan method:1/8
Fresh rate:≥ 1200Hz
Grey Level:16bit

APPLICATION:

High resolution, can be used for high-end big screen TV, suitable fro interio home theatre system, compared with conventional TV, it has a larger screen, more bright beautiful color and more shocking display effect. I can be acted as a high-end indoor screens at the same time, used in the various types of indoor places, such as high-end conference rooms, families, halls, cinemas, theatres, lounge, stations and so on.

Electronic Display Solution for information release---Electronic Information Display

1. Electronic display information release municipal applications Profile

LED technology has accelerated the maturity of the application of LED display and spread, LED display angle, long life, rich in content and so on all enterprises and institutions to become the preferred platform for information dissemination.

Photoelectric TetraMin at home and abroad for many years been committed to providing customers with the best display products and solutions, with a wealth of project experience, first-class production equipment, strict management and control processes, a unique service system, the price of three-star and four - star quality, is willing to work with global partners to work together to promote wider use of LED screen and LED display technology.

Electronic Information Display in the municipal applications:

a. Administrative affairs, and enhance transparency in the work of government departments, the role played by public opinion.

b. Square screen to enhance the city image, and enriching people's cultural life.

c. Traffic screen, screen applications such as weather, it convenient for people to travel and live.

d. Environmental monitoring screen, you can improve the environmental awareness, social harmony to create a big family.

e. Information screen, simultaneous release of information enterprises, benefit the public.

2. Electronic Information Display Solution

3. Electronic Information Display System Description

The whole solution by software control systems and power distribution system, video, audio processing system, control system, LED display and other hardware peripherals, each solution of the system configuration in accordance with the different requirements of customers. The following system description is for reference only.

3.1 Software system illustration

The system is a general-purpose LED system control software, you can use to facilitate the control of the system by a local area network management of multiple computers within the LED device group, the system can simultaneously screen at the same time with asynchronous message-screen editing and playback can be will be a variety of different types of equipment to a unified management interface to help users more convenient for media editing and playback information.

The system control software from the media editor (editor) and media player software (display) is composed of two parts, they use the Client / Server approach to communications.

Editing software: for the operator to carry out all types of media player and play the contents of the edit control.

Play software: software for the unmanned operation can be automatically broadcast from the editing software to receive commands, and their wide range of computer control equipment.

4. Electronic Information Display Product features and advantages

We not only provide mounting brackets, but also offers a full range of LED display systems, including: control systems, power supply (outlet), software, accessories, installation of structural drawings and other services.

Box standardized design, so that could be applied to the same cabinet size shows that the requirements of the different pixels to make it more convenient to install advertising screens.

LED Box thinner, lighter, saving transport costs. unique waterproof box design, in line with the IP65 standard of protection can be installed directly outdoors.

LED display in the different climatic zones around the world use, the use of the temperature range of -30 ℃ ~ 60 ℃, the box we have a good corrosion resistance of the moisture, so products can be at the seaside or even high humidity and high salinity of the air environment. Outdoor LED display brightness higher than 6000cd/M2, applicable to different installation environment. In product design, we have been our design philosophy of energy saving and environmental protection. Intelligent controller, can adjust the brightness according to environmental brightness of the screen.

LED display solution provides centralized control of remote management. Control Center can be a multi-block control of LED advertising screen.

LED video control system with dual backup system, in the event of failure, customers can immediately switch to the backup system. Companies to provide customers with maintenance-related spare parts, spare parts are all modular design, ease of after-sales maintenance.

5. Electronic Information Display Product application

LED square screen

Build in near the public square, convey the city information effectively to improve the city image and enrich the culture life.

Electronic Traffic Reports Display

Information, the best platform for traffic guidelines

Electronic Weather Display

Timely meteorological information, such as weather conditions, emergency warning and aerial detection, enhance the city image and facilitate travel.

Chief Electronic Information Display Screen

Increase government transparency and effective public and a government with credibility, and improve government image.

Bank and stock Information Display

Timely business information, benefit the public.

Company Profile

Shenzhen Glare-LED Co., Ltd.

Shenzhen Glare-LED Co., Ltd is a highly scientific and technological enterprise, specializing in developing, manufacturing and selling LED display screens, LED gas price display, Led moving signs, LED tube, high power LED bulb. After the foundation of our company, we have devoted ourselves to the development and production of LED products. In the R&D department of our company, we have the first-class technological engineers in China. They have the strong ability of technique R&D. They also can develop and produce various and relevant products according to the different needs of our customers.

As a leading manufacturer and exporter of LED products in China, We always hold the producing belief of "we should be responsible for our customers, for the quality of our products, as well as for every staff". Thorough managing measures, strict quality testing procedures and highly sophisticated and fully automatic large-scale equipment are our important approaches for keeping the quality of our products and competitive price.

The area of our factory building is 2500 square meters, and we have more than one hundred workers, and several QC workers.

Our products have been exported to many countries and regions including the United States, Canada, Germany, Spain, France, Italy, Korea, Taiwan, HK, Japan, and Singapore. We supply our best service and competitive prices to our customers, and the best award from our clients is their long time cooperation with us. If you find any interesting item of our products, please don't hesitate to contact us. We'll always be at your service.
