Extrusions Aluminum Profiles
1. Details
1) Aluminum extrusion profile
2) Aluminum alloy: 6000 series
3) All kinds of surface treatment, such as milling finish, powder coated, anodizing finish of all colors
4) Guaranteed quality and good price
5) Good surface finish, no burr or dirt
2. material
Chemical Composition | |||||||||||
Si | Fe | Cu | Mn | Mg | Zn | Ti | Cr | Others | total others | ||
0.2-0.6 | M.0.35 | M.0.1 | M.0.1 | 0.45-0.9 | M.0.1 | M.0.1 | M.0.1 | M.0.05 | 0.15 | ||
Mechanical Property | |||||||||||
Yield Strength | Tensile Strength | Extensibility | Hardness | ||||||||
110Mpa | 160Mpa | 8% | 8HW | ||||||||
3. Aluminium profiles(classification according to surface treatment requirements)
1) Anodizing profiles
2) Electrophresis profiles
3) Powder coating profiles
4) Wood finish profiles
5) Polished profiles
6) PVDF coating profiles
1 | Business type: | Manufacturer |
2 | Standard: | GB 5237-2008 |
3 | Product series: | Aluminium profile for building material and industrial materail |
4 | Color | Any color customer required |
5 | Payment term: | T/T, L/C at sight |
6 | Surface treatment: | Anodizing, Powder coating, electrophoresis, wooden finish |
7 | Specification: | A. Alloy: 6063, 6061 |
B. State: T5 | ||
C. Length: 1m-7m | ||
D. Normal Anodizing thickness: 8-12 micro | ||
E. Normal powder coating thickness: 60-100 micro | ||
F. Tensile strength: ≥ 16 mpa | ||
G. Yield strength: ≥ 110 mpa | ||
H. Extensibility: ≥ 8% | ||
I. Hardness(HW): ≥ 8 | ||
8 | Packing: | Kraft paper, EPE Fram, Shrink film, Composite paper |
9 | MOQ: | 1*20’ FCL |
10 | Delivery time: | 15-30 days if need new mould, 7-20 days if mould is ready |
11 | Normal order sequence: | 1. Confirm the drawings, colors and price; |

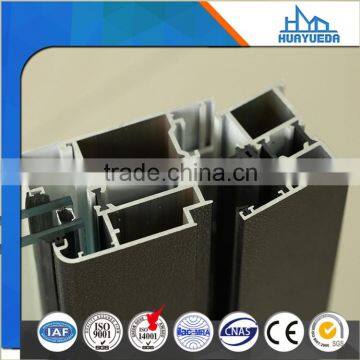

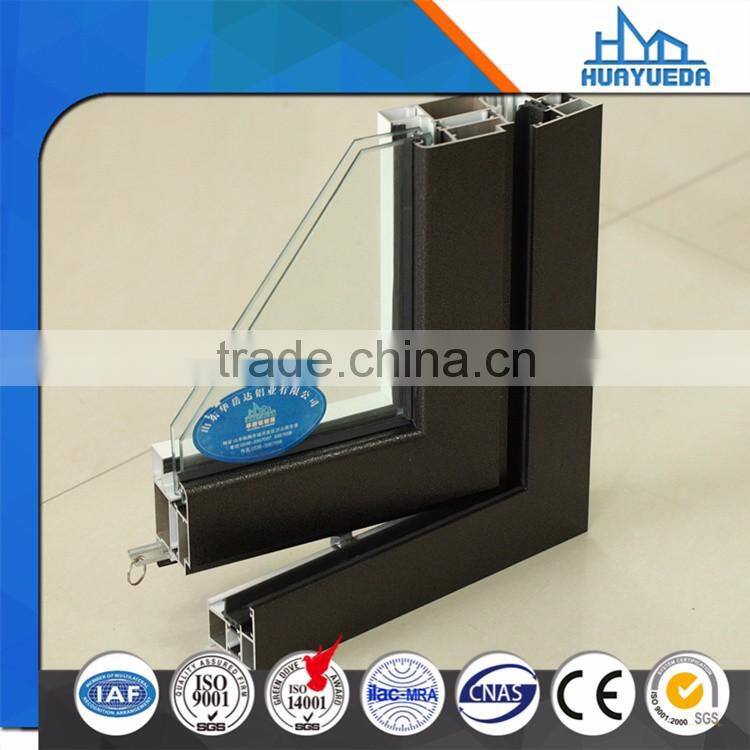

Details photos for one casement window profiles popular in South Africa
Quality control equipment list
Model /Description | Qty |
Mitutoyo caliper 0-150mm | 22 |
Mitutoyo Didital caliper 0-500mm | 3 |
Mitutoyo micrometer 0-25mm | 12 |
Mitutoyo micrometer 25-50mm | 6 |
Meter ruler | 20 |
Universal angle meter | 6 |
Filler gauge | 6 |
Pin gauge | 100 |
Thread gauge | 40 |
Coating thickness gauge | 4 |
Glossiness lustrousness gauge | 2 |
Harden tester | 4 |
Abrasion tester | 2 |
Block gauge | 180 |
Color tester | 4 |
Salt spray tester | 2 |
Drop tester | 2 |
High & low temperature tester | 3 |
Thermal tester | 2 |
Air flow tester | 1 |
Thermal resistance tester | 6 |
1. OEM and ODM service supplied;
2. Surface treatment and aluminum profiles drawing are customized;
3. Trail order can be made as customer's requirement;
4. New Molds will be made according to customer's drawing for free if the quantity is more than 5 tons for most of products.
5. Any problem will be replied by email within 24 hours, or make tel. call any time in 24 hours everyday and 7 days every week.
Certifications
Customer and Exhibition
Company Photos
1. Which kind of surface treatment can you do?
Any surface treatment you required can be did in our factory, including anodizing, eletrophresis, powder coating, wooden grain, etc.
2. Can you produce aluminum profiles by drawing?
Yes, we can. Huayueda has professional designer and engineers to discuss customers' drawing and make solution for every possible customers.
3. Do you supply OEM or ODM service?
Yes, we do. Huayueda has annual capacity for about 100,000.00MT with 20 sets extrusion production lines. We have three owned brand ourselves, and can supply OEM and ODM service for cusomter if need.
4. Which certificate do you have for this products?
We have passed ISO9001:2008, ISO14001:2004, and CE and any certificate can be made within two weeks to one month. Our quality is good, and it just need time to start these certificate work.
5. Which color can you make for the aluminum profiles?
Color for aluminum profiles is customerised for you, you can tell us the international color No. or give us sample, we will make the right one for you.
6. What is the delivery time if I make order?
The delivery time is about 10-20 days if the mould already had, but it will take 15 to 30 days if the mould is new by your new drawing.
