Home > Products > Water Pump > Good Performance Cutting Sewage Water Motor Pump

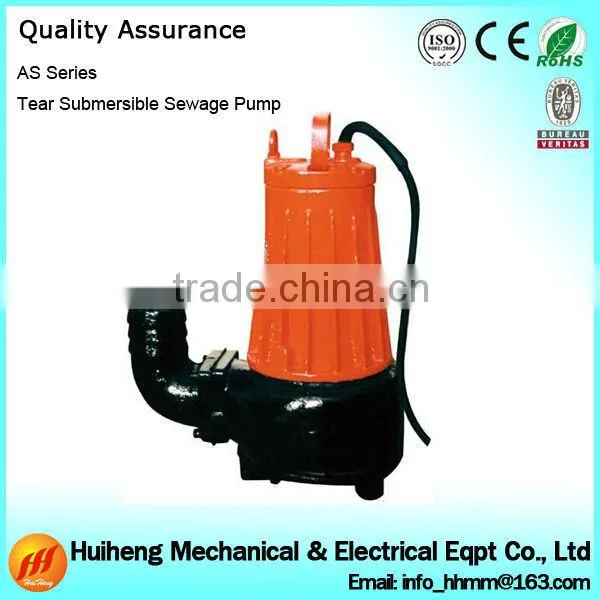

Good Performance Cutting Sewage Water Motor Pump

FOB Price

USD $1 - $1,000 / Set

100 Sets(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Guangzhou
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	HH	Model Number:	AS Series
Theory:	Centrifugal Pump	Structure:	Multistage Pump	Usage:	Water
Power:	Other, Electric, 1.1 - 7.5kW	Standard or Nonstandard:	Standard	Fuel:	Diesel
Pressure:	Low Pressure	Application:	Other, Sewage, Sewage with solid and fiber, Dirty and sticky liquid

Packaging Details

Wooden Case.

Product Description

Introduction:

Water motor pump is developed with advanced technology from Germany.

It is suitable for conveying liquid containing solid, fiber, and particularly dirty, sticky and slippery liquid.

All AS pumps are fitted with tearing part. It can tear the fiber, bag, belt, grass or cloth and then throw them out.

It has perfect performance when transfering sewage water.

Features:

1. Advanced technology, powerful sewage discharge, no jam.

It can easily work with φ30-φ80mm solid particle.

2. The tearing mechanism can tear and cut off the fiber, then discharge it smoothly, without the need to install a filter on the pump.

3. Reasonable design and small motor power can save the energy effectively.

4. Sealed with the latest mechanical materials, the pump can operate continuously for over 8000 hours.

water motor pump

5. Compact structure, easy to mov and install.

It can reduce the project cost without the construction of pumping stations.

6. It can be used within the head range. The motor will not overload.

7. Float ball can change according to the required water level. It can automatically control the start and stop. There is no need for manual custody.

8. Double guide rail automatic mounting system.

It is easy to install and maintain You don't need to go into the sewage pit.

9. Fully automatic control box.

It can prevent leakage and overload. It improves the safety and reliability of the product.

Application:

1. Convey sewage and dirt with particles for industrial and urban.

2. Be able to effectivily pass pump's diameter of 5 times of fiber material and pump's diameter of about 50% of the solid particles.

Model List:

Model	Flow (m3/h)	Head (m)	Power (KW)	Speed (r-min)	Voltage rating (V)	Inner diameter(mm)
AS10-2W/CB	15	4	1.1	2850	220	76
AS10-2CB	15	4.5	1.1	2850	380	76
AS16-2CB	29	7.6	1.5	2850	380	76
AS30-2CB	42	11	3.0	2850	380	76
AS55-2CB	45	13	5.5	2900	380	127
AS55-4CB	100	7.5	5.5	1450	380	152
AS75-2CB	60	18	7.5	2900	380	1278
AS72-4CB	145	10	7.5	1450	380	152
AV14-4	22	5.8	1.5	1450	38	76
AV55-2	30	20	5.5	2900	380	76
AV75-2	30	25	7.5	2900	380	76

Please contact me for more models of water motor pump.

Parameters:

Diameter	80 - 150mm
Flow	10 - 150m³/h
head	2 - 25m
Power	1.1 - 7.5kW
Working Pressure	≤0.6Mpa
Medium Temperature	≤60℃
Material	HT200

Packaging & Shipping

Shipping:

By sea, by air.

Packing:

Wooden Case.

Our Services

1. Check before shipping.

2. Reply in 12 hours.

3. Professional team.

4. Factory price and good quality.

5. Excellent after-service.

6. OEM service.

Company Profile

Guangzhou Huiheng Mechanical And Electrical Equipment Co., Ltd.

Guangzhou Huiheng Electrical & Equipment Co., Ltd. is a leading company which specializes in manufacturing the Mechanical Equipment, Hydraulic Equipment, Pump, Ring Gauge and Computer Accessories. Our company establishes in 2012, and enjoys great reputation in the world. The company is located in the center of Guangdong, Guangzhou which is only 1 hour driving to the Guangzhou Baiyun airport.

Our company is divided into the following divisions:
The Chemical Machinery Production Division: focusing on design, manufacture and installation of fine chemical industry, light industry, rayon, plastics and packaging equipment. We have the combination of a large number of experienced professional and technical personnel. The main products are various types of reactors, condensers and storage tanks; kneader, a planetary machine, dispersing machine power mixer and press material filling machine; the high-speed disperser, environmental protection equipment and other non-standard equipment.

The Industrial and Agricultural Pumps Division: from design, casting, machining to assembly, professional development of various types of industrial, agricultural pumps. The main products are NS, FSR series self-priming centrifugal pump, CB series centrifugal pumps, SU series of high-performance self-priming centrifugal pump, HW series mixed flow volute pump, PW, PS, PQ Series sewage sediment pump, BPZ self-priming sprinkler pump, PL series mud pump, YZ series axial flow pump and other products. The annual output of 400,000 sets of various types of pumps, widely used in agricultural irrigation, industrial water supply and drainage, mining and construction projects.

The Precision Measuring Pools Production Division, the advanced equipment, professional designers and technical staff. The main products are Standard and non-standard limit ring gauge and plug gauge. All kinds of beta gauge, keyway plug gauge, Taper ring Plug, Various fixture, tooling fixture, all kinds of worm, mould rod, mandrel shaft.

The Electronic Production Division: With the engineering department, mold department, injection department, printing department, SMT placement, production assembly, QC, etc., We have a lot of heavy machinery and mold production equipment. USB charging series of international and business travel, the structural design of compact, high-quality, all products get CE, RoHS, FCC, C-Tick certification, some products pass SAA by Australia and Japan PSE certification. From product design, electronics R & D, mold making, plastic injection molding, product Logo printing, electronic components SMT placement, assembly, aging testing, packaging, and other one-stop production process, high production speed and efficiency, fully able to meet customer delivery period.

Our company introduced the advanced technology and imported advanced equipment to product our machine.Currently, our machine is already exported to America, Italy, Australia, Turkey, Canada, France and 20 other countries and regions, Our Company has always focused on research, development and innovation new product. Therefore, our company is your best choose.

Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefilts.We welcome potential buyers to contact us.
