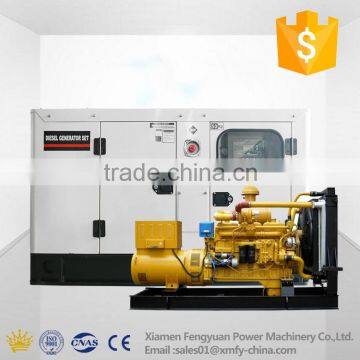

Manufacturer Competitive Price 150kw 187.5kva Silent Type Soundproof Diesel Generator Price List
US$ 9,600 - 9,950
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Shangchai
Model Number:
GF-150
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Turbo Charging Soundproof Big Power 812kva 650kw Generator Set for Sale by China EngineUS$ 51,000 - 52,000MOQ: 1 Set -
Soundproof 700kw 875kva Diesel Power Generator With 100% Copper Brushless AlternatorUS$ 59,999 - 60,500MOQ: 1 Set
-
Wholesale Weichai 24kw 30kva Diesel Generator for Sale Turbocharging With 4 CylinderUS$ 1,550 - 1,700MOQ: 5 Sets
-
Portable 24kw 30kva Small Power Diesel Generator Soundproof by China Top Brand WeichaiUS$ 2,700 - 2,850MOQ: 5 Sets
-
High Quality Diesel 6 Cylinders Engine by Shanghai Diesel 650kw 812kva 60HZUS$ 46,200 - 47,888MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Shangchai
Model Number
GF-150
Output Type
AC Three Phase
Speed
1500rmp
Frequency
50/60HZ
Rated Power
150kw/187.5kva
Rated Voltage
400V/230V Adjustable
Rated Current
270A
Manufacturer competitive price 150kw 187.5kva silent type soundproof diesel generator price list
| Genset Information | |||
| Model | GF-150 | Net dimensions (mm) | 2400*900*1550mm |
| Prime Output(kw/kva) | 150kw/187kva | Rated current(A) | 270A |
| Gross weight (kg) | 2300kg | Net weight (kg) | 2200kg |
| Rated voltage(V) | 400V/230V | Noise (dB) | 100dB(A) |
| Fuel Comsuption (g/kwh) | 225.8g/kwh | Frequency (HZ) | 50HZ/60HZ |
| Steady voltage adjusting rate | ≤±1% | ||
| Transient voltage regulation | +20~--15 % | ||
| Voltage settling time | ≤1s | ||
| Steady State rate adjustment frequency | ≤±1% | ||
| Frequency fluctuation rate | ≤±0.5% | ||
| Transient frequency regulation | +10~-7% | ||
| Frequency recovery time | ≤3s | ||
| Generator configurations | |||
| Engine Brand: | Shangchai | Fuel Injection | Direct Injection |
| Engine Model: | SC7H230D2 | Bore (mm) | 105*124mm |
| Intake System | Turbo charging | Cylinder No. | 6/L |
| Cooling method | Closed circulating water cooling | Speed | 1500rpm |
| Compression Ratio | 16:01 | Governor | 110% |
| Starting mode | DC24V electrical starting | Speed adjustment mode | Electronic speed control |
| Alternator configurations | |||
| Alternator Brand: | Fengfengsheng | Protection Grade | IP22 |
| Alternartor Model: | TFW-150 | Connect method | Three phase four wire type y connection |
| Rated output (kw/kva) | 150kw/187kva | Excitation method | AVR(Automatic voltage regulator) |
| Rated voltage(V) | 400V/230V | Frequency (HZ) | 50HZ/60HZ |
| Insulation Grade | H Class | Power Factor | COS=0.8 |
