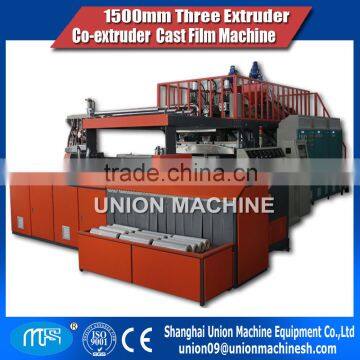

1500mm three extruder co-extrusion 3 layer stretch film machine
- 100 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
1500mm three extruder auto load cast film machine stretch film extruder
-
1500mm single extruder cast stretch film manufacturing machine
-
1000mm single extruder stretch film machine price
-
1000mm single extruder auto load stretch film making machine
-
1000mm double extruder 2 layer co-extrusion cast stretch film machin
-
1000mm auto load 2 layers co-extrusion cast stretch film manufacturing machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Screw Design | Double-screw | |
| Automatic Grade | Fully Automatic 3 layer stretch film machine | Place of Origin | Shanghai, China | |
| Brand Name | UNION MACHINE | Model Number | MS500-MS2000 | |
| Voltage | 220V/380V/415V/440V | Power(W) | 30KW-320KW 3 layer stretch film machine | |
| Dimension(L*W*H) | CAPACITY | Weight | 4000KG-16000KG | |
| Certification | CE,ISO,CIQ,CCC | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Video is just for reference, final machine will be different to required details.
Inquiry Tips for Customer:
1) The stretch film machine is available for LLDPE
2) What is your required film Width?
3) What is your required film Thickness?
4) What is your required Co-extrusion type?(single,double or three layers co-extrusion)
Parts Details:
This machine set is used for producing LLDPE stretch film, if the machine adopts double screws, the two hoppers should use different type of material, one side of the extruded stretch film is adhesive and the other side is normal. It is widely used for packing architecture and hardware parts etc.
1. Screw and cylinder are all made of 38CRMOALA alloy and treats by nitrogen. It has an advantage of corrosion resistance and endurance etc.
2. The cooling device adopts cycle water cooling; provide the best transparent effect of the stretch film.
3. Take-up equipment adopts with friction type rewinding, and equipment with edge correcting device to ensure the quality.
If produce the single-side sticky products, mixed the LLDPE, proportional high pressure polyethylene and other assistant material equality, then put them into two extruder’s separately. The material will be mixed, and plasticized in the extruder. Then it could be compound extruded by T-type coat hanger compound mould. Then production could be haul-off, cooling and forming. The slitter edge could be cut down by the slitter edge cutting device, and the slitter edge could winded by the winder. Finally, we will get the final tidy products .
Characteristics:
1. Screw and cylinder are all made of 38CRMOALA alloy and treats by nitrogen. It has an advantage of corrosion resistance and endurance etc.
2. The cooling device adopts cycle water cooling; provide the best transparent effect of the stretch film.
3. Take-up equipment adopts with friction type rewinding,equipment with edge correcting device to ensure the quality.
Model | MS-500 single layer | MS-500 double layer | MS-1000 single layer | MS-1000 double layer |
Diameter of screw | φ55mm | φ55mmx2 | Φ70mm | Φ55mm-Φ70mm |
L/D | 30:1(L/D) | 30:1(L/D) | 30:1(L/D) | 30:1(L/D) |
Width of Die head | 650mm | 650mm | 1250mm | 1250mm |
Width of film | 500mm | 500mm | 1000mm(500mmx2rolls) | 1000mm(500mmx2rolls) |
Thickness | 0.013-0.05mm | 0.013-0.05mm | 0.013-0.05mm | 0.013-0.05mm |
Output | 55kg/h | 100kg/h | 90kg/h | 120kg/h |
Structure of film | -- | A/B | -- | A/B |
Design line speed | 50-100mm/min | 50-100mm/min | 50-120mm/min | 50-120mm/min |
Total power | 30kw | 45kw | 70kw | 90kw |
Machine weight | 7.8T | 10.6T | 12.6T | 25.8T |
Overall dimensions | 7x4x3m | 10x4x3m | 10x4x3m | 10x4x3m |
Power supply | 220V/380V/415V/440V | 220V/380V/415V/440V | 220V/380V/415V/440V | 220V/380V/415V/440V |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Model | MS-1000 three layer | MS-1500 single layer | MS-1500 double layer | MS-2000 three layer |
Diameter of screw | φ55mmx2 - φ70mm | Φ90mm | Φ70mm – Φ90mm | Φ90mm - Φ70mmx2 |
L/D | 30:1(L/D) | 30:1(L/D) | 30:1(L/D) | 30:1(L/D) |
Width of Die head | 1250mm | 1800mm | 1800mm | 2350mm |
Width of film | 1000mm(500mmx2rolls) | 1500mm(500mmx3rolls) | 1500mm(500mmx3rolls) | 2000mm(500mmx4rolls) |
Thickness | 0.013-0.05mm | 0.013-0.05mm | 0.013-0.05mm | 0.013-0.05mm |
Output | 140kg/h | 150kg/h | 180kg/h | 200kg/h |
Structure of film | A/B/C | -- | A/B | A/B/C |
Design line speed | 50-140mm/min | 60-150mm/min | 60-150mm/min | 60-150mm/min |
Total power | 110kw | 130kw | 150kw | 180kw |
Machine weight | 8T | 10.6T | 12.6T | 25.8T |
Overall dimensions | 10x4x3m | 12x4.5x3m | 12x4.5x3m | 10x4x3m |
Power supply | 220V/380V/415V/440V | 220V/380V/415V/440V | 220V/380V/415V/440V | 220V/380V/415V/440V |
Main Configuration:
*Some configuration can be replaced according to requirement.
Illustration of Machine:
Stretch Film Production Line:
Shanghai Union Machine Equipment Co., Ltd. Our Company produce the Film blowing machine, Plastic recycling granulator machine, Cast stretch film machine, Bubble film machine, Printing machine, Bag making machine, which are widely used in plastic packaging industry, agricultural green house,plastics recycling industry. Our products draw on foreign technology, the product quality, energy saving and the convenient performance have been better and stable after several improved, and was deep favorite with customer. Our products are currently working with foreign distributors, and seek common development. Products are widely sale in domestic and exported around the world to Southeast Asia, South America and Africa.
