Mini chip GSM GPRS GPS Tracker TK-102B For Car Pet children Realtime Online Tracking TK102B tracker

Mini chip GSM GPRS GPS Tracker TK-102 For Car Pet children Realtime Online Tracking TK102B tracker

Product Description:

New Mini Global GPS Tracker for everyone with compact design, convenient SMS functions and the latest in GPS tracking technology, it is the one all-purpose tracker for everyone needing to track their valuable asset and loved ones

Features:

1. Build-in GPS personal locator
2. High sensitivity, new technology MTK GSM CHIP and Switzerland UBLOX GPS chipset
3. Protect child / the old / the disabled / pet etc
4. Locate the locator holder by the mobile phone via SMS
5. This has a built-in Mic and can be used as a "silent listener" without letting the carrier know that the conversation has been listened.
6. Powerful magnet + waterproof design, can be adsorbed in the hidden place of car
7. SOS button send out exact location for immediate rescue/action.
8. Compact, easy to carry, and comes with a magnetic battery cover to attach to any steel object
9. Indication changes when power is on / off, the lamp twinkles means that there is GPS signal

10.Only support 2G(GSM) SIM card
11. Support Micro SD Card recording

Specifications

• ProductDesctription: Mini Global GPS Tracker
• GPS Chip: UBLOX CHIP
• Network: GSM / GPRS
• GSM Frequency: 850 / 900 / 1800 / 1900 MHz
• GSM/GPRS Module: MTK 6260
• GPS Accuracy: 5 M
• Time to First Fix:
  -Cold status: 45s
  -Warm status: 35s
  -Hot status: 1s
• Battery: Rechargeable 3.7 V Li-ion Battery
• Working Temperature: -20 to 55
• Humidity: 5% to 95% non-condensing
• Altitude Limit: 18,000 meters (60,000 feet) max
• Velocity Limit: 515 meters/second (1000 knots) max
• Acceleration Limit: Less than 4g
• Dimension: 64 (L) x 46 (W) x 17 (H) mm
• Weight: 50 g

How to Use:

1) Please Charger 8-10hours when you get the machine at first time.

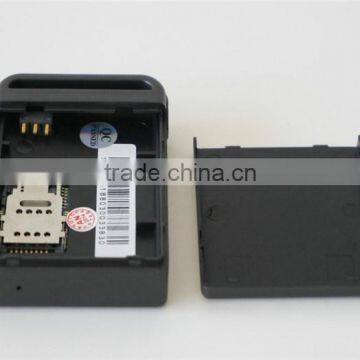

2) Please put the GSM sim card into the tracker,The SIM card must the 2G GSM 850/900/1800/1900MHz sim card,If you use other sim card maybe some fuction not working.Please care first.Also the Sim card must with Enough money and GPRS service.

3) Now You push the turn on button more than 20second,that when the blue LED with 3second light up and 1 second light off,That as this flash,That mean power on,Then plug put your gps tracker out your window or outdoor,now you make first call to gps tracker,Then you maybe get 0000 location,but please waitting 10-15 mins,then will be get the gps signal,then you call again,that you will get the right address.

4) Put your GPS outdoor,The GSM sim card signal and gps signal all best place.

5) After 5-10mins you can try to send the order start to setting or call gps sim card number to get the reply.

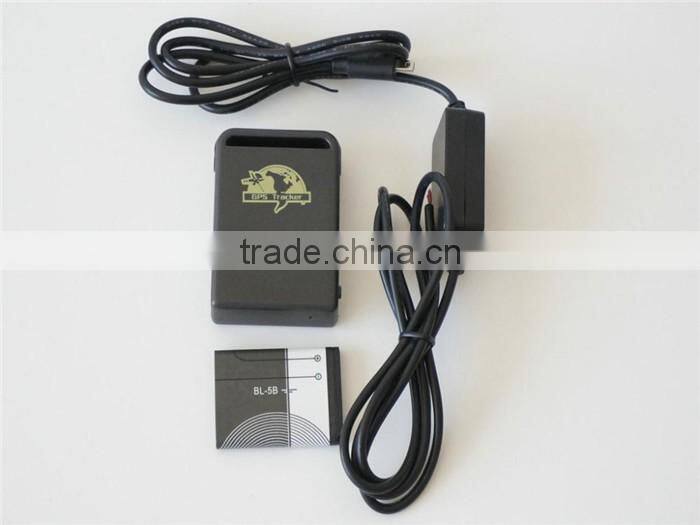

Package including:
1 * GPS Tracker
1 * battery

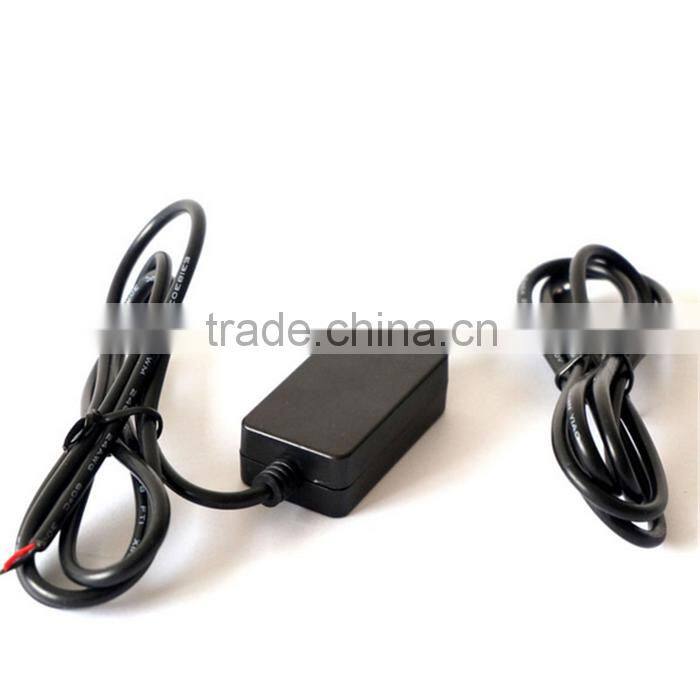

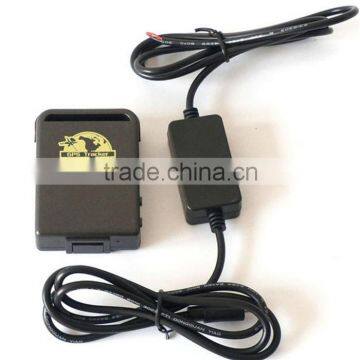

1 * 12-24V Car Battery Charger
1 * CD
1 * User manual

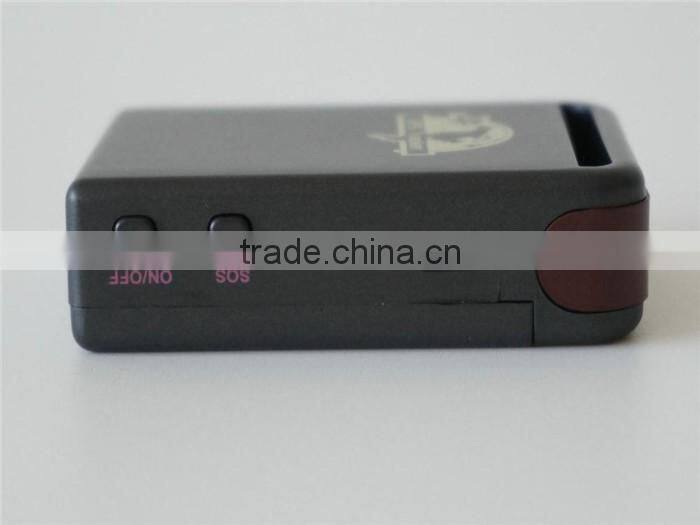

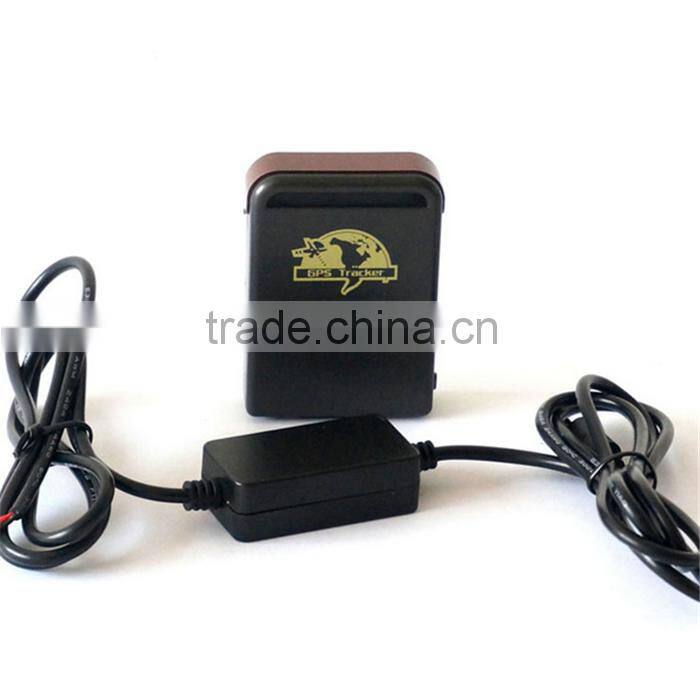

Product Show:
