304 stainless steel coil stainless steel plate 304 with CE certificate

FOB Price

USD $2,000 - $2,400 / Ton

1 Ton(Min.Order)

Supply Ability 1000 Ton / Tons per Month
Port Shanghai or any port of China
Payment TermsT/T L/C D/P D/A PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Grade	300 Series	Standard	ASTM, AISI
Length	1000-6000mm	Thickness	0.3-100mm
Width	400-2000mm	Place of Origin	Zhejiang, China
Brand Name	baosteel tisco lisco zpss	Model Number	304
Type	Plate	Application	Elevator, kitchen utensils and appliances, water tank, industry...
Certification	ISO

Product Description

for inquiry please call 86 15261579158 mail :yolanda.na(@)

amy(@)

sample free 0.6mm stainless steel sheet best supplier

Product Description

Type 304 Stainless Steel is the most widely used of the austenitic (chromium/nickel) stainless steels. In the annealed condition it is essentially non-magnetic and becomes slightly magnetic with the application of cold work. These alloys represent an excellent combination of corrosion resistance and fabricability.

Product Forms

Sheet,Coil, Strip

Specifications

Type 304 – ASTM A240, ASTM A666, AMS 5513

Typical Applications

Chemical equipment and piping, heat exchanger components, dairy and food handling equipment and utensils, cryogenic vessels and components, architectural and structural applications exposed to non-marine atmospheres

Chemical Composition

Chemical Composition: (Per ASTM A240)

Element	Type 304	Type 304L
Carbon	0.07Max	0.030 Max
Manganese	2.00Max	2.00 Max
Sulfur	0.030 Max	0.030 Max
Phosphorus	0.045 Max	0.045 Max
Silicon	0.75 Max	0.75 Max
Chromium	17.5 to 19.5	18.0 to 20.0
Nickel	8.0 to 10.5	8.0 to 12.0
Nitrogen	0.10 Max	0.10 Max

Mechanical Propertie

Mechanical Properties: (Per ASTM A240, A666)

Type	Yield Strength 0.2% offset (KSI)	Tensile Strength (KSI)	% Elongation(2" Gauge length)	Hardness Rockwell
304 Ann	30 min.	75 min.	40 min.	HRB 92 max.
304 ¼ Hard	75 min.	125 min.	12 min.	HRC 25-32 (typical)
304 ½ Hard	110 min.	150 min.	7 min.	HRC 32-37(typical)
304L Ann	25 min.	70 min.	40 min.	HRB 92 max.
304L ¼ Hard	75 min.	125 min.	12 min.	HRC 25-32 (typical)
304L ½ Hard	110 min.	150 min.	6 min.	HRC 32-37 (typical)

Physical Properties: (annealed)

		304 & 304L
Density (lb./ in^2) @ RT		0.29
Modulus of Elasticity in Tension (psi x 10^6)		28.0
Specific Heat (BTU/o F/lb.)	32 to 212 oF	0.12
Thermal Conductivity (BTU/hr/ft^2/ft)	212oF	9.4
	932oF	12.4
Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F)	32 to 212oF	9.2
	32 to 600oF	9.9
	32 to 1,000oF	10.2
	32 to 1,200oF	10.4
Electrical Resistivity (micro ohms - cm)	at 70oF	72
Melting Point Range (oF)		2550 to 2650
Oxidation Resistance - Continuous Service(oF)		1,650
Oxidation Resistance - Intermittent Service(oF)		1,500

Products/Service

Our products are according to International Standard AISI/SUS(JIS). Our main products are focusing on Cold Rolled Stainless Steel Coils/Sheets. To be able to meet per request from the customers, we are equipped with machineries in house which makes delivery on time with material ready for use and manufacture when arrived at your door.

Type	Stainless steel plate/Stainless steel sheet/stainless steel coil/stainless steel strip
Size/thinckness	0.3mm-100mm
Widthness	400mm-3000mm
Length	1000mm-6000mm or as customer's requirement coils
Brand name	LISCO TISCO BAOSTEEL ZPSS AND OTHER WELL KNOWN MILLS
Standard	ASME, ASTM, EN ,BS,GB,DIN, JIS etc
Material	201,202,301, 304,304L,316,316L,317L,321,309s,310S,410,410S,420,430,904L etc
Application range	Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy, Medical equipment, fertilizer etc
Edge	Mill Edge/ Slit Edge Round Edge is available upon request
Surface treatment	2B,BA,NO.4,NO.8,8K,mirror,checkered,embossed,hairline,sand blast, brush, etching, vibration, etc ...
Sheets Packing	Export Packing with waterproof and corner protection on Skid or Pallets.
Strips Packing	Waterproof packing with Eye to Sky or Eye to Horizontal.
Film protection coating	Black/White and Blue Film Coating is also available.
Delivery time	about 10-15 days after payment or as contract
Quality	prime
Productivity	1000 tons/month
Note	We can produce other standard and specifications as the customers’ special requirements.

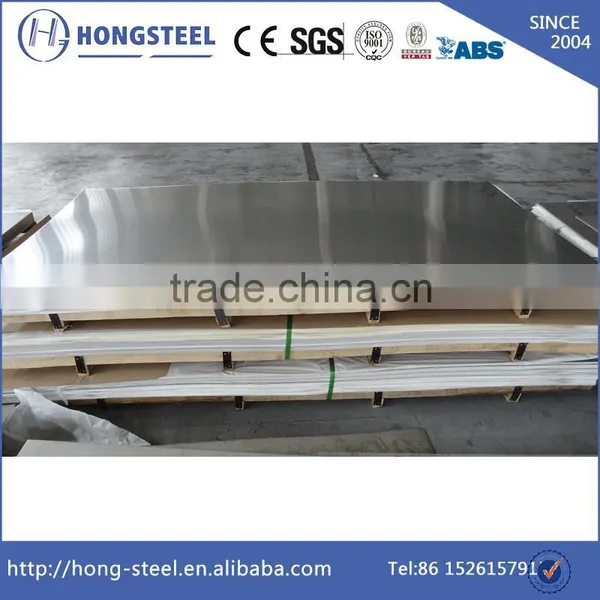

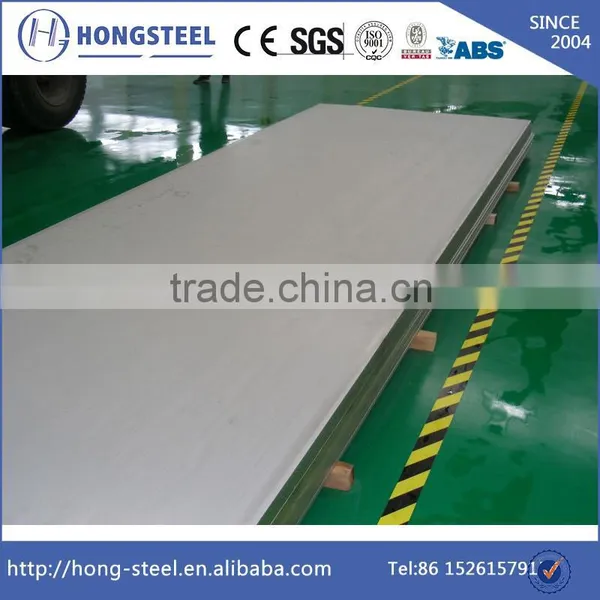

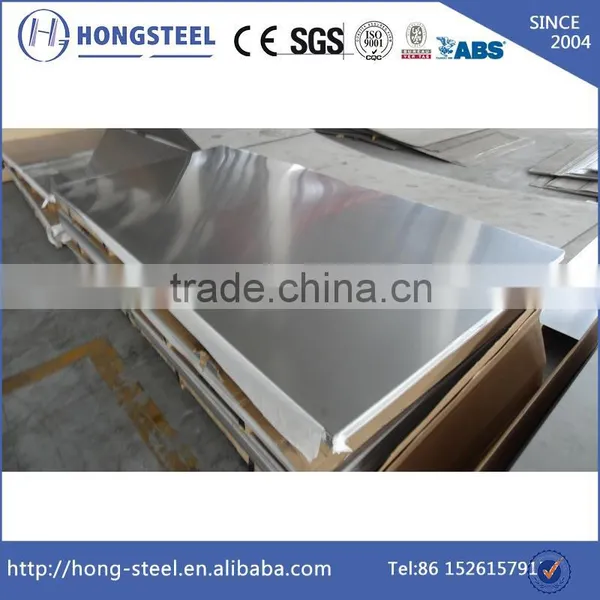

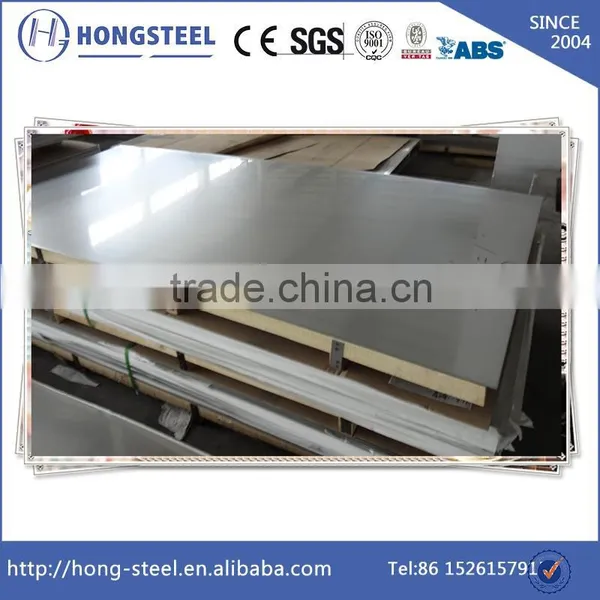

Product pictures:

Packaging & Shipping

Packaging Detail:

Standard export package with water proof paper+metal pallet+angle bar+steel strip, or as required.

Delivery Detail:

10-15 working days

Loading pictures:

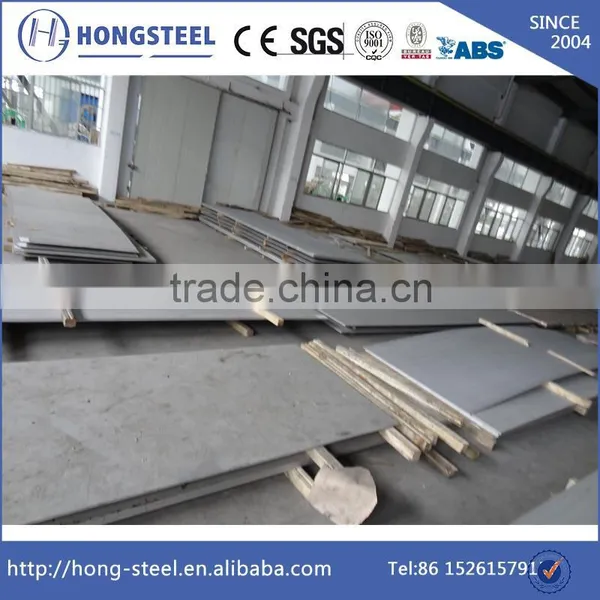

Equipment Pictures:

Our expertise has enable us to ensure finest

Stainless Steel Sheet 304 304L

by subjecting our products to stringent quality control measures during each stage of production and while dispatch. We sincerely welcome all relevant friends all over the world to come for visit and cooperation!
