Prefab Branch Cable Cu Conductor XLPE Insulated PVC Sheathed Branch Power Cable/cabel

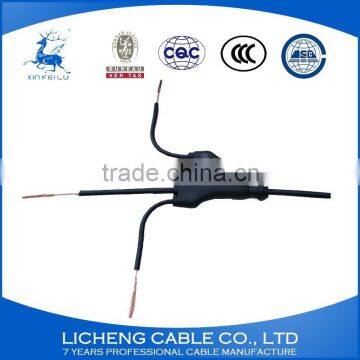

Prefab Branch Cable Cu Conductor XLPE Insulated PVC Sheathed Branch Power Cable/cabel photo-1

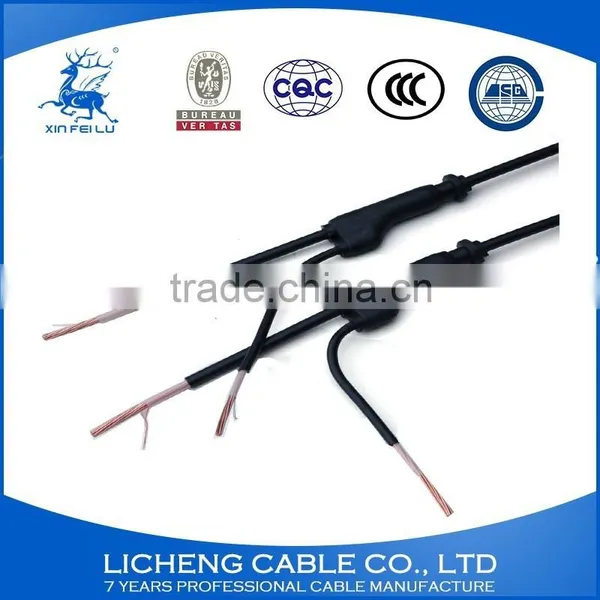

Prefab Branch Cable Cu Conductor XLPE Insulated PVC Sheathed Branch Power Cable/cabel photo-2

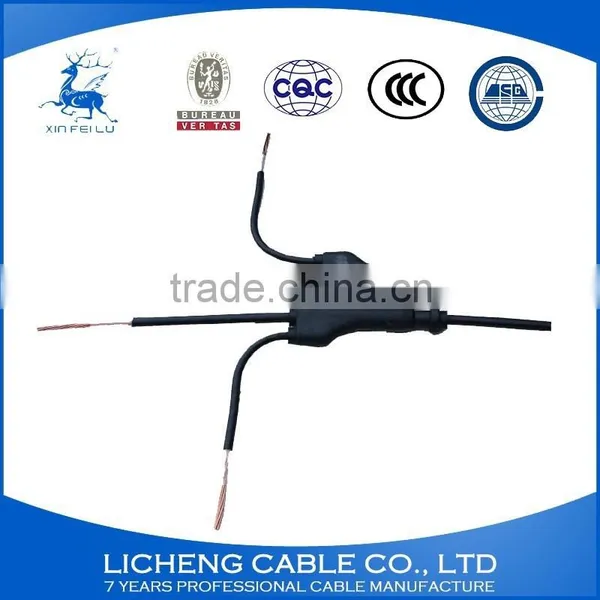

Prefab Branch Cable Cu Conductor XLPE Insulated PVC Sheathed Branch Power Cable/cabel photo-3
US$ 0.1 - 99 MOQ: 200 Meters
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Xinfeilu
Model Number:
Branch cable50, FZ-VV, FZ-ZRVV,FZ-NHVV,FZ-YJV,FZ-ZRYJV,FZ-NHYJV
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Guangdong Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name Xinfeilu
Model Number Branch cable50, FZ-VV, FZ-ZRVV,FZ-NHVV,FZ-YJV,FZ-ZRYJV,FZ-NHYJV
Insulation Material XLPE
Type Low Voltage
Application Industrial
Conductor Material Other, Copper, copper
Jacket Other, PVC, PVC



Specification

 1.bare conductor
 2.good package
 3.quick delivery
 4.CCC,CQC,ISO certificates
 5.cable manufacture



Plastic insulated prefab branch cable 0.6/1KV

Prefab Branch Cable Cu conductor XLPE insulated PVC sheathed branch power cable/cabel

Operating Characteristics



rated voltage is 0.6/1KV



Max.operating temperature of conductor:

PVC, PE insulated aerial cable: 70°c

XLPE insulated aerial cable: 90°c



Max. short-circuit temperature of the conductor should not exceed:

PVC insulated aerial cable: 160°c

PE insulated aerial cable: 130°c

XLPE insulated aerial cable: 250°c



The bending radius of cable are not less than 15 times the diameter of cable;

Its flame retardant properties comply to the requirement of  GB/T12706.1-2008,IEC



Prefab Branch Cable Cu conductor XLPE insulated PVC sheathed branch power cable/cabelPrefab Branch Cable Cu conductor XLPE insulated PVC sheathed branch power cable/cabel



Principle cable(mm2)

Branch cable(mm2)

Reference dimensions

D1

D2

L

16

6~16





50





35





90

25

6~25

35

10~25

50

10~35

70

10~35

95

10~50





60





45





110

120

10~70

150

10~70

185

10~95

240

10~120

300

10~120

400

10~150



90



70



150

500

10~185

630

10~185





0.6/1KV YJV,VV,Prefabricated branch cable
