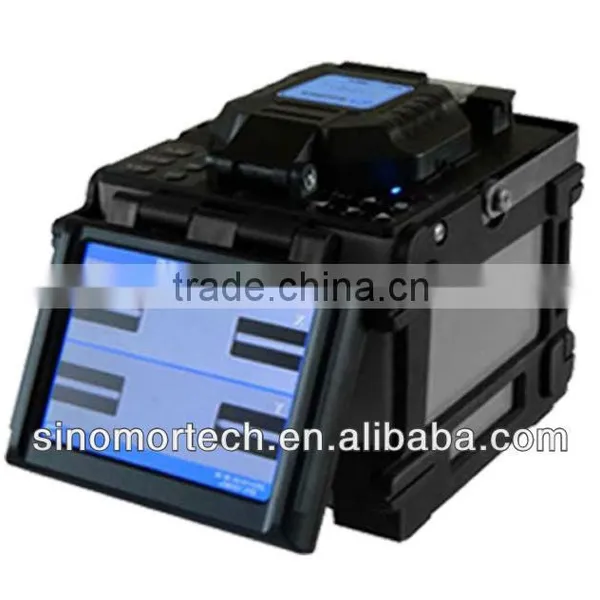

FS-50T Advanced Fusion Splicer

Specifications

1. Advanced Fusion Splicer
2. 8s splicing
3. 28s heating

Overview

The FS-50Tseries fusion splicer adopt high-speed image processing technology and special precision positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically,  TFT LCD scree clearly  monitor  the whole splicing process.

Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.

Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.

Support Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese, French, Italian, Turkish, English etc.



Features

1. High-resolution true color 5.6” LCD display
2. Cleaver with fiber scrap disposal
3. Advanced core to core fiber profile alignment system (PAS)
4. Real-time calibrating system, no need to adjust parameter
5. X/Y axes simultaneously display, up to 304 times magnification
6. 8 seconds splicing time,
7. 28 seconds Heat-Shrinking
8. Real-time battery capacity display
9. Built-in high capacity battery, support 220 times splicing and heating,
10. Up to 4000 times long electrode lifespan
11. Max. wind velocity of 15m/s with the new wind-cover design
12. Splicing modes, auto and manual
13. Built-in super high-brightness LED, convenient for night work
14. Auto calculation of splicing loss
15. 4000 splicing results Storage
16. USB data interface and VGA
17. One button operation for results download or software update
18. Close shield splice automatically, Close heater lid heat automatically
19. 12 month Warranty
20. Small bulk and light weight, only 2.8kg include battery



Specification

Model	FS-50T
Fiber Types	Single-mode (ITU-TG.652), multi-mode (ITU-TG.651), dispersion shifted (ITU-TG.653), non-zero dispersion shifted (ITU-TG.655) and other SMF including ITU-TG657fibers
Average Splicing Loss (dB)	0.02(SM), 0.01(MM) and 0.04(DS,NZDS)
Typical Splicing Time (s)	8
Typical Heating Time (s)	28
Return Loss (dB)	≥60
Fiber Coating (μm)	100~1000
Fiber Cladding (μm)	80~50
Fiber Cleave Length	8~16mm(coating diameter<250µm),16mm(coating diameter 250~1000µm)
Program	10units factory setting SM program, 10 units factory setting MM program, And 30 units user setting SM program, 30 units user setting MM program
Align Mode	Advanced profile alignment system (PAS)
Storage	4000
Data Transmission	USB port & VGA
Heater	Built-in tube heater, AUTO Heat Mode.
Heat-Shrinkable Tube	40mm, 60mm and a series of micro Heat-Shrinkable Tube
Screen Display	Two CMOS cameras, 5.6 inch 640*480 TFT LCD, core of the fiber is clearly visible
Lighting for Construction	Built-in super High-brightness LED supply convenience for night work
Magnifications	300X for single X or Y view, 300X for X and Y view (left/right), 150X for X and Y view (up/down)
Working mode	Auto/Manual
General Information
Power Supply	Alternating Current: 100-240v 50Hz/60Hz30W, Direct current: 13.5V/4.5A Built-in 11.1V Li-ion battery charger and AC adapter
Battery Life	Support 220 cycles (splicing and tube heating) on one charge (Min 3.5hours)
Battery Lifetime	Cycle life up to 300~500 times, replaceable
Tension Test	2N
Electrode Life time	>4000 times, replaceable
Operating Temperature (°C)	-25~+50
Storage Temperature (°C)	-40~+80
Relative Humidity	0 to 95%(non-condensing)
Working Altitude (m)	0~5000 meters above sea level
Instrument Weight (kg)	2.3kg(no battery) with AC/DC adapter, 2.8kg (including battery),
Dimensions (mm)	160×150×140
Package Gross Weight (kg)	10.0
Package Net Weight (kg)	9.0
Package (mm)	620×420×360











Standard Accessories

1)   Main unit

2)   Tri-hole stripper

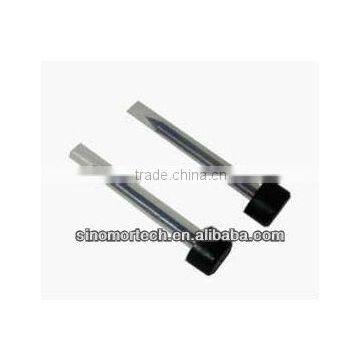

3)   Spare electrodes

4)   Cleaver

5)   Cooling tray

6)   Alcohol bottle

7)   Blower brush

8)   Power adapter

9)   AC cable

10)  USB flash disk

11)  CD

12)  Monitor coating

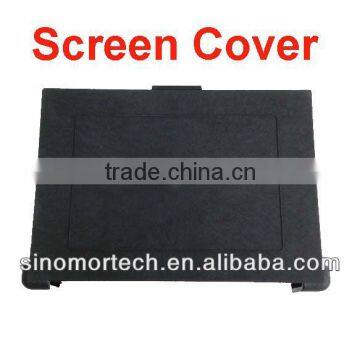

13)  Monitor cover

14)  V-groove cleaning brush

15)  Battery pack

16)  Manual

17)  Carrying case



Optional  Accessories

1)   Cigar-socket cord

2)   Cleaver blade

3)   Protection sleeve



Ordering information



1)   P=Power Adapter

      P1-USA power adapter

      P2- EU power adapter

      P3-UK power adapter
