Specifications
1) USB Power Meter2) Large Dynamic Range
3) Auto Wave Identification
4) 1000 records storage
Overview
PM6106 USB optical power meter is a multi-functional tester.
PM6106 USB optical power meter has 2 test mode,manual test or auto test.
PM6106 USB optical power meter has standard 6 calibration wavelength.

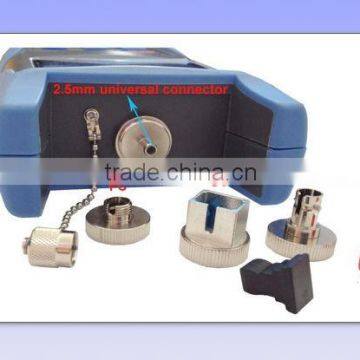

PM6106 USB optical power meter has 3 connector,FC/SC/ST/2.5mm universal.
PM6106 USB optical power meter has 1000 data storage via USB port.
PM6106 USB optical power meter has 200 working hours by using 3pcs alkaline battery.
PM6106 USB optical power meter has user self-calibrating function for quick calibration.
PM6106 USB optical power meter has external power adapter to provide power for the unit.
Combined with LS6206 series optical light source, it can automatically detect the wavelength and frequency from LS6206 light source, then switch wavelength and frequency accordingly.
Features
- USB optical power meter
- Automatic wavelength identification and switching (combine with LS6206 OLS)
- Automatic frequency identification (combine with LS6206 OLS)
- Intelligent backlight control
- User self-calibrating function
- 10 minutes auto-off function
- Up to 200 hours working hours
- External AC adapter to provide power
- Low battery indication
Specifications
Model | PM6106T0 | PM6106C0 | PM6106T | PM6106C |
Calibration Wavelength (nm) | 850/1300/1310/1490/1550/1625 | |||
Detector | InGaAs | |||
Connector | Interchangeable FC/SC/ST | |||
Measurement Range (dBm) | -70~+10 | -50~+30 | -70~+10 | -50~+30 |
Uncertainty (dB) | ±0.15(3.5%) | |||
Display resolution (dB) | 0.01 | |||
Frequency ID (Hz) | N/A | 270,330,1K,2K | ||
Wave ID (nm) | N/A | 850/1300/1310/1490/1550/1625 | ||
Data Records | N/A | 1000 | ||
Communication Port | N/A | USB | ||
Battery | AA (3pcs) | |||
Power Adapter (V) | 8.4 | |||
Working Time (h) | 200 (without backlight) | |||
Operation Temperature (°C) | -10~+60 | |||
Storage Temperature (°C) | -25~+70 | |||
Dimension (mm) | 175x90x44.5 | |||
Weight (g) | 235(including batteries) | |||
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) CD
7) Power Adapter
Ordering Information
PM6106 D-W-M-C-PA
| ||||
Measurement Range (M) | Detector (D) | Connector (C) | Wavelength (W) | Power Adapter (PA) |
M1: PM6106T0 M2: PM6106C0 M3: PM6106T M4: PM6106C | D1: InGaAs D2: Si D3: Ge | C1:Interchangeable FC/SC/ST C2:Interchangeable FC/SC/ST/LC
| W1:850/1300/1310/1490/1550/1625nm W2: 850/980/1300/1310/1490/1550nm W3: others
| PA1: USA power adapter PA2: EU power adapter
|
