Oxygen Cylinder Filling machine

 Oxygen Cylinder Filling Machine

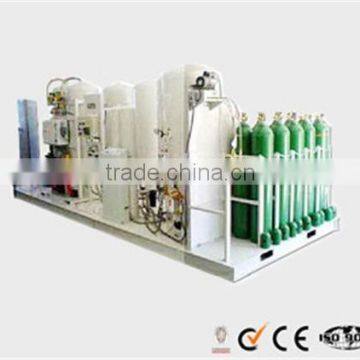

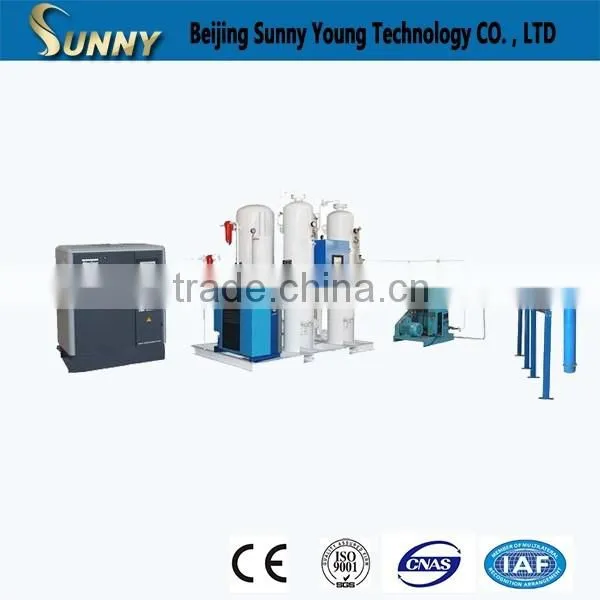

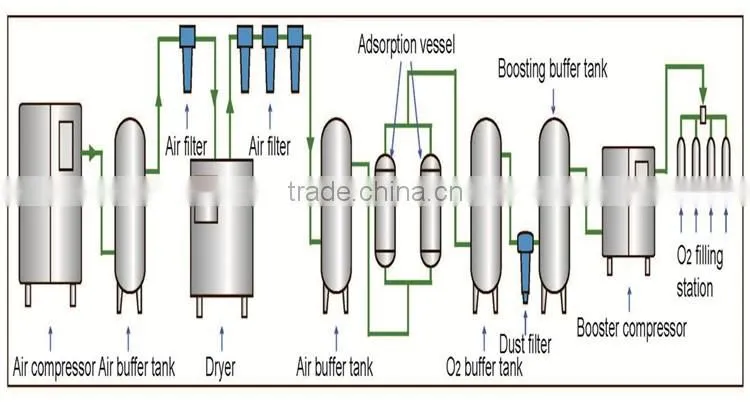

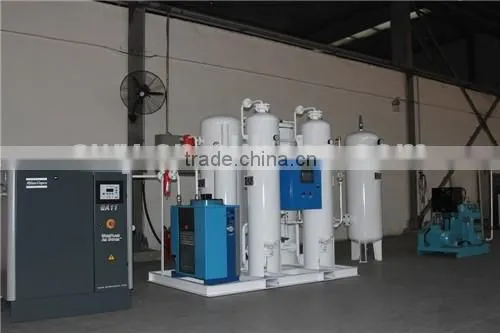

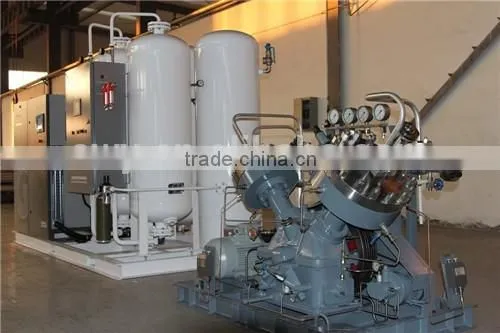

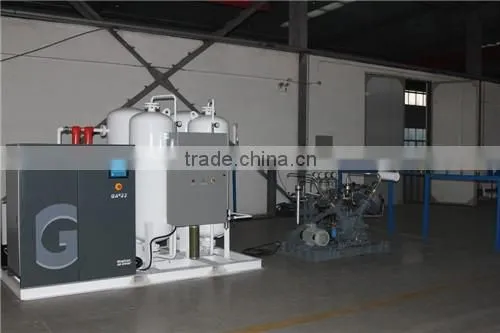

SunnyYoung oxygen cylinder filling machine produces oxygen at purity about 93~95%, and the capacity can be from 1~300Nm3/hour. The system incorporates an Atlas Copco screw air compressor, JMEC refrigerated air dryer and Parker filters, SunnyYoung oxygen generator air buffer tank, oxygen buffer tank, oxygen booster.

Condition: New
Place of Origin: Beijing China (Mainland)
Brand Name: SunnyYoung
Oxygen  Production Rate: 10Nm3/h
Voltage: 220V or as customerized

Power (W): 0.1KW
Certification: ISO9001
Warranty: 18months
After-sales Service Provided: Overseas service center available
Type: Skid-mounted
Dew point: -45ºC - -60ºC
Purity: 93+/-3%
Capacity: 1-300 Nm3/h

1. High Reliability: Proven PSA technology, simple engineering design, few moving parts and international standardized manufacturing techniques ensure minimal maintenance and maximum reliability.
2. Low Cost: Patented REFLUX high-efficiency control system reduces air consumption, saves electric power.
3. Convenience: Unattended operation controlled by PLC automatically. Optional touch-screen control, display and alarm system makes the generator to be operated by one touch. It displays working parameters, reminds filter elements replacing and instructs trouble shooting. It enables remote control.
4. Easy Installation: Skid mounted for easy installation and move.
5. Longer Service-life: Exclusive bed containment system extends Zeolite Molecular Sieve (ZMS) bed life to more than ten years.
6. Minimal Maintenance: The generator has highly-reliable valves and no other moving parts. Filter elements are easily replaced.

Paper and Pulp industries

Glass industries

Metallurgical industries

Chemical industries

Water and Wastewater treatment

Fish farming

Medical

oxygen cylinder filling machine

The principles of pressure swing adsorption (PSA) oxygen cylinder filling machine are adsorption and diffusion. Each gas has a characteristic adsorption rate that when adsorbed by Zeolite Molecular Sieve (ZMS). ZMS has large surface area containing volume of micro pores and passageways. Nitrogen has a higher adsorption rate than oxygen. When compressed air enters ZMS, oxygen molecules are able to pass through this large surface. And nitrogen molecules are adsorbed to the surface area. As the ZMS is saturated with nitrogen, it should be depressurized to regenerate for next cycle. We use two towers filled with ZMS to produce a continuous stream of nitrogen. During depressurization, the oxygen of lower purity than required is transferred to another tower, which is called pressure equalization. Pressure equalization donates to higher efficiency and less energy consumption.

SUNNY YOUNG Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, SUNNY YOUNG sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions. We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. SUNNY YOUNG is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us. SUNNY YOUNG is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service.

COMPANY BUSINESS:

PSA On-site N2generators

General purpose nitrogen generators

High purity nitrogen generators

Membrane N2generators

Nitrogen Purification Equipment

PSA O2 generators

Industrial oxygen generators

Medical oxygen generators

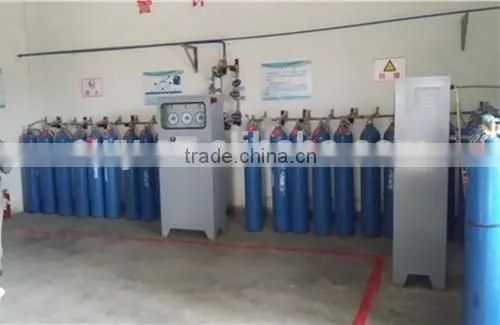

oxygen cylinder filling plant

Membrane O2 generators

Spare parts&Cosumables of N2/ O2 generators

Equipment selection and matching, technician training, installation and commissioning.

Remark: Cylinder capacity is 6cbm

If you need more details about oxygen cylinder filling machine, pls feel free to contacy with me , i will response in the shortest time.

Thank you.
