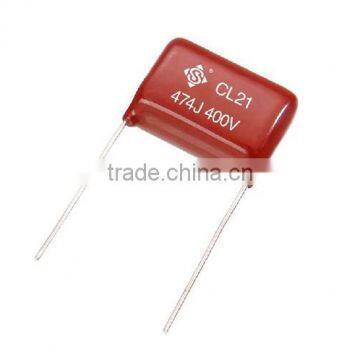

Metalised Polyester Film Capacitor CL21 474J 400V 470000pf +/-5% 400V Fan Capacitor

 STECL21474J400VP15

MEFare noon-inductively wound with metallized polyester film as the dielectric/electode with copper-clad stee leads and epoxy resin coating ,they are suitable for blocking,coupling decoupling filtering, by-pass and timing circuits,they find application in telecommunication,date processing, industrial instruments.and system epuipments.

1.OUTLINE DRAWING

2.Features

A. Metallized polyester film, non-inductive construction.

B.Wide capacitance range, small size.

C.Self-healing property, long life

D.Epoxy resin sealing

3.Typical applications

Suitable blocking, By-passing, and coupling.

Widely used in filter and low pulse circuits.

4.Specifications

a. Reference Standard: GB7332(IEC60384-2)

b.Operating Temperature Range: -40+85

c. Rated Voltage:250VDC

d.Capacitance Range:0.22uF 1KHZ 1.0V

e.Capacitance Tolerance:+/-5% J 1KHZ 1.0V

f.Voltage Proof (V) : No failure Rated voltagex1.6Ur

g.Dissipation Factor: tg<=0.01 1Khz

h.Insulation Resistance :C<=0.33uf, IR>30000Mω

WORKSHOP

  Packing:500pcs/plastic bag Shipping: FOB,EXW,CNF.  Please notify me if you have any special needs.

We can provide you the best professional technical support, such as data sheet, drawing, design FAQ, ect,.

We also can provide you the related recognize credit, such as UL,VDE,CSA,CQC,ect.
