15.24mm wedge radius barrel 12.7mm wedge and barrel radius barrel

FOB Price

USD $0.5 - $6 / Pair

10000 Pairs(Min.Order)

Supply Ability 20000 Pair / Pairs per Month
Port TIANJIN
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Tianjin, China	Brand Name:	ZH, ZH	Model Number:	20CrMnTi, ZH13 / ZH15
Material:	Other, alloy steel

Product Description

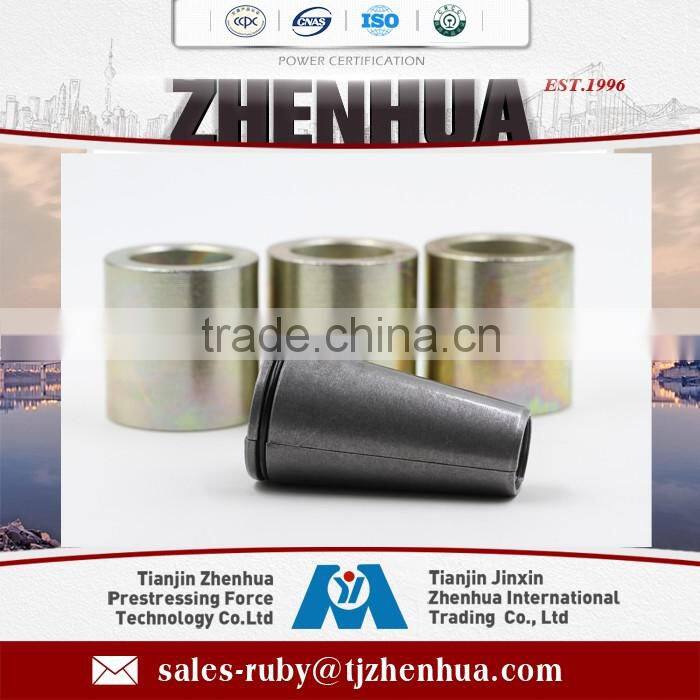

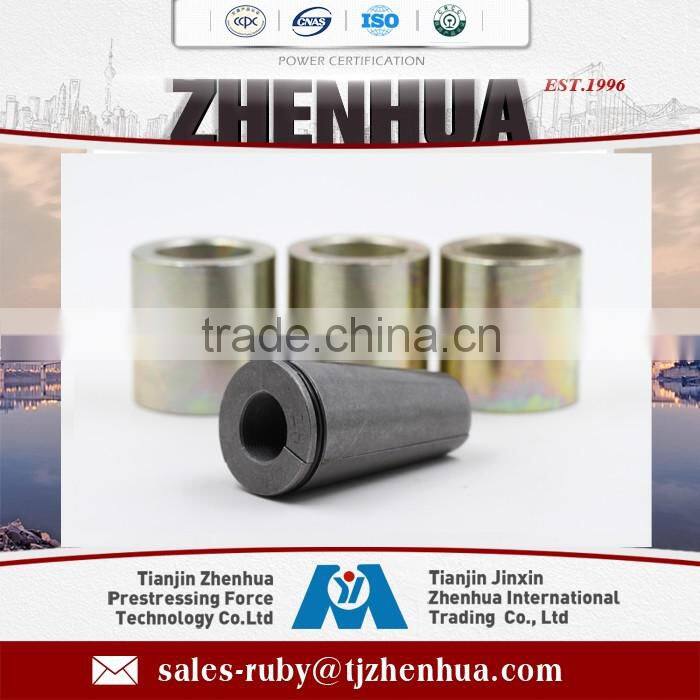

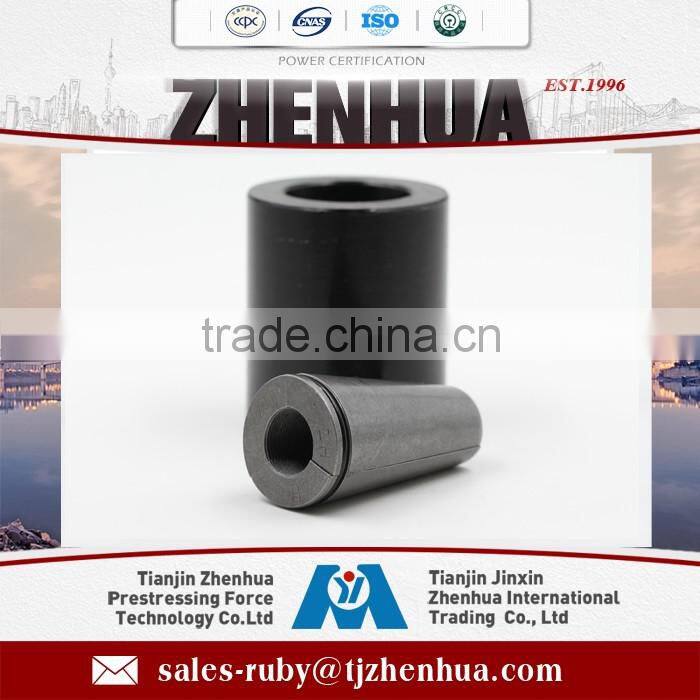

15.24mm wedge radius barrel 12.7mm wedge and barrel radius barrel

1. Specification: for 12.7mm or 15.24mm pc strand

2. Model: ZH13 or ZH15

3. Type:2 pcs per pair

4. Certification: ISO9001:2008,ISO,IAF,CNAS,CCPC

5. 1 pair contains 2 pieces or 3 pieces and 1 rubber ring

Product Name	15.24mm wedge radius barrel 12.7mm wedge and barrel radius barrel
Material	20CrMnTi
Standard	GB/T14370-2015
Length	40±1mm
Diameter	φ28mm
Hardness	78~85 HRA
Tensile Strength	1860Mpa
Used	Post tensioning, prestressed, bridge 1. Specification: for 12.7mm or 15.24mm pc strand 2. Model: HM13 or HM15 3. Type:2 pcs or 3 pcs per pair 4. Certification: ISO9001:2008 5. 1 pair contains 2 pieces and 1 rubber ring

15.24mm wedge radius barrel 12.7mm wedge and barrel radius barrel :

STRAND NO	ANCHOR BOLSTER A×B×φC	CORRUAGTED PIPE INNER DIAMETER φD	ANCHORAGE φE×F	SPIRAL BAR		ANCHOR BOLSTER		PRESTRESIING JACK
STRAND NO	ANCHOR BOLSTER A×B×φC	CORRUAGTED PIPE INNER DIAMETER φD	ANCHORAGE φE×F	φG×φH×1	CIRCLE	INSTALL HOLE	INSTALL HOLE	PRESTRESIING JACK
1			φ46×45 φ43×45					DC250Q YDC250Q
2			φ83×45 φ73×45					YCW100B YCW100B
3	φ135×85×66 φ130×80×63	φ50 φ50	φ87×45 φ78×45	φ130×φ10×50 φ130×φ10×50	4 4	φ112.5 φ110	M10	YCW100B YCW100B
4	φ136×100×66 φ136×95×68	φ55 φ50	φ93×50 φ87×48	φ140×φ10×50 φ136×φ10×50	4 4	φ115 φ115	M10	YCW100B YCW100B
5	φ146×120×71 φ146×120×73	φ55 φ50	φ103×50 φ97×48	φ152×φ10×50 φ146×φ10×50	4 4	φ126 φ126	M10	YCW150B YCW100B
6	φ164×135×80 φ155×120×77.5	φ70 φ60	φ117×50 φ107×48	φ170×φ12×50 φ155×φ12×50	4 4	φ140 φ135	M10	YCW150B YCW100B
7	φ164×135×80 φ155×120×77.5	φ70 φ60	φ117×50 φ107×50	φ170×φ12×50 φ155×φ12×50	4 4	φ140 φ135	M10	YCW250B YCW150B
8	φ176×150×85 φ167×140×81	φ80 φ70	φ127×52 φ117×50	φ180×φ14×50 φ167×φ12×50	5 4	φ153 φ146	M10	YCW250B YCW150B
9	φ185×150×90 φ175×150×88	φ80 φ70	φ137×52 φ127×50	φ180×φ14×50 φ175×φ12×50	5 4	φ162 φ154	M10	YCW250B YCW150B

great quality best prestress anchorage wedges for pretension work

It includes some parts like limit board and anchor plate etc.

Its Hardness of manufacturer of industry wedge

work anchorage head and limit board: 25~4033HRC (306 HBS) work gripper :78~86HRA

Matched tensioning device manufacturer of industry wedge :

YCQQ series jack, ZB4-500 hydraulic pump

Heat treatment specification of manufacturer of industry wedge :

ISO9001 - 2008 & JB/T3999-1999

(Carburizing or carbonitriding and post–quenching and tempering of steel part)

During the Heat treatment permeability, nitriding, quenching, tempering process , The computer control process parameters of multi-purpose furnace, and set up quality control points according to the requirements of ISO9001 - 2008 quality assurance system, after heat treatment ,the hardness, tooth type, appearance have to pass a rigid thoroughly inspection, to ensure high qualified products.

All the procedure was controlled by a computer according to JB/T3999-1999

Other supporting anchorage sample show:

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, we could offer the sample but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 50% T/T in advance ,balance before shippment.

We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.If you have another question, pls feel free to contact us.

If you have interest in our products, please feel free to contact me any time.
