Home > Products > Character LCD Module > 1602 cob LCD Character Module with led baklight

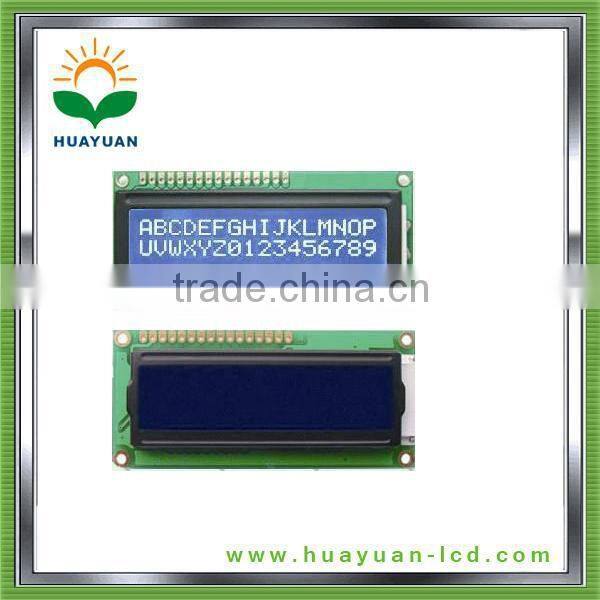

1602 cob LCD Character Module with led baklight
- 100 Piece / Pieces per Month
- Shenzhen airport
Product Details
Place of Origin: | Hunan, China | Brand Name: | Huayuan | Model Number: | GH1602-2201 |
Type: | Character |
Packaging Details
Standard package and we can have a negotation if you have special package request.
Product Description
Basic Parameter
1602 cob LCD Character Module with led baklight
Model: | GH1602-2201 |
Construction | COB |
Display Type | STN,Negative or Positive ,Transmissive |
Operating Voltage (VDD) | 3.3V,5V |
Backlight Voltage(VBL) | 3.3V,5V |
Operating Temperature (degree Celsius) | -20°c~70°c |
Storage Temperature (degree Celsius) | -30°c~80°c |
Viewing Direction | 6:00 |
Dot Matrix | 16*2 |
Viewing Area | 64.50*16.40 |
Active Area | 56.05*11.55 |
Outline Dimension | 80.00*36.00*12.00 |
Controller | ST7066U |
Backlight | LED,Y-G,White |
Outline Drawing
Interface definition describe
Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
interface definition | VSS | VDD | V0 | RS | WR | E2 | DB0 | DB1 | DB2 | DB3 | DB4 | DB5 | DB6 | DB7 | A | K |
Product Range
1. TN.STN.FSTN.TFT Panel/Module
2. Customized LCD Panel/Module
3. OEM.ODM are accept
Similar Product
Part Number | V.A Size(L*Wmm) | Description | Controller | Outline Dimension |
GH1602-2201 | 64.50*16.40mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*12.00mm |
GH1602-2202 | 65.00*16.00mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*12.00mm |
GH1602-2203 | 60.20*17.90mm | STN/COB.LED,Y-G,WHITE/6:00 | ST7066U | 80.00*36.00*11.50mm |
GH1602-2204 | 38.20*12.82mm | STN/COB.6:00/3.3V,5V | ST70321-0D | 41.20*23.07*7.30mm |
GH1602-2205 | 52.60*15.80mm | STN/COB.6:00/3.3V,5V | UC1701 | 55.60*22.60*5.20mm |
Main Application
Company Profile
HongKong Sino Sources Holding Industrial CO., LTD. is a financial investment company. Its business involves a wide range of areas, such as electronic commerce, building materials,renewable resources,mechanical equipment etc.
Shenzhen Huayuan Display Technique CO., LTD. is specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control,
instrumentation,medical equipment, security, tax control equipment
industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology CO., LTD. is located in Zhuzhou high tech Zone, Hunan Province.The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research
institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence,integrity and dedication," and strives to make the company become a global well-known enterprises.
