MM series hydraulic motor
BMM series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
| Type | BMM | BMM | BMM | BMM | BMM | BMM | |
| 8 | 12.5 | 20 | 32 | 40 | 50 | ||
| Displacement (cm3/rev.) | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max. speed (rpm) | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| Max. torque (N•m) | int. | 15 | 23 | 35 | 57 | 70 | 88 |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
Max. output (k W) | cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max. pressure drop (MPa) | cont. | 10 | 10 | 10 | 10 | 9 | 7 |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max. flow (L/min) | cont. | 16 | 20 | 20 | 20 | 20 | 20 |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight (kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |

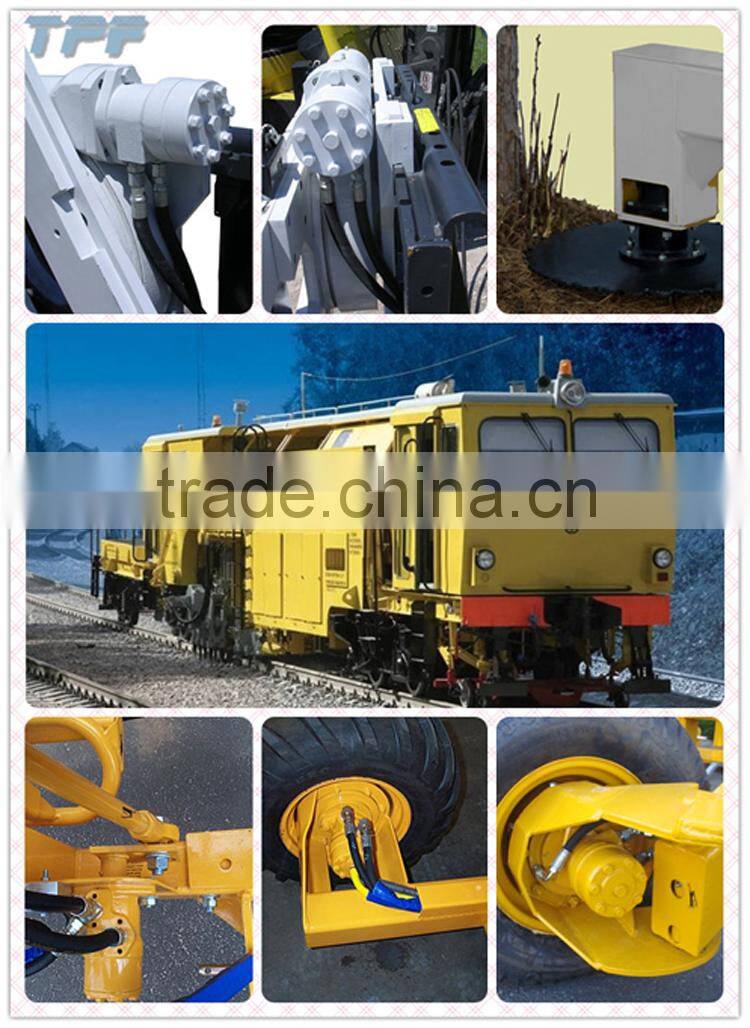

| Option: | Application: | |
| - Model - Spool valve, gerotor; | *Conveyors | |
| - With or without flange; | *Textile machines | |
| - Side and rear ports; | *Machine tools | |
| - Shaft - straight and splined; | *Mining machinery | |
| - Flange-circle or Rhomb flange | *Construction plant equipment | |
| - Three ports - Metric /UNC and BSPP; | *Access platforms | |
| - Color-Blue, grey ,black ,yellow |

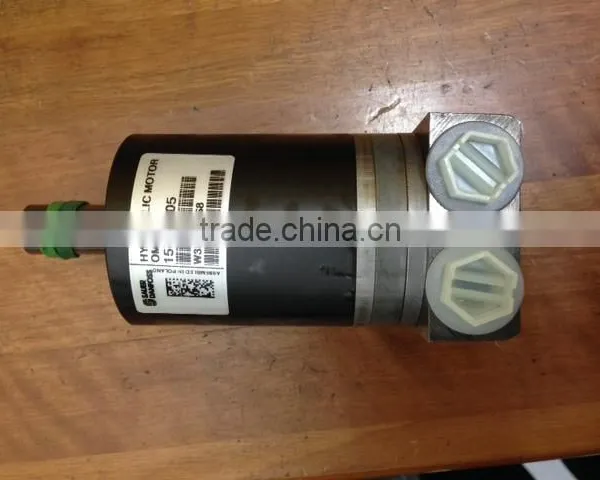

We can produce hydraulic motor which replace Danfoss OMM .
| OMM | ||||||
| Displacement (cc) | ||||||
| Code | 8 | 12.5 | 20 | 32 | 40 | 50 |
| 151G | 151G-0040 | 151G-0001 | 151G-0002 | 151G-0003 | 151G-0277 | 151G-0037 |
| 152G | 151G-0041 | 151G-0004 | 151G-0005 | 151G-0006 | 151G-0279 | 151G-0013 |
| 153G | 151G-0048 | 151G-0031 | 151G-0032 | 151G-0033 | - | 151G-5032 |
| 154G | 151G-0049 | 151G-0034 | 151G-0035 | 151G-0036 | - | 151G-0094 |
| 155G | 151G-0046 | 151G-0024 | 151G-0025 | 151G-0026 | - | - |
| 156G | 151G-0047 | 151G-0027 | 151G-0028 | 151G-0029 | 151G-0294 | - |
All of above code ,our BMM series motor can replace them .Welcom to enquiry .
