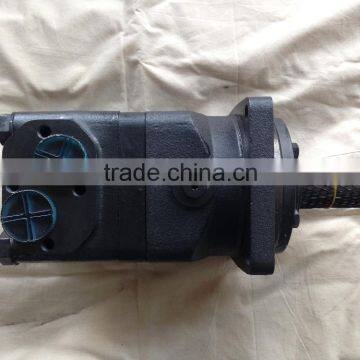

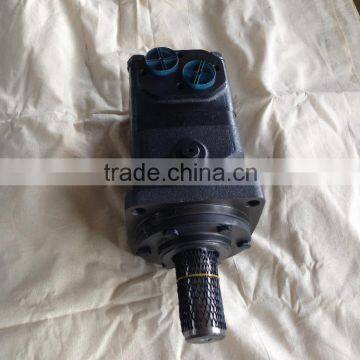

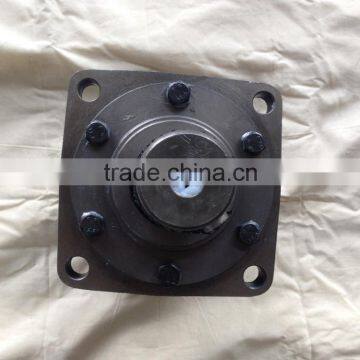

BMT/OMT/M+S MT/ Brevini HT series high efficiency geroler distribution obitor china hydraulic motor
The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, provide smooth and reliable operation and high efficiency,it’s higher bearing capacity than BMS series .
One type of LSHT motor,which can replace Danfoss OMT series ,M+S MT series ,Eaton 4000/6000 series etc.
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | ||
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | ||
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 | |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | ||
| Max. torque (N• m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 | |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | ||
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | ||
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 | |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | ||
| ure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 | |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | ||
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | ||
| rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | ||
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | ||
| Max. inlet pressure (Mpa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | ||
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | ||
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial
forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in
operating with high volume efficiency and long life, provide smooth and reliable operation
