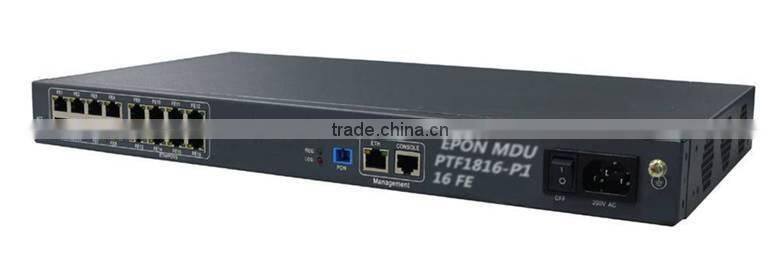

GEPON MDU PTF1816 16FE+16POTS

GEPON MDU PTF1816

16FE+16POTS

Description

PTF1816 series are EPON MDU broadband access device designed by PHOTON BROADBAND. It include PTF1816-T(16FE+16POTS), PTF1816-TP2(2PON ports, 16FE+16POTS), PTF1816-P1(16FE), PTF1816-P2(2PON ports, 16FE).They base on stable and mature Gigabit EPON technology and Layer 3 Ethernet switch, which has highly reliable and easy to maintain and build network, with guaranteed QoS. The technology performance meets the IEEE802.3ah, China Telecom EPON equipment technical requirements (V2.1) specification requirements.

Features

   Data Function

• Full speed without blocking exchange
• 8K MAC address table
• Support Full Range VLAN ID
• Support QinQ VLAN,1:1VLAN,VLAN Trunk etc.
• support port monitor, port mirror ,port speed limit ,port SLA etc.
• QoS based on interface,IEEE 802.1p,IPV4(ToS),Diff-Serv,IPV6,802.1Q VLANID,destination MAC or source MAC.
• The Ethernet interfaces according to the specifications of the IEEE802.3.
• 128-bit AES encryption algorithm.
• According to 802.1x remote management and user authentication

Telephone Function

• Support SIP protocol,H.248 protocol,H.323 optional.
• Support ITU-T G.711,G.723.1,G.729 compression algorithm
• Echo cancellation meets ITU-T G.168-2002. echo cancellation for the longest is 128ms.
• Support OSPF,T38.
• Support RFC2833 and RFC2833 redundant,distinctive ringing ,MD5 certificate,call forwarding,call waiting,telephone hotline,alarm clock,abbreviated dialing and etc.
• Support two POTS interface three-way calling,three-way calling support local mixing.
• Support POTS GR909 line test function.
• Support dynamic PPPoE,dhcp and static IP.
• Support CTC2.1 standard
• 7×24h call lose≤0.01%

Specifications

Ordering information
