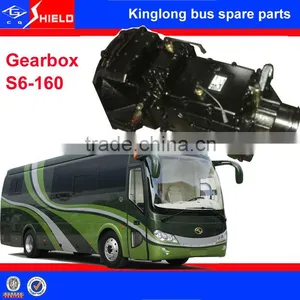

Bus part kinglong gearbox S6-160.

Specifications

Kinglong gearbox S6-160
Short Installation length, manual, synchro-mesh
Based on ZF S6-90 technology
MOQ: 1 set

Bus part kinglong gearbox S6-160.

characteristic
type	S6-160
input power	300-360Ps/2200r/min
weight	325kg (packaged weight, with clutch housing)
ratio	torque	1st	2nd	3rd	4th	5th	6th	Reverse
	1200Nm	8.83	5.245	3.22	2.2	1.5	1	8.3
	1600Nm	6.84	4.06	2.74	1.89	1.31	1	6.43
	1500Nm	6.9	4.09	2.45	1.5	1	0.81	6.48
	1500Nm	6.25	3.71	2.22	1.36	1	0.74	5.87
installation	Horizontal to left/right,Vertical,Installed with engine or seperated
installation	538mm
oil capacity	horizontal 13L,Vertical 10L
vehicle	11~13.7m.  bus,coach,tourist bus

*Match engine of 350~360HP Euro Ⅱ/Ⅲ with Max. Torque 1500~1600NM.

*Equip bus length≥11m ;

*based on ZF S6-90 technology. large loading capacity, high reliability, low noise.
*Short Installation length , can be equipped with hydraulic or electric backset retarders.



Packing

wooden case 1pcs/case

Our field:

1. 5 speed gearbox assembly & spare parts: S5-70, S5-80, S5-120

2. 6 speed gearbox assembly & spare parts: S6-80, S6-90, AK6-90, S6-100, S6-120, S6-150, S6-160

3. 9 speed gearbox assembly & spare parts: 5S-150GP, 5S-111GP, 4S130GP

4. 16 speed gearbox auto parts: 16S109, 16S150, 16S151, 16S181, 16S220,  16S221, 16S251

5. Mercedes-Benz G60, G85 spare parts



Company information



Chongqing Shield Gear & Transmission Co., Ltd (hereafter called CQSD) was established in 2005, lying in the Beibei Zone of Chongqing city. CQSD is specilized in producing transmission gearbox and its related spare parts for the heavy-duty truck and luxurious bus in China.
CQSD has strong technical force, advanced technology and hundreds of equipments and inspecting instruments which ensure our products high precision and stability. On the precondition of satisfying the domestic auxiliary market, we are reinforcing the cooperation with the foreign customers, including OEM exporting, processing with supplied drawings, processing according to supplied samples. CQSD adapts a Quality Management System (QMS) in accordance to the strict ISO9001:2000 guideline and now our products have won a good reputation at home and abroad.
The leading products are as follows: synchronizer, gearbox housing, gear and shaft, which are applicable to the 5S-150GP, 5S-111GP, QJ805, QJ1506, S6-90 etc. CQSD gets a rapid development in the past several years, having been one of the leading manufacturers for the heavy-duty automotive transmission in Chongqing.
CQSD devotes to persuing “ leading enterprise in the transmission industry with 100-years’ development” and insists on the principle of puting quality first and treating the customers as supremacy. CQSD wishes to sincerely cooperate with domestic and foreign customers, achieving a brilliant future together.

View of our office:

Factory Equipment:

Clients:

Certificates:



Questions&Reply:
