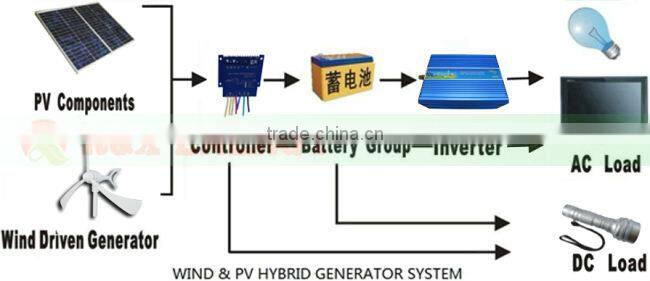

Horizontal wind generator price 300W. Combine with wind/solar hybrid controller(LED display).

Specifications

Horizontal wind generator price
1.Start in breeze 3.5m/s
2.Spinning then charging
3.High efficient output.

Horizontal wind generator price 300W. Combine with wind/solar hybrid controller(LED display).











Sample Purchase online:Click here













Please leave a message about whether you need

12V or 24V.









Introduction



1. Large power, low volume, low weight, high efficiency

2. Carbon fiber blades, high efficiency of anti-wind ability

3. Blades with the ability of automatically stall protection under strong wind





Technical Data



Model	Dolphin-300
Rated Power	300W
Rated Voltage	DC/AC 12V/24V
Rated Current	25A/12.5A
Rated Speedy	1850r/m
Max Power	380W
Number of blade	3 PCS
Start-up wind speed	3.5m/s
Cut-in wind speed	3.5m/s
Cut-out wind speed	18m/s
Security wind speed	45m/s
Rated wind speed	12.5m/s
Engine	Three-permanent magnet generator
Rotor diameter	1250mm
Blade material	Carbon fiber
Output line anti-winding device	Overall three-phase commutator
Over-speed wind protection	Tip stall protection + turned protection + Electromagnetic brake
Life span	15years
Equipment surface protection	Aluminum oxide+plastic coating
Working temperature	-45°C to 70°C
N.W.	5.85kg
packing dimension	690*380*220mm
G.W.	7.5kg
Drawing
300W monthly power  generation curve
Powe curve
Certification















Description



1.simple structure,running stably,power supply for city lamp,monitoring and home.



2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.



3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.



4. Brand New in box



5. CE Certificate



6. ISO9001:2000 Quality Certification



7. ROHS Certification



8. Large power, low volume, high efficiency



9. High efficiency of anti-wind ability,move mutely and steadily



10. Blades with the ability of automatically stall protection under strong wind



11. 3 years free warranty




















































Picture of controller















Application
