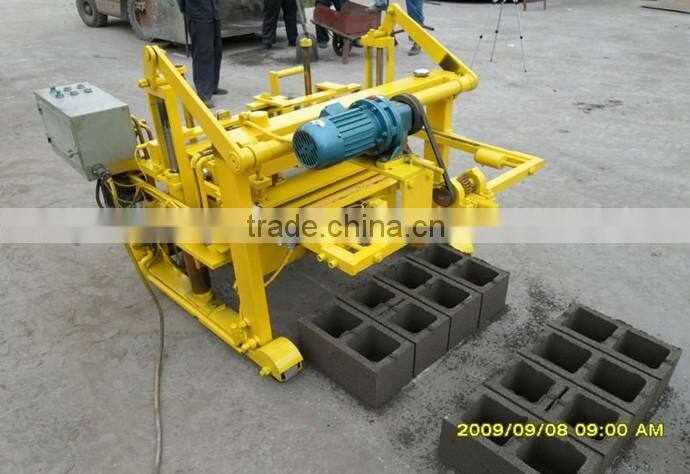

Mobile Block machinery QT40-3A small home production machinery

Mobile Block machinery QT40-3A small home production machinery

1.Introduction for Mobile Block machinery QT40-3A small home production machinery

1) Mobile Block machinery QT40-3A small home production machinery, is one kind of new production of our company .That synthesizing the advantage of both hydraulic and machinery, meeting the requirement of customer from the target market of oversea, basing at theprinciple of smaller investment with higher machinery property and it is specifically for the oversea market sale.

2)The hydraulic system and the machinery system of this equipment supplement each other and the operating of it is very simple. It can make the production of bricks without pallet, so it save the investment of pallet purchasing.

3)The major vibration form of it is mould vibration, who can make super vibration influence with small power .With the pressure of hydraulic system, it makes the raw material adding adequately and compacting adequately. The production of it could compare favourably with the production produced by the larger hydraulic machine.

4)It can produce various kind of concrete block production by easily changing the mould.

2.Main Parameters of Mobile Block machinery QT40-3A small home production machinery

Main parameter	QTY40-3A
Qty of pcs per mould	400*200*200mm 4pcs/m
	400*150*200mm 5pcs/m
Molding cycle	30s
Production capacity	5800~13000pcs/shift(8h)
Vibration frequency	4500r/min
Exciting power	28.6 KN
Overall power	5.95KW
Overall dimension	1300*1500*1000mm
Molding form	Vibration and Pressure
Main vibration form	Mould Vibration

3.Productivity of Mobile Block machinery QT40-3A small home production machinery

Item	Sample	Size(mm)	Qty/mould	Cycle molding	Per day/8hours
Hollow block		400×200×200	4	20~25s	5800 pcs
		400×150×200	5	20~25s	7200 pcs
		400×120×200	9	20~25s	13000 pcs

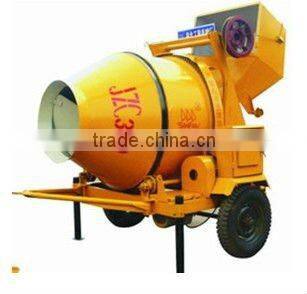

4.JZC350 concrete mixer

Main parameters	JZC350	Photo
Discharge Capacity	350L
Max diameter of material	50mm
Mix engine power	15KW
Winch engine power	5.5lw
Pump engine power	1.1kw
Shaft speed	25r/min
Hopper move speed	18m/min
Productivity	18—25m3/h
Overall dimension	1700×2000×1500mm
Overall weight	2700kg

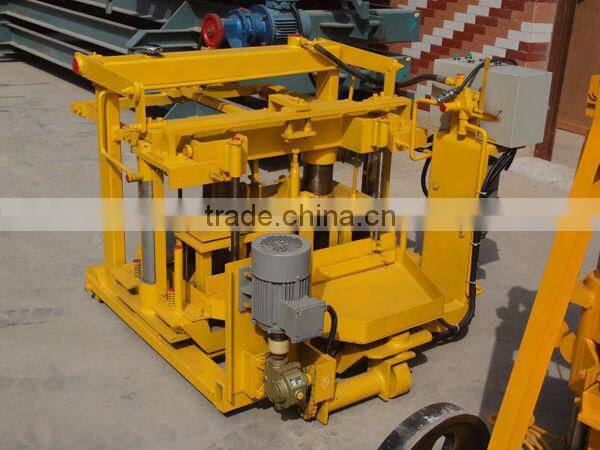

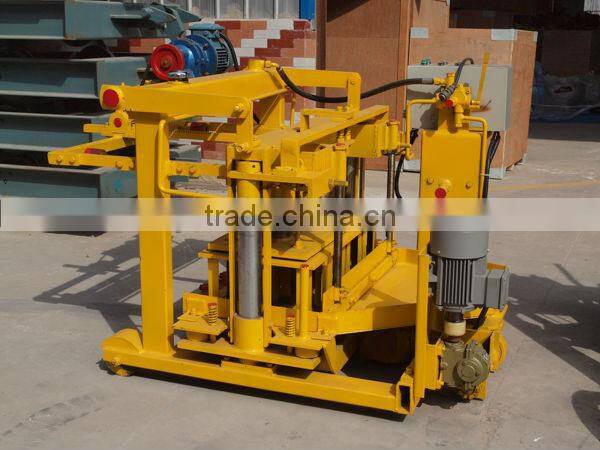

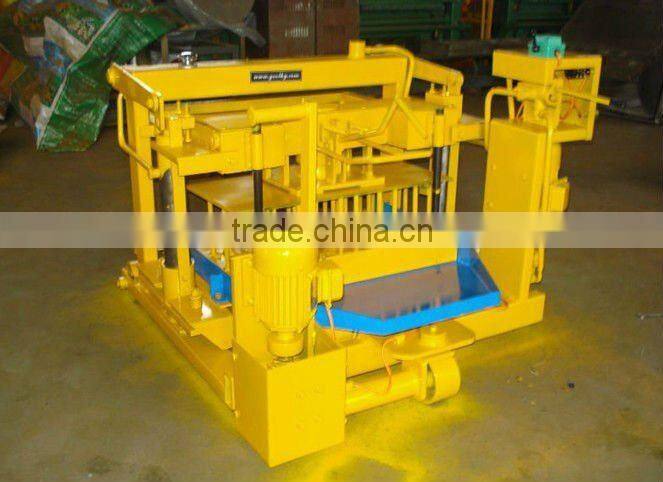

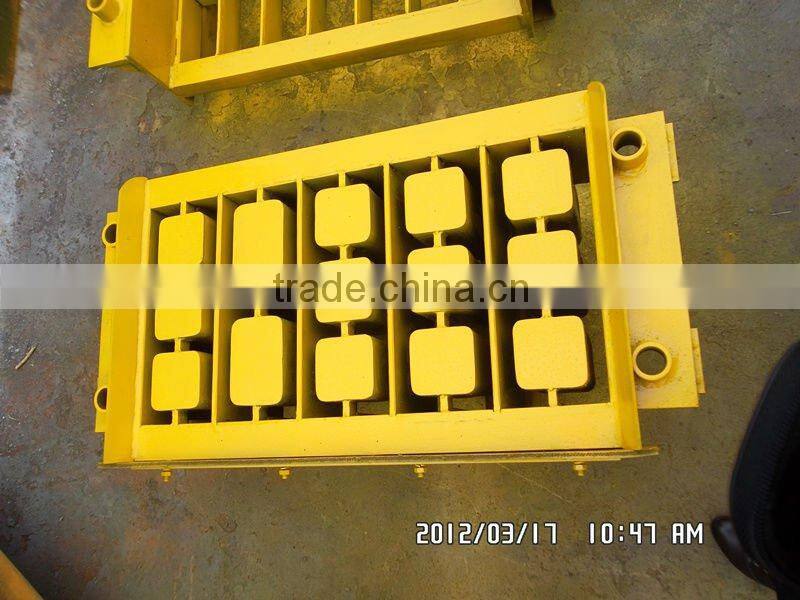

5.Hydroform blocks machine and mould picture

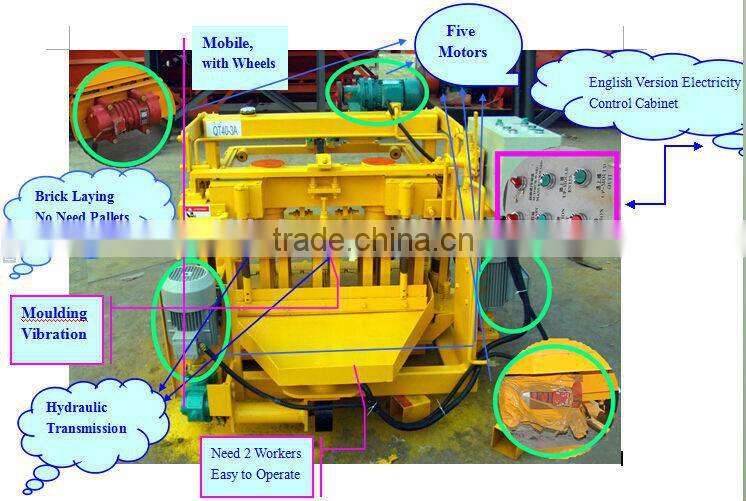

6.What's the advantage of Mobile Block machinery QT40-3A small home production machinery

1. Newest product ! Molding cycle only 25-30s!

2. Small  automatic machine, controled by pushing button in English version!

3. Automatic walking! Automatic forward and backward! Automatic laying bricks!

4. Hydraulic type ! reduce the impacts to the machine and prolong the service life!

5. No need pallets! Make various size of hollow block by change mould easily!

6. Compare with stationary and big machine, very suitable for small business and home usage!
