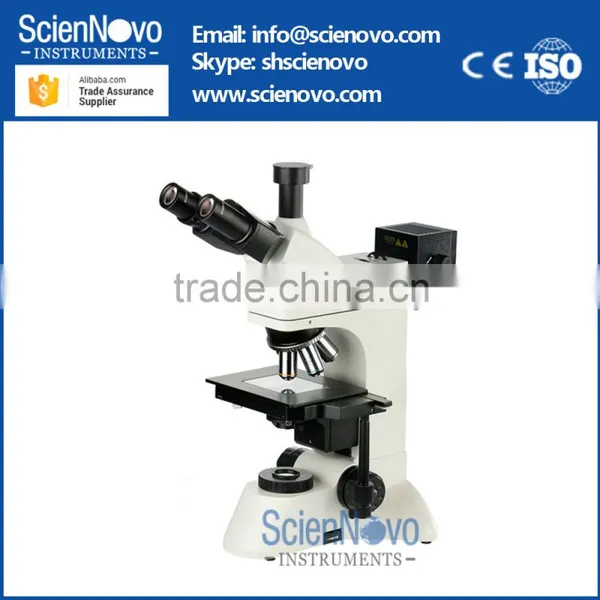

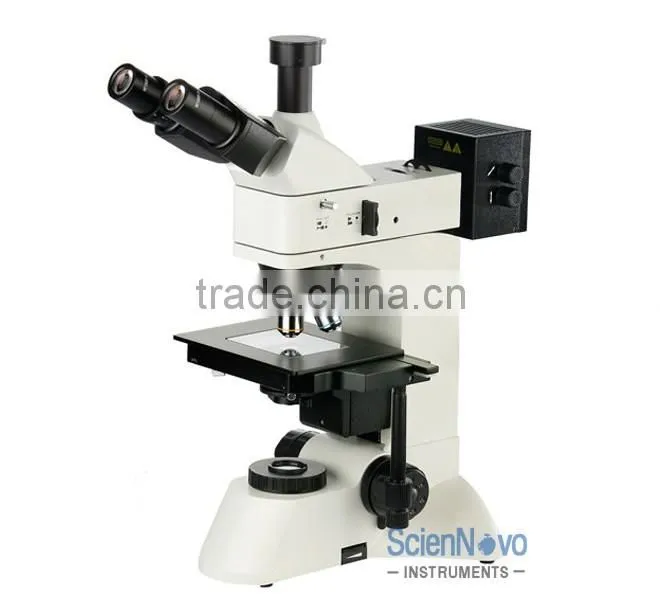

high quality Scienovo L3230BDgreat metallographic microscope Magnification 50X-600X

Technical specifications (standard)

Eyepiece

10X wide field plan eyepiece and field of view number is 22mm, the eyepiece interface is 30mm

Infinity plan achromatic objectives

L3230/L3203/L3220
(Equipped bright field objective)

PL L5X/0.12   working distance:26.1 mm

PL L10X/0.25  working distance:20.2 mm

PL L40X/0.60   working distance:3.98 mm

PL L60X/0.70  working distance:3.18 mm

L3230BD
(Equipped bright field objective)

PL L5X/0.12 BD working distance:8.05 mm

PL L10X/0.25BDworking distance:7.86mm

PL L20X/0.40 BD working distance:7.2mm

PL L40X/0.60BD working distance:3.0 mm

Eyepiece tube

Trinocular inclined 30, pupil separation 53~75 mm.

Focusing system

Coaxial coarse/fine focus system, with tension adjustable device, minimum division of fine focusing: 2.0μm.

Nosepiece

Quintuple (Backward ball bearing inner locating)

Stage

Mechanical stage,overall size:210mmX140mm,moving range: 63mmX50mm

Illumination system

L3230/L3203/L3220

6V30W halogen and brightness enable control.

L3230BD

12V30W halogen and brightness enable control for transmission illumination.

12V50W halogen and brightness enable control for reflecting illumination.

Integrated field diaphragm, aperture diaphragm and puller type polarizer.

Equipped withgroundglass and yellow ,green and blue filters

Optional Accessory

Eyepiece

Dividing eyepiece(Φ22mm)

Objective

L3203/3220/L3230

Bright field objective 20X,50X,80X,100X(Dry)

L3230BD

Bright&dark field objective 50X,60X,80X,100X

CCD adapter

0.5X,1X,0.5X(with dividing)

Camera

Usb output 1.3M,3.0M,5.0M,10Mpixel

Digital camera adapter

Cannon(EF) nikon(F)
