Intelligent magnetic flux leakage testing machine/ MFL

Specifications

1. Intelligent magnetic flux leakage testing machine/ MFL
2.IDEA-8MFL magnetic flux leakage detector
3.AC, DC, mixed-type

1. Intelligent magnetic flux leakage testing machine/ MFL
2.IDEA-8MFL magnetic flux leakage detector
3.AC, DC, mixed-type

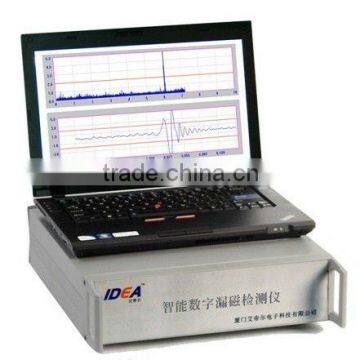

Intelligent magnetic flux leakage testing machine/ MFL is a new generation of integrated electromagnetic nondestructive testing equipment, it uses the most advanced digital electronic technology, electro-magnetic technology, magnetic flux leakage technology and microprocessor technology, real-time effective to detect ferromagnetism defects in metal materials.



IDEA-8MFL is a high-performance, multi-purpose, intelligent testing equipment.



IDEA-8MFL combination the funtion of magnetic flux leakage detection to solve the human factors of magnetic particles testing and penetrant testing methods, through the magnetization and testing of complete body with the use of magnetic devices to improve detection accuracy and reliability, reducing the human factors, simplified testing process, reduce testing costs.



Main Technical Data of Intelligent digital magnetic flux leakage testing machine

Detection channels: 4,8,16 (expandable 64-channel)

Real-time trace memory 16 signals

A variety of magnetic methods: AC, DC, mixed-type

Detection speed :10-30M / min

Detection Thickness (45 # steel) :10-30mm;

Maximum lift-off height: 10mm

Gain: 0 ~ 99dB continuously adjustable 0.1dB step

DSP digital filtering: Low-pass: 0hz ~ 2000hz, high-pass: 0hz ~ 2000hz



Applications of magnetic flux leakage detector



Applicable to steel parts, steel billet, round steel. bar, pipe, weld, cable and other testing, as well as nuclear energy, electric power, petrochemical, aerospace, aviation and other departments in the service pipe, metal parts of the testing, analysis and evaluation. At the same time can be used for boilers, petrochemical industry, pressure vessels, pipelines, oil storage equipment, corrosion detection.
