Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > 4CH HD Video Transcoder With 6CH Tuner and IP Input Satellite /ip to Stream Transcoder COL5081T

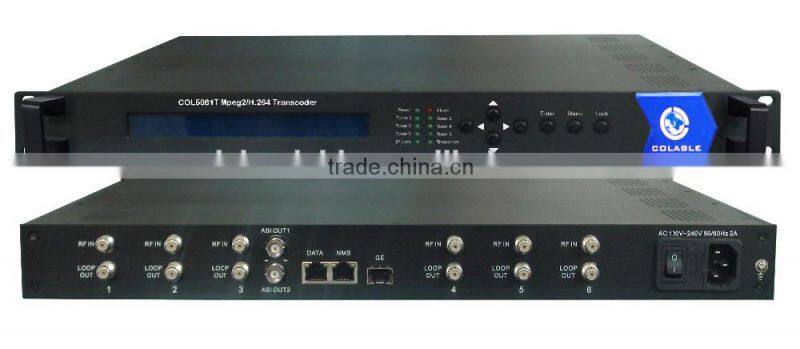

4CH HD Video Transcoder With 6CH Tuner and IP Input Satellite /ip to Stream Transcoder COL5081T

Name: 4CH HD Video Transcoder With 6CH Tuner and IP Input Satellite /ip to Stream Transcoder COL5081T
Brand: Colable
SKU: 132186649
Availability: InStock

Colable Electronics Co., Ltd.

4CH HD Video Transcoder With 6CH Tuner and IP Input Satellite /ip to Stream Transcoder COL5081T thumbnail-1

4CH HD Video Transcoder With 6CH Tuner and IP Input Satellite /ip to Stream Transcoder COL5081T photo-1

US$ 1 - 2,700 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

Colable

Model Number:

COL5081T

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name Colable

Model Number COL5081T

4CH HD video Transcoder with 6CH Tuner and IP input satellite /ip to stream transcoder

(Skype ID: colable.sales008 whatsapp: +8615928631862)

Outline

COL5081T is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.

This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.

It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.

Features

Support 8 * IP (SPTS/MPTS UDP) input plus 6 tuners input
- Or 8 * IP (SPTS/MPTS UDP) input plus 6 ASI input
Support 8*SPTS & 1*MPTS (UDP) output and 1 ASI output
Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any
Audio Trans-coding: AAC and MPEG-2 any-to-any or pass-through
Support maximal 8 SD or 4 HD programs trans-coding
Support maximal 8 channel audio trans-coding
Supporting 1920x1080I, 1280x720P, 720x576i, and 720x480i resolutions
Supporting CBR and VBR rate control
Advanced re-multiplexing
LCD & Key board local control; web NMS management

Specifications

Stream In	MPTS/SPTS over UDP, 1000Base-T Ethernet Interface/ SFP interface
	6 * Tuner (DVB-C/T/S/S2/ISDB-T/ATSC); 6 * ASI (optional)
Video	Resolution	1920x1080I,1280x720P, 720x576i, 720x480i
	Trans-coding	4MPEG2 HD → 4MPEG2/H.264 HD ; 4MPEG2 HD → 4MPEG2/H.264 SD ; 8 MPEG2 SD → 8 MPEG2/H.264 SD
		4* H.264 HD → 4MPEG2/H.264 HD ; 4 H.264 HD → 4MPEG2/H.264 SD ; 8 H.264 SD → 8 *MPEG2/H.264 SD
	Rate Control	CBR/VBR
Audio	Trans-coding	MPEG-1 Layer 2 to AAC any-to-any
	Sampling rate	48KHz
	Bit Rate	64Kbps-384Kbps
Stream Out	8SPTS & 1MPTS over UDP, 1000Base-T Ethernet Interface (UDP uni-cast / multicast) /SFP interface
	1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface
System function	LCD & Key board control; web NMS management
	Ethernet software upgrade
General	Dimensions		430mm×405mm×45mm(WxDxH)
	Approx weight		4.8 Kg
	Temperature range		0~45℃(Operation), -20~80℃(Storage)
	Power requirements		AC 110V±10%, 50/60Hz or AC 220V±10%,50/60Hz
	Power consumption		20W

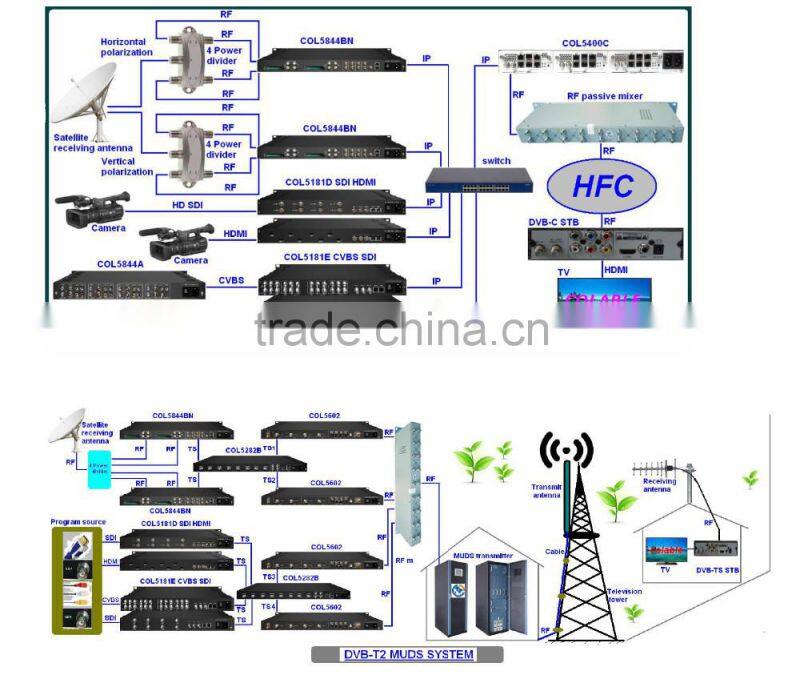

Application system reference:

-IPTV stream Encoder (LAN)

Asking for more information? please feel free to directly chat with Betty.Li

Or move your finger and send an inquiry to Supplier on the right side.

We Colable Electronics co.,ltd

specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
