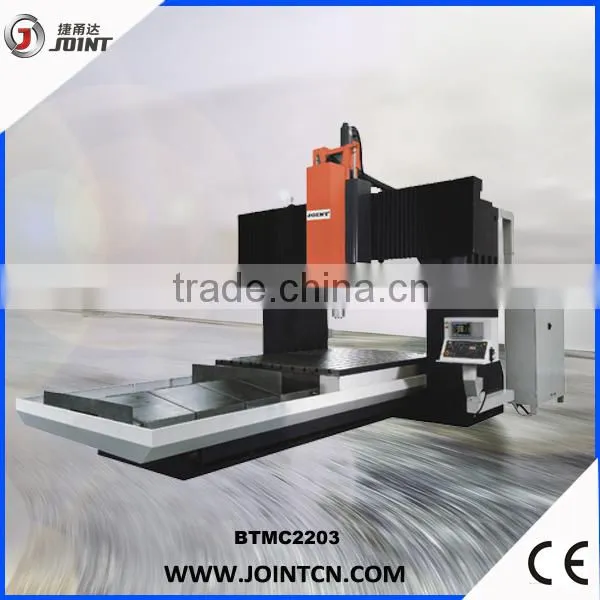

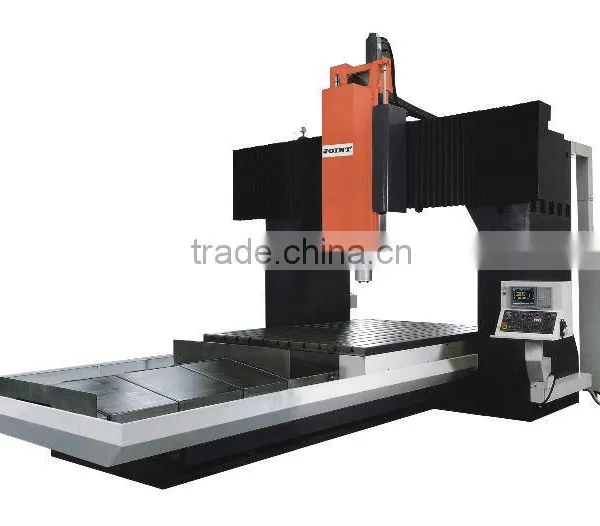

CNC Dragon-frame machining center BTMC-2503 for high accuracy and big mould

Dragon-frame MACHINING CENTER

Specifications

Fanuc /Mitsubishi/Siemens Control system
BT40 Spindle taper
7.5kw Spindle motor
12000rpm Spindle rotation speed

1, Fit for car mould ,engine mould and large screen and other large precise part processing .

2.Dragon frame type machine body, gear head is optional

3.Super high rigid pin roller linear way, embodies the heavy cut rigidity and rapid feed feature

4.Module design and serials products could meet with all kinds of requirement,

Accessories:

1.Standard accessoires:

Control system

Electronic hand wheel

Cover

Auto lubrication of slide way

Coolant system

Operation manual of machine

Operation manual of control system

Cutting fluid and filter system

Stainless steel covers of slide way

Alarming light

Hammer balance

Tool and toolbox

2.Optional accessories:

Milling chuck and tool unlock

Arm type or umbrella type tool magazine

Auto chip conveyor

Oil coolant

The fourth axis NC dividing head or rotary table

Heat exchanger

After-sales service :

warranty is a year , parts are free of charge to be offered during this period ,oversea service need to charged extra in and out of warranty

1.Research and Development team:

We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field

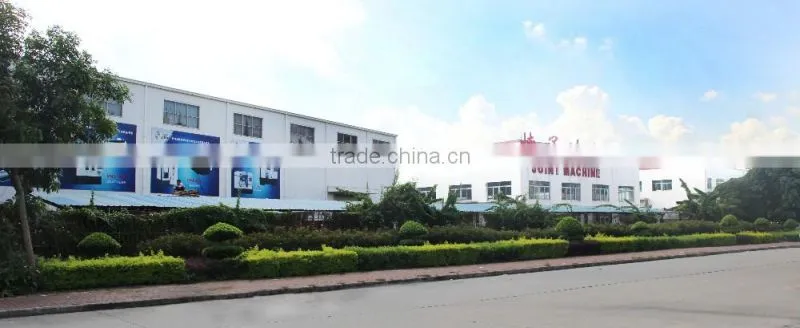

2.Workshop:

Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.

3.Certificate and Honour:

1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.

4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
