CNC Machining

Specifications

Twice precisely scraping
Taiwan original milling head,NSK P4 spindle bearing
Spindle tolerance 0.002mm
Inverter head

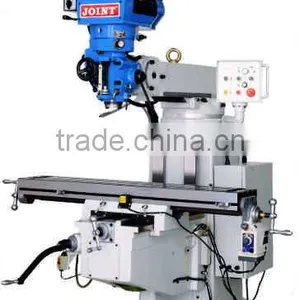

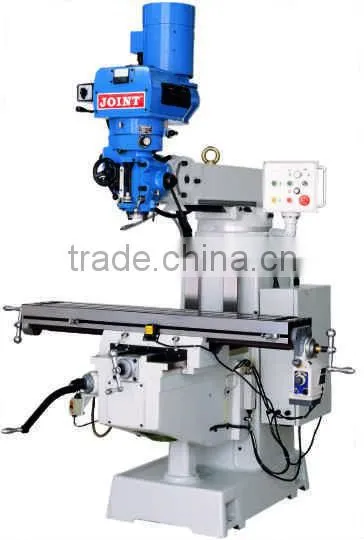

Detailed Product Description

 Twice precisely scraping
Taiwan original milling head,NSK P4 spindle bearing
Spindle tolerance 0.002mm
Inverter milling head

Twice precisely scraping could assure the quality of processing

Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm

Taiwan original milling head, NSK P4 spindle bearing

Spindle tolerance 0.002mm

Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm

Variable speed is available



Specifications:



Table size:                                                            1370*254*90mm

Travel X:                                                                1000mm

Travel Y:                                                                420mm

Travel Z:                                                                390mm

Travel of Spindle Quill:                                             150mm

Max. Distance from the Spindle Nose to Table:         400mm

Spindle Rotation Speed:                                         66-4530RPM(16grades)/50HZ

Spindle Taper:                                                         NT40

Spindle rated Power:                                                5HP

Title Angle Forward and Backward:                           ±45°

                 Left and Right:                                        ±90°

Net wight:                                                                1500KG



Standard accessories:







After-sales services:

Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.







Photo:

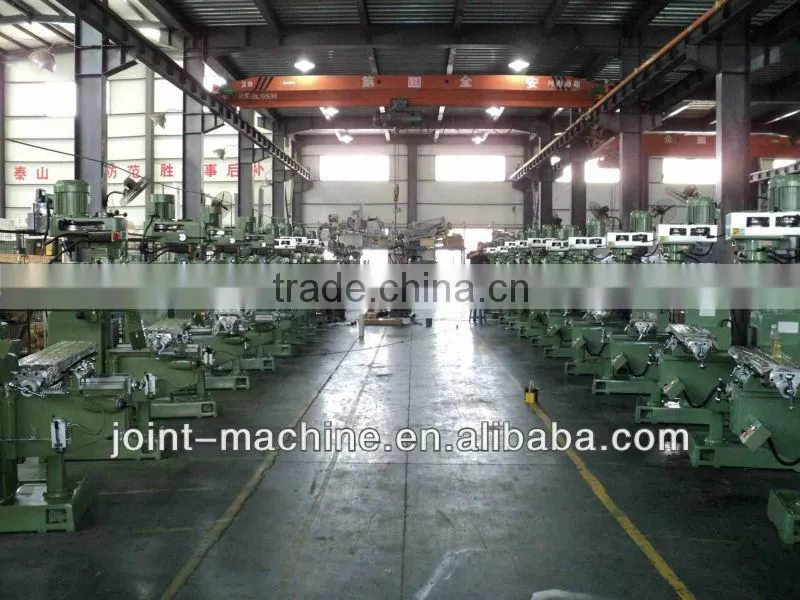

1.Workshop:

Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.







2.Research and Development team:

We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.







3.Certificate and Honour:

1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.

4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.

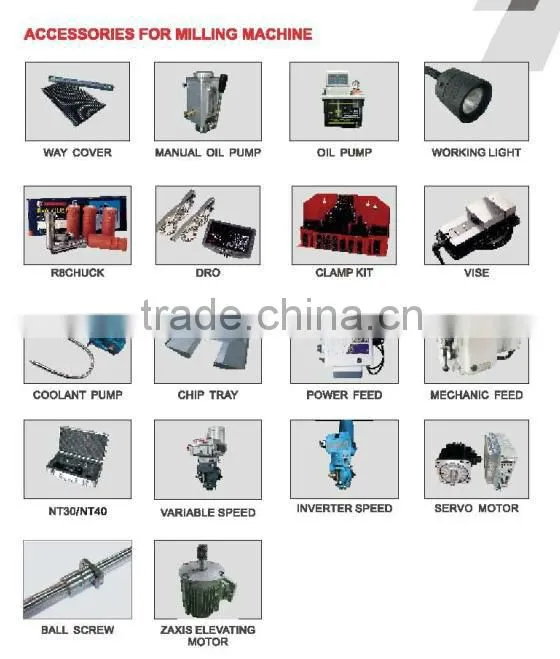

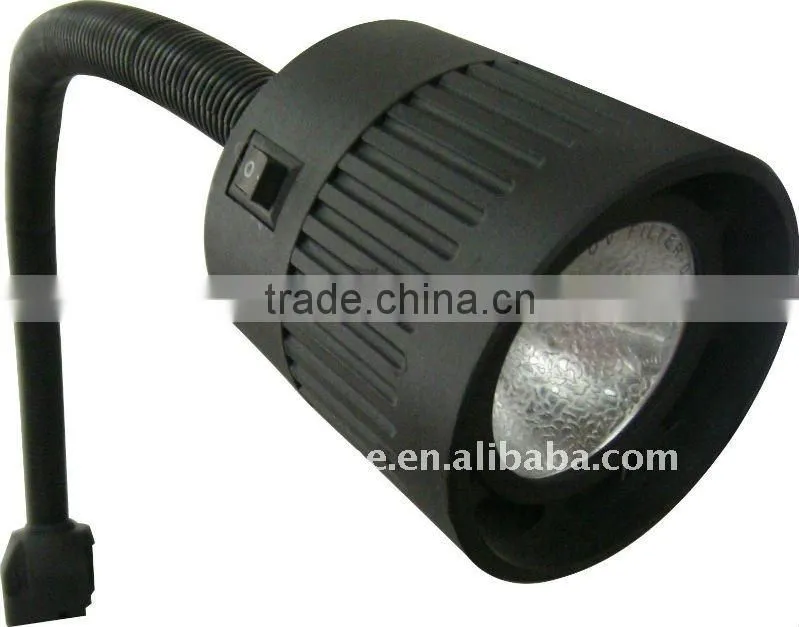

4.Accessories for Vertical milling macine:
