Top quality in low priced high efficiency CE standar small CNC grinding machine
- 300 Set / Sets per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 200mm | |
| Max. Grinding Length | 430mm | Place of Origin | Guangdong, China | |
| Brand Name | JOINT/OEM | Model Number | 200M | |
| Voltage | 220V/380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1610*1120*1645mm | Weight | 780kg | |
| Certification | CE Certification | After-sales Service Provided | No overseas service provided |
Product Description

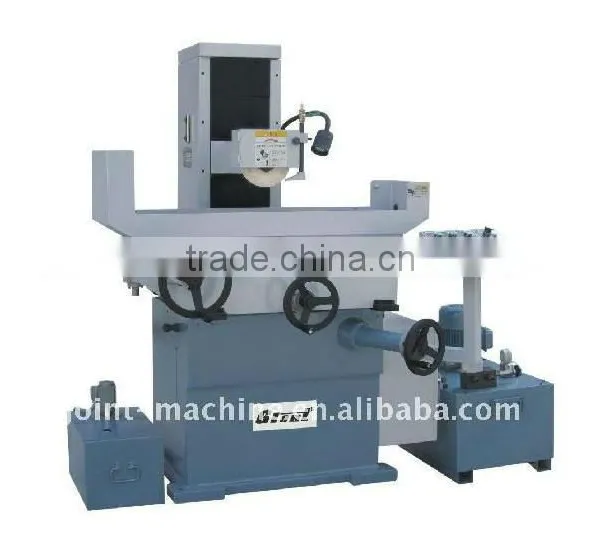

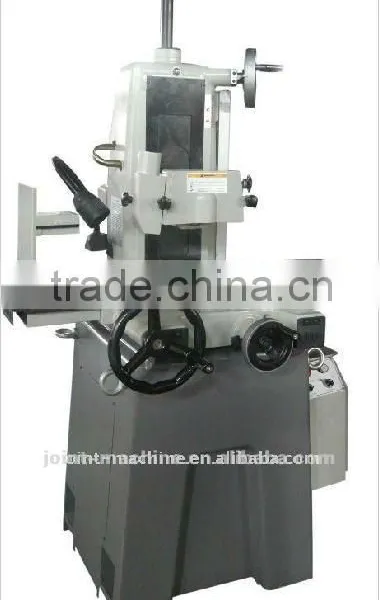

Top quality in low priced high efficiency CE standar small CNC grinding machine
APPLICABLE FOR HIGH·PRECISION PROCESSING
- Durable and precise quality
- Imported high accuracy grinding head
- High quality resinify cast,ageing treatment
- Taiwan High quality hydraulic system and precise grinding head
Specification:Grinding machine 200M
| Model | 200M |
| Table size | 410*160mm |
| Table travel (Longitude) | 430mm |
| Table travel (Crossward) | 200mm |
| Table side way | Ball-slide way |
| Max.distance from spindle center to working table | 445mm |
| Crossward feed of hand wheel (1 Rev) | 4 |
| Crossward feed of hand wheel (1 Div) | 0.02 |
| Vertical feed of hand wheel (1 Rev) | 2 |
| Vertical feed of hand wheel (1 Div) | 0.01 |
| Rotation Speed | 2850rpm |
| Grinding wheel size | φ200*(6-20)*φ31.75 |
| Spindle motor | 1.5*2 |
| Coolant pump motor | 0.12*2 |
| Dust-clean motor | 0.75*2 |
| Dimension (L*W*H) | 1610*1120*1645mm |
| Net weight | 780kg |
Standard Accessories
Grinding wheel
Grinding wheel flange and puller
Wheel balancing test arbor
Diamond dresser with diamond
Machine Lamp
Leveling screw set
Lubrication oil
Operation manual
Test report
tool and toolbox
shackle
After-sales Service
Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
Our Research and Development team
We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research.

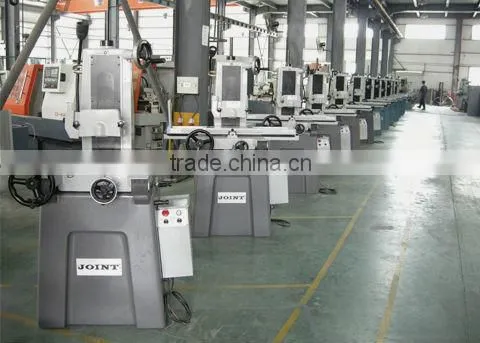

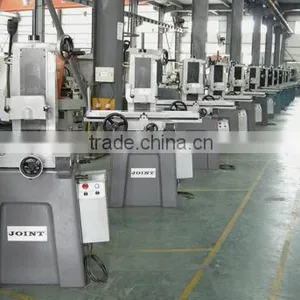

Our production workshop
Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.

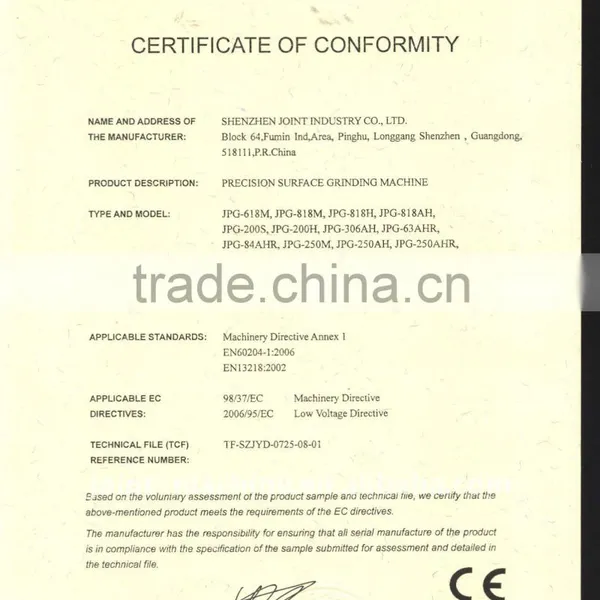

Our certificate of honor
- There are 8 Intellectual property rights,5 the patent.
- In 2008, Our own brand "JOINT" has been the top quality machine’s signal in domestic sales JOINT also has been recognized as "Guangdong Famous Brand".
- In 2008, Milling machine was recognized as "TOP 10 Famous Brand of Milling Machine" in China.
- In 2011,our company has been recognized as "national grade HI-Tech Enterprise".
- The company set up a ISO9001:2000 quality guarantee system.
- Our product through "the country machine quality supervision and inspection center" certification testing.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.
Q: How many years have your company established?
A: 20 years, our company built in 1995.
