Cable Tray Making Machine

Cable Tray Forming Machine

Cable trays are used as an alternative to open wiring or electrical conduit systems which are commonly used for cable management in commercial & industrial construction. We are cable tray roll forming machine manufacture, we produce various of products such as type cable tray, mesh cable tray and ladder cable tray as your requirements. They are especially useful in situations where changes to a wiring system are anticipated.

Our cable tray forming machine makes the cable tray system is used to support insulated electric cables used for power distribution and communication in the electrical wiring of buildings. The raw materials for cable tray are made of galvanized steel, stainless steel, aluminum, or glass-fiber reinforced plastic in generally. The material for a given application is chosen based on the corrosion resistance required for the location.

Our cable tray forming machine can make the different shape of the cable trays as customer's requests.

The cable tray forming machine is driven by double cantilever gears, the width can be adjust continuously, the width can be changed fast.

Main Features

1.Thickness of material :1-2.5mm

2.Forming speed:10-15m/min

3.Total power:15KW

4.Driven type:by Gear

5.Control system:PLC control

6.De-coiler type:Automactic

7.Hydraulic cutting system is controlled by computer

8.The machine will be operated by the auto PLC controlling system, which makes the operation more convenience to be controlled.

9.The profile will be pre-punched then be roll formed, that’s the big different with the traditional production ,which is faster and more safety than the traditional one.

10.Producing different specification can be finished by changing the die, and the bending machine

Full automatic change size by servo motor power

Roller mould :CR12 hard steel

Shaft:Ø 85mm

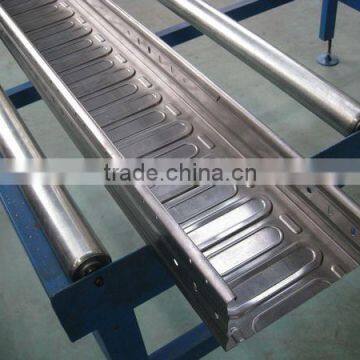

Perforated Cable Tray,

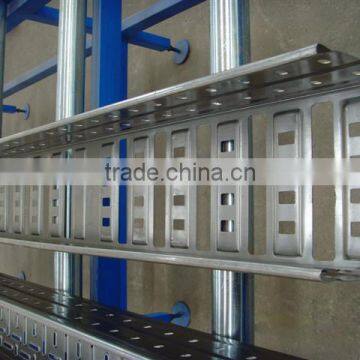

Ladder type cable tray(Normal standard,&Nema standard 16A,20B,20C)

Gird type cable tray/wire mesh cable tray,

Channel type cable tray/ GI cable trunking
