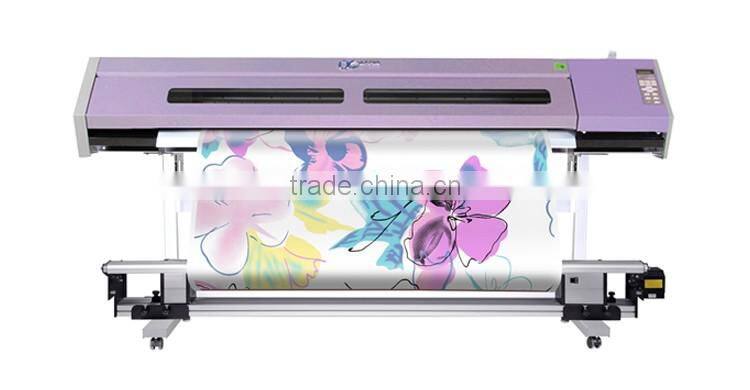

1.6m 8 Colors Digital Sublimation Plotter DX5 Head

1.6m 8 colors digital sublimation Plotter DX5 head

CHAMPION OF STABLE---------

----------- LONG TIME PRINTING

 PRINTER INTRODUCTION



Higher Precision and Mechanical Print Head Adjustment Free

-Automatic Take-up Device (Optional)

-Top-The-Line Standard Original THK Guiding Rail

-Three-Phase Heating for sublimation Printing

-High Quality & Long Duration Motor

-8-Line Independent Ink Supply System

-Automatic Cutter

-Adjustable Print Head Height

-Double 4-Color High Speed Production



 FEATURE



	Intelligent RIP Software   ALPHA printer comes with the intuitive and highly productive RIP and design editor  Photo Print , ONYX or Maintop RIP software, those RIP imports all popular file formats like Adobe Illustrator,PDF’s and JPEG´s.
	Three-Phase Heating for Eco Solvent Printing   The three independent heating systems can assure the proper temperature of  media to improve the image output, and the after heating can speed up the drying  and boost the efficiency of taking up media.
	Advanced Electrical Control System   Smart wide voltage ultra-integrated switch energy saving design, 100V240V   adaptive wide voltage, ensure a long timestable operation of the machine.
	Flawless Print Quality   Equipped with DX5 print head, using a unique and very efficient ” eclosion ” function and 7 variable droplet sizes. ALPHA printer can produce flawless  high quality printouts on a variety of medias.
	Ink Dot Transformation Technology   3 kinds different sizes of the ink point realization of ink dot transformation technology
	Automatic Cutter   With automatic cutter , you can cut your printed jobs easily
	Automatic Cleaning Function    Ensure 24hour printing without worker handle.
	Speed Higher Than Single Head Printer   With two DX5 print head , by coordinating with high quality printer structure, printing speed raising one times,real high speed 35m2/h(4 pass)



 SPECIFICATIONS



Model		TX2601HT
Print Head		Double Heads
Priting Technology		Piezoelectric Inkjet
Media Width		210-1620mm-1.6M
Media Width	Type	Roll or Sheet
	Thickness	Maximum 1.5mm
	Roll Weight	40kg
Ink Cartridge	Type	Sublimation ink
	Capacity	220ml/440ml Refill Cartridge
	Color	Double 4-Color (CMYK)
Ink Supply		Continuous Ink Supply Cartridge
Color Gamut Performance		1670 Million Color
Media Control		Automatic Feeding System and Sheet Cutter
Media Sensors		Paper Sensor & Width Sensor
Print Head Cleaning		Automatic Cleaning and manual cleaning
Programming Language		RD-RTL,RD-PJL
Interface		USB2.9/HIUSB
Power Requirement	During Operation	100V to 240V±10%,50/ 60 Hz
	Sleep Mode	100V to 240V±10%,50/ 60 Hz
Power-saving Function		Automatic Power Saving
Acousic Noise Leve	During Operation	≤65 dB (according to ISO 7779)
	During Standby	≤40 dB (according to ISO 7779)
Package Dimension (with stand)		2680mm(W)x850mm(D)x790mm(H) - 1.6M Printer
Weight(with stand)		148kg ( 1.6M )
Power Consumption		≤1500VA
Environment	Power On	Temperature: 20 to 32°C  Humidity: 35 to 80%RH (non-condensing)
	Power Off	Temperature: 5 to 40°C   Humidity: 20 to 80%RH (non-condensing)
Accessories		Power Cord, Drain Bottle, Manual



 APPLICATION

 FACTORY SHOW

 OUR SERVICE

24-Hour Online Service

Pre-Sales Service                                                            After-Sales Service

*Inquiry and consulting support                                                    * Training how to install the machine and training use

*Sample testing support                                                                * Engineers availa to service machine overseas

* View our factory                                                                             * One year warranty
