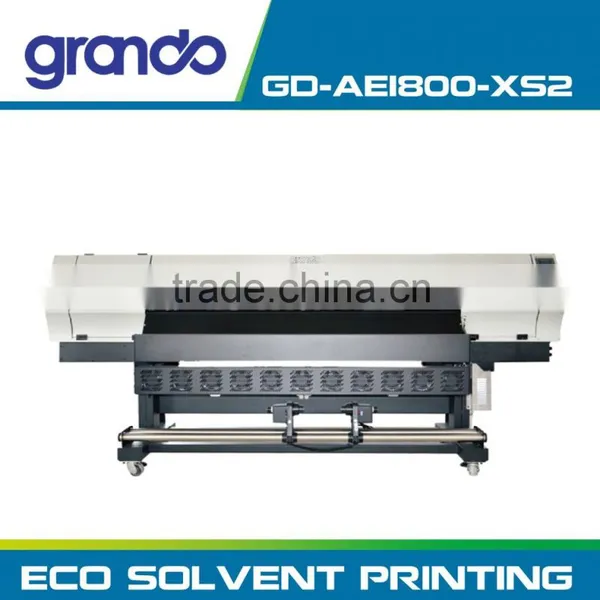

1.8m Eco Solventprinting machine with Double DX5 Printheads

 FEATURE

Piezoelectric Print Head Variable Ink Droplet

With double DX5 print heads of  parallelogram layout, as well as 1440 nozzles for each print head, performs excellently in higher speed and high quality output in 1440dpi.

Min 3.5pl Variable Ink Droplet

User Friendly Mechanical Design

Firm structure enables high speed printing without shake. Adjustable printer stand and feet ensures printer level. Meanwhile, emergency stop button and anticollision device assist customer to make sure printer’s stablity and performance in emergency situations.

Stable Bulk System Ensures Amazing Printing Speed

Ink cartridges of clamping slot type is easy to install and replace, bulk system ensures continuous smooth ink flow and stable printing. Besides, PWC device assists the bulk system to protects the nozzles from being blocked.

High Stablity, High Durablity

All-steel struction, igorous and precise manufacturing process even for a small screw, together with international brands such as THK, ensure the stablity and durablity.



SPECIFICATIONS



Model	GD-AE3200-W2
Printing Method	Piezoelectric Print Head
Print Head	Double DX5 Head
Ink	Water Based Ink
Max Printing Width	184cm
Printing Resolution	540dpi,720dpi,1440dpi
Printing Mode	2psss,3pass,4pass,6pass,8pass,12pass
Printing Speed	68m²/h,53.3m²/h,40m²/h,27m²/h,20m²/h,13.3m²/h
Ink Capacity	1000cc per color
Heating System Three Phase	Yes
Dry System	Standard intelligient infrared ay heating/fan system
Automatic Media Feeding/Rolling System	Standard Configuration
Environment	Temperature 15-32℃   Relative Humidity 35%-80%
Dimension(W*D*H)Weight	4620*970*1560/650kg
