HIGH PERFORMANCE PERFECT COMBINATION ---------
----------- OS6045 Pursues Perfection
| Model | OS6045 Platform Inkjet UV Printer | |
| Print Head | Epson DX5 | |
| Maintenance | Auto cleaning,auto moisture | |
| Resolution | 720dpi,140dpi | |
| Max Print Speed | 10m²/h | |
| Ink | Type | UV curing Ink |
| Color | CMYK/LC/LM,W/V/Solid W/Solid C/Primer | |
| Capacity | 200ml | |
| Media | Type | Plastics,Acrylic,Plank,Metal,Glass etc. |
| Max Width | 600mm*450mm | |
| Max Thickness | 150mm | |
| Max Weight | 20kg | |
| Printing Mode | Uni-Direction.Bi-direction Printing | |
| configuration | RAM | 4GB |
| Installation | 300M | |
| Room | ||
| Interface | USB 2.0 | |
| Power Supply | AC 220-240V 50HZ | |
| Consumption | 4kw | |
| Environment | Temprature | 19°C -29°C (60F-85F) |
| Humidity | 20-80% Rh | |

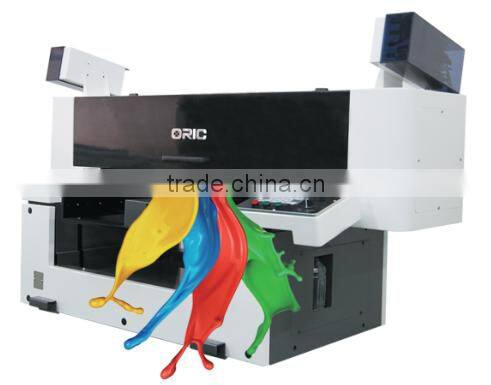

OS6045 Platform Inkjet UV Printer
os6045 platform inkjet UV printer applies the top intelligent technology, combines with the favorable quality of Epson print head .Printer adopts UV curing ink and premier to realize the multiple layers printing; the auto height measurement function ensures the best printing quality, reach the max applied range.
Simultaneous Multiple
Automatic Height Measurement
OS6045 adopts the automatic height measurement system to adjust the distance between the baseplate and the media .make sure that print heads print the best quality in the most proper distance.
Epson 8 Channels Print Head
Epson exclusive intelligence various ink droplet technology prints the smallest ink drop to 3.5pl, print head jets different colors in 8 channels , the grey scale printing technology ensures the details of image vivd and exact.
Speedy and Comfortable Usage
Ink in bag; user can check the ink status and exchange in time ,which makes user experience convenient an efficient
Intelligent Operation Panel
Users can adjust the height of carriage through operation panel , and set up the auto-adjustment function,control the platform air draft switch and UV lamps ,to make operation individualized and humanized.

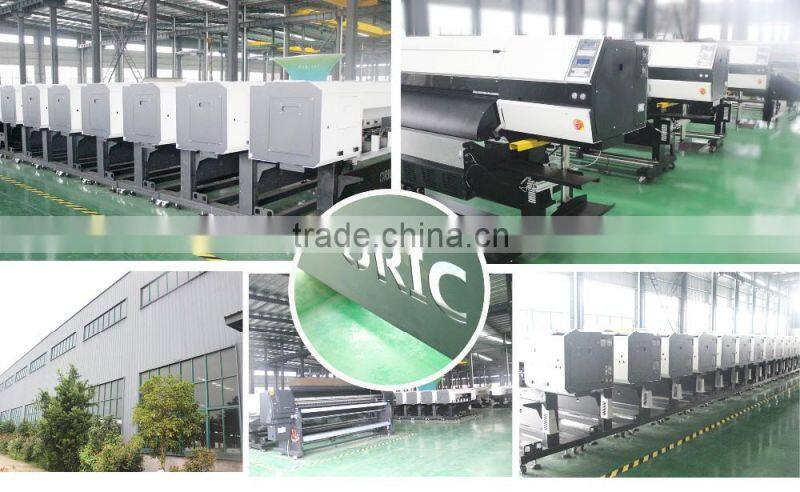

We mainly focus on researching and developing high-speed and high-resolution inkjet printers and control system, our printers and accessories have the honor to earn widespread acclaim by the firmly support of the top R&D team and our own technology. Major products are E series water-based printers, R series UV printer, O series flatbed printers etc. With a strong R&D team, outstanding production management, strict quality control as the carrier, and long-term cooperative partnership with the Ricoh, Agfa, Phoseon and other international well-known enterprises, we provide the most flexible and best service for our customers. We are always adhering to the Environment Protection and People-oriented; aspire to commence new future by our effort on service and products.
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
----- TEXTILE PRINTING SOLUTIONS ----- DIRECT TO GARMENT SERIES
----- UV ROLL TO ROLL PRINTING SOLUTIONS ----- UV FLATBED PRINTING SOLUTIONS
