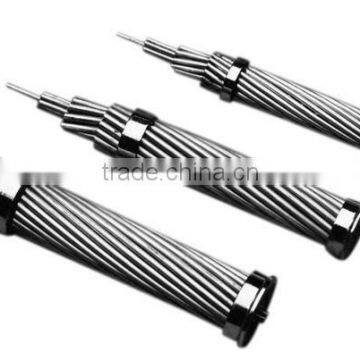

acsr conductor wire

Specifications

ACSR conductor widely used in power transmission lines with various voltage levels.

Aluminium Bare Transmission and Distribution Cable



ACSR: Aluminum Conductor. Steel Reinforced . Bare.



APPLICATIONS

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.
ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without
sacrificing ampacity.



SPECIFICATIONS

Southwire's ACSR bare conductor meets or exceeds the following ASTM specifications:

• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
• B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.
• B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.



CONSTRUCTION

• Aluminum 1350-H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A
galvanized.
• Class A core stranding is also available in zinc-5% aluminum-mischmetal alloy coating.
• For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet
• Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable
with grease.
• ACSR conductor is also available in non-specular.



About us:

Founded in 1987, Henan Tong-Da Cable Co., Ltd has become a modern enterprises that integrates R&D, manufacturing and sales after more than 25 years of construction and development. Now it covers an area of 80,000 square meters with a complete range of equipment for production and inspection and our main products include bare overhead conductor, insulated overhead cables(ABC Cables), high and low voltage XLPE/PVC insulated power cables, pre-branch cables, control cables, mining cables, rubber cables, telephone cables and cat5e, cat6. Besides our own brand, we are also engaged in OEM busnisses,Processing trade and Feeding Processing trade.



Certificate Show:



We can also supply this product according to the other standards or your special request.

Hope to cooperate with your company sincerely!
