Home > Products > all products > Automatic Mesh Welding Machine
Automatic Mesh Welding Machine
- 10 Set / Sets per Month
- Tianjin Shanghai etc
- T/T Credit Card
-
automatic wedge wire wrap welding machine
-
JSB stainless steel water well Johnson screen/wedge wire screen machine
-
NEW Automatic Machinery Wedge Wire Cylindrical Screen Machine
-
wedge wire screen beer filter
-
37mm perfect round wedge wire beer filtration candles
-
wire mesh beer filtration system liquid separation filter
Product Details
| Place of Origin: | Beijing, China | Brand Name: | BJF | Model Number: | BJF-L |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

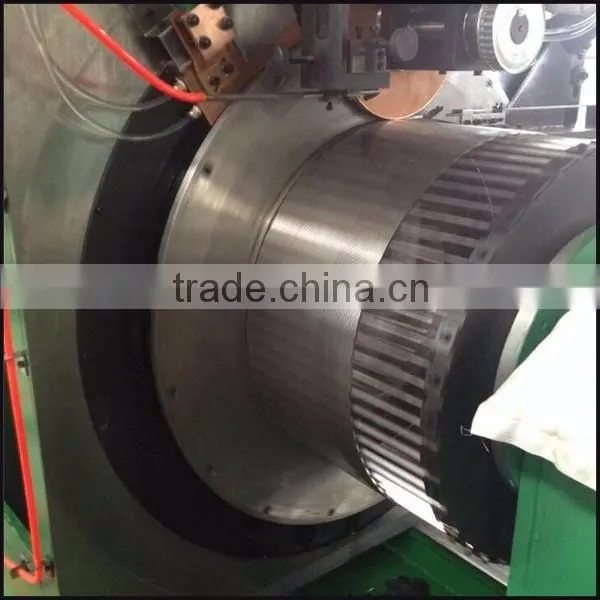

The wedge wire screen welding machine is intended for manufacturing of wedged wire screens in length up to max. 4000/6000mm. The strength, precision and design flexibility that characterize our screens makes them the choice in a broad range of industries and applications. It made up of CNC mainframe, welding transformer, control cabinet and so on.
Images of Automatic Mesh Welding Machine
Spec of Automatic Mesh Welding Machine
Model | φ50-200mm | φ100-400mm | φ400-1200mm |
Power | 3Phase 380V 50Hz | 3Phase 380V 50Hz | 3Phase 380V 50Hz |
Rated Capacity | 100 KVA | 100 KVA | 100 KVA |
Slot Distance | ≥0.1mm | ≥0.2mm | ≥0.25mm |
Canister Length | ≤6000mm | ≤6000mm | ≤4000mm |
Weld Material | Stainless Steel Wire & Low Carbon Steel Wire | ||
V-wire Size | 1.8-5.0mm | 1.8-5.0mm | 1.8-5.0mm |
Support Rod Size | 1.8-5.0mm | 1.8-5.0mm | 1.8-5.0mm |
Overall Dimension | 13000*1500*3300mm | 13000*1600*3400mm | 11000*2100*3800mm |
Weight | 10000KGS | 11000KGS | 13000KGS |
Get more datas, please contact our staff directly. see the below name card
