Home > Products > all products > steel water well casing pipe
steel water well casing pipe
- 30000 Meter / Meters per Month
- Tianjin Xingang Shanghai etc
- T/T D/P D/A Credit Card
Product Details
| Thickness: | 5, 16 | ||||
| Section Shape: | Round | Outer Diameter: | 219 - 2032 mm | Place of Origin: | Beijing, China |
| Secondary Or Not: | Non-secondary | Application: | Other, drill pipe/oil pipe/liquid pipe, etc | Technique: | SAW |
| Certification: | Other, ISO API CE, ISO 9001 | Surface Treatment: | Other, Galvanized, oil paint, polishing, galvanizing, corrosion resistant coating, etc | Special Pipe: | API Pipe |
| Alloy Or Not: | Non-alloy |
Product Description
The spiral welded steel pipe is manufactured using hot rolled steel strip which is spiraled at room temperature to be welded. Automatic submerged arc welding is the most commonly used method in the spiral tube production, and the end products come with welding seam both inside and outside. We can make 3PE coating, epoxy resin coating, and black paint coating for spiral pipes. Our anti rust coating is of good quality. Our spiral welded steel pipe is ideal for transportation of natural gas, water, coal gas, heating steam, and so on. It can also be applied in piling or steel structure construction fields.

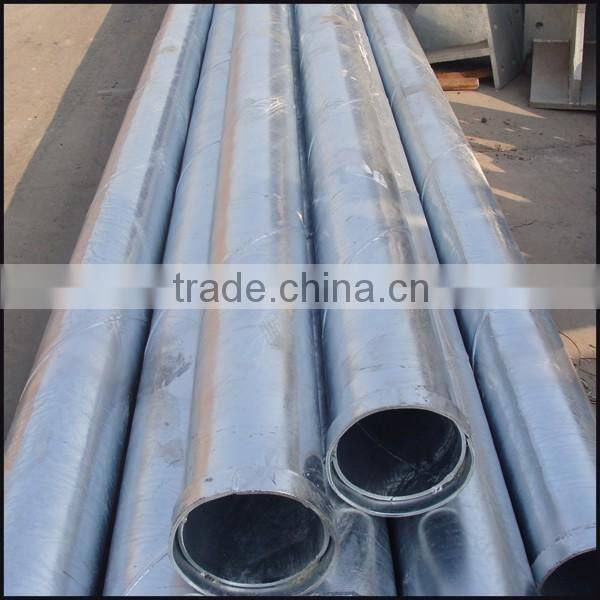

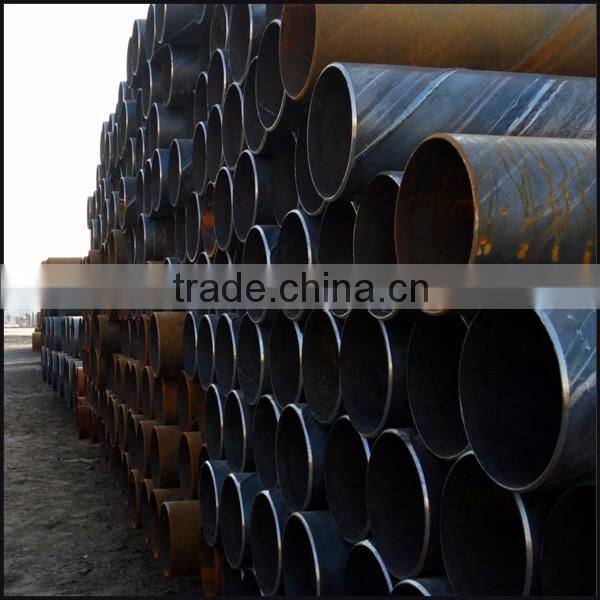

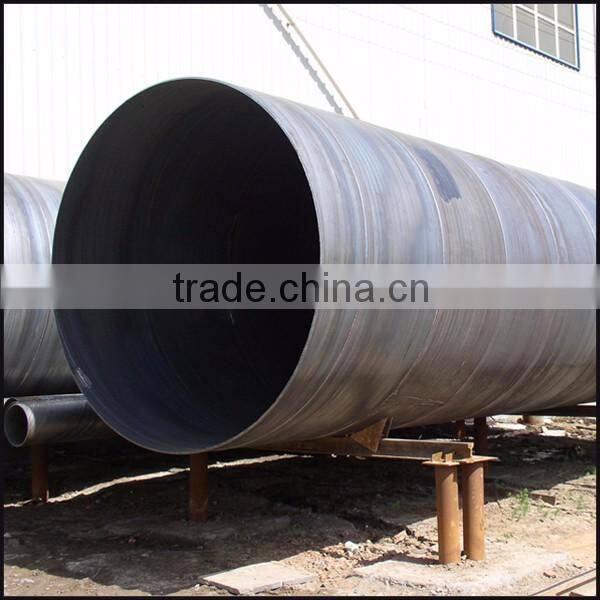

Images of steel water well casing pipe
Specification of steel water well casing pipe
Standard/Material | API5LGr.B,X42~X80; ASTMA252 Gr.2,Gr.3; ASTMA53 Gr.B SY/T 5037-2000;SY/T5040-2000;GB/T3091-2008: Q235B,Q345B,20#,16Mn; GB/T9711.1-1997;GB/T9711.2-1999;GB/T9711.3-2005: L245~L555; EN10217-1,EN10219-1,EN10224 L235,L275,L355; EN10025S235JR,S235JO,S235J2,S275JR,S355JR,S355JO,S355J2,S355K2; DIN 1629 ST37,ST42,ST52 etc. |
Out Diameter | 219mm-1420mm |
Wall Thickness | 2mm-25mm |
Length | 5.8m-12m,or as customer’s requirements. |
Technique | SAW welding |
Surface Treatment | Bared, black painted (varnish coating), galvanized, with oiled, 3 PE, FBE, corrosion resistant coating, etc. as per clients request |
Testing | Mechanical properties testing, Chemical composition analysis |
Inspection | by X-Ray flaw-detecting ,on-line or off-line Ultrasonic flaw detecting; Hydrostatic pressure inspection |
