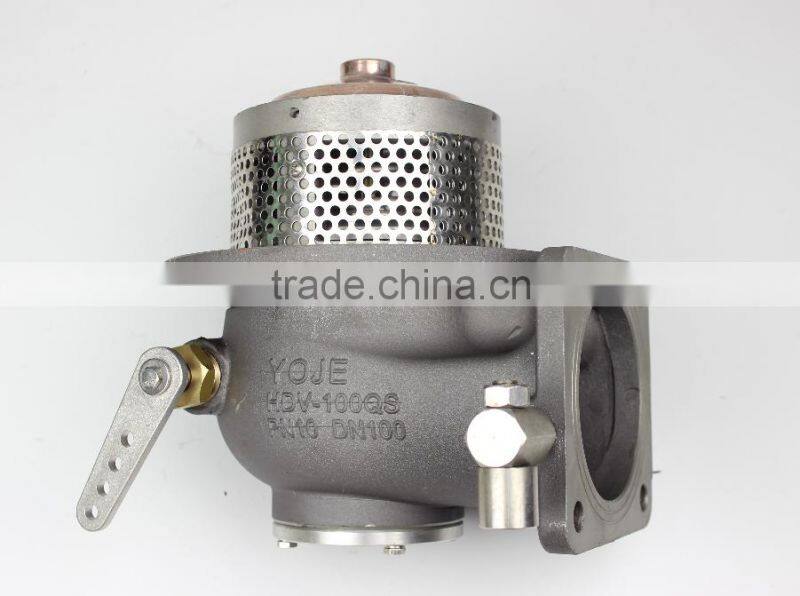

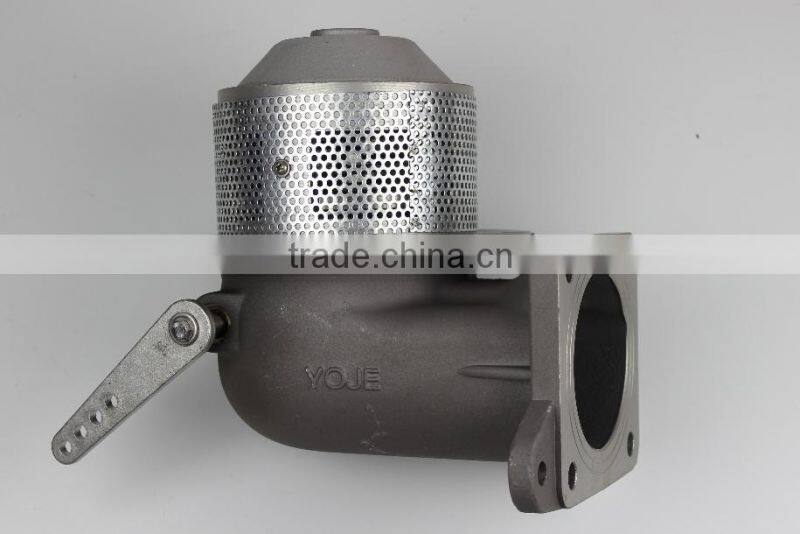

Aluminum Manual emergency valve/ emergency bottom valve
- 1000 Unit / Units per Month
- shanghai or ningbo
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Shutoff | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Alloy | Temperature of Media | Normal Temperature | |
| Media | Oil | Port Size | 4 inch | |
| Place of Origin | Zhejiang, China | Model Number | HDV-100NS | |
| Brand Name | YOJE | Application | Other |
Product Description
manual emergency shutoff valve
installed at the bottom of tanker to connect with flange.
It has efficient design and realize the high flow speed,high fall head in the liquid pipe.
For that,it get the best profit. It can use manual and pneumatic controller to open the bottom valve.
The casting body is design to decrease he weight and improve the fluidity.
Material:
Body: aluminum
Shaft: SS
Seal: VITON
Spring: SS
Feature:
Improve the flow speed and adopt the easy,convenient structure
Easy install,can automatically cut off in emergency
Use the manual controller to open
Fit EN 13083 and flange TTMA standard
Parameter:
Size | 4" |
Flow speed | 2500L/MIN |
Working pressure | 0.6MPA |
Connect way | Flange |
Operate way | Manual |
Temperature | -20 to 70 °C |
