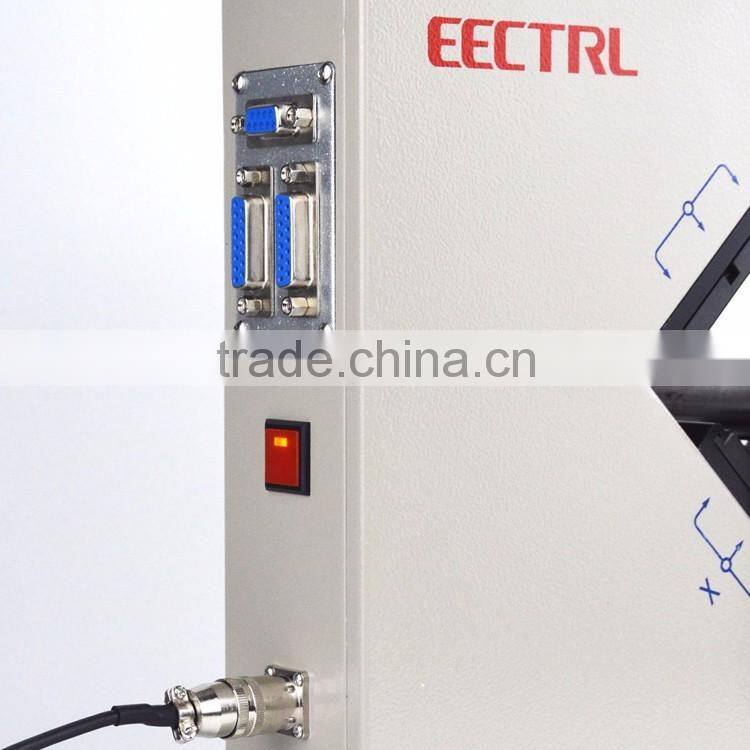

OPMAC 25AL3 3d Cable and Wire Diametr Control 3d Printing Cable Diameter Tester
US$ 1,450 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
EECTRL
Model Number:
OPMAC-25AL3
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI SHENZHEN HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OPMAC 25AL3 Diameter Gauge Laser Scanning Device Kinds of Dimension MeasurementUS$ 1,450 - 2,000MOQ: 1 Set -
OPMAC 50AL3 EXTRUSION CABLE AND WIRE LASER SCANNING DIAMETER MEASUREMENTUS$ 2,200 - 2,500MOQ: 1 Set
-
OPMAC 25AL3-N 3D Filament Diameter Control Device Dimension Measuring InstrumentUS$ 1,450 - 2,000MOQ: 1 Set
-
OPMAC 25AL3-N 3D Filament Diameter Gauge Dimension Measuring InstrumentUS$ 1,450 - 2,000MOQ: 1 Set
-
OPMAC 25AL3-N Filament Diameter Gauge Dimension Control Testing MachineUS$ 1,450 - 2,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
EECTRL
Model Number
OPMAC-25AL3
Size
290*175*62mm
Measurement Accuracy
±1um±0.08%xDz
Measurement Range
0.1-25MM
Product Description
| Instructions | |||||||

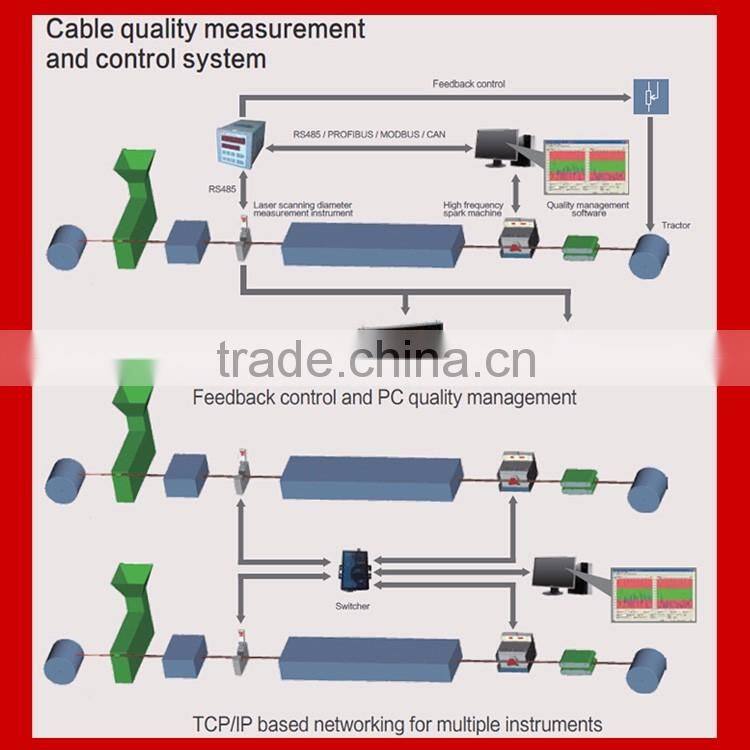

| 1. Suitable for online measurement of various type of | |||||||
| wire, cable, tube and pipee; | |||||||
| 2. Using F optical lenses to avoid the a ect of shaking of the | |||||||
| object; | |||||||
| 3. Multi-function and free rotation operation panel; | |||||||
| 4. Built-in PID module, controlling the diameter of the | |||||||
| object automatically; | |||||||

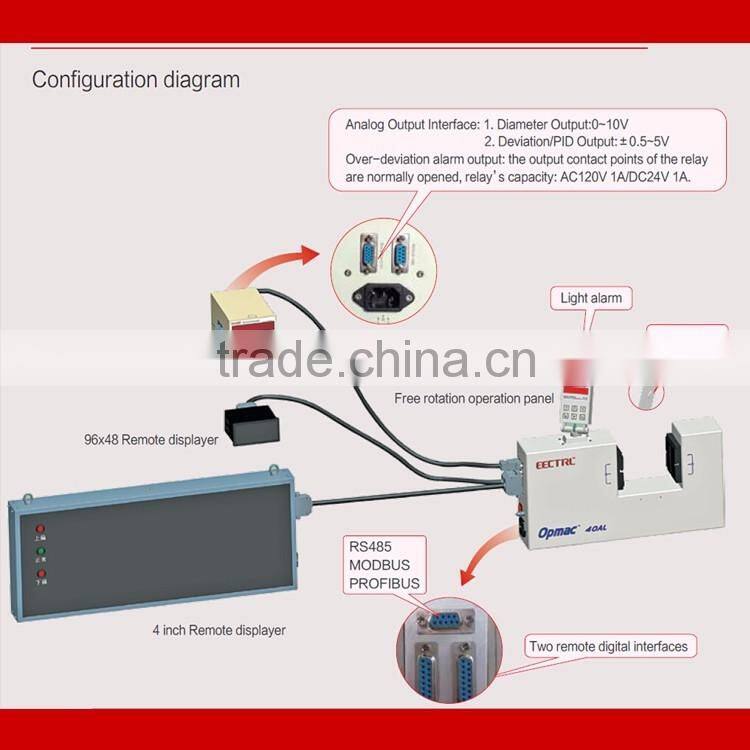

| 5. Two analog output, multiple remote interfaces which | |||||||
| can connect to one controller and two displayers at | |||||||
| the same time; | |||||||
| 6. RS232/485, PROFIBUS DP and MODBUS interface; | |||||||
| 7. Optional quality management software, real-time | |||||||
| recording the diameter of the object; | |||||||
| 8. Adapting to severe environment. | |||||||
| Specififactions | |||||||
| Model | Measuring Method | Range | Resolution | Accuracy | Dimension | Packaging Dimension | Weight |
| Opmac-5AL3 | Single | 0.03-5mm | 0.001 | ±1μm ± 0.008%×XZ | 200*90*90mm | 535*200*355mm | 8.5kg |
| Opmac-5AL4 | Single | 0.03-5mm | 0.0001 | ±0.4μm ± 0.008%×XZ | 200*90*90mm | 535*200*355mm | 8.5kg |
| Opmac-25AL3 | Single | 0.1-25mm | 0.001 | ±1μm ± 0.008%×XZ | 290*62*316mm | 624*224*494mm | 10.3kg |
| Opmac-40AL3 | Single | 1-40mm | 0.001 | ±1.5μm ± 0.008%×XZ | 400*105*344mm | 754*239*549mm | 13.5kg |
| Opmac-50AL3 | Single | 1-50mm | 0.001 | ±1.5μm ± 0.008%×XZ | 500*105*355mm | 715*215*575mm | 15.5kg |
| Opmac-70AL2 | Single | 1-70mm | 0.01 | ±10μm ± 0.008%×XZ | 710*80*188mm | 839*219*619m | 17kg |
| Opmac-90AL2 | Single | 1-40mm | 0.01 | ±10μm ± 0.008%×XZ | 660*80*421mm | 754*214*689mm | 22kg |

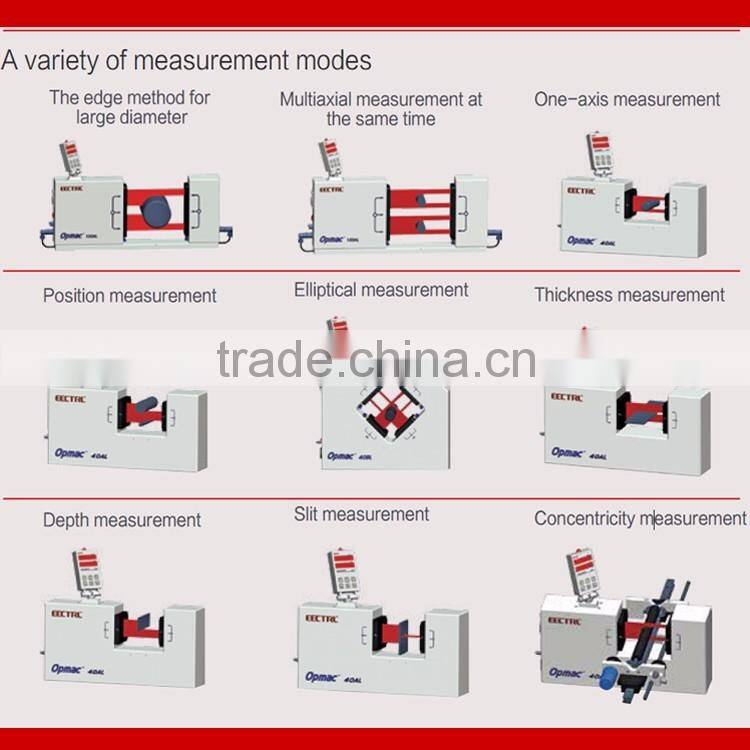

| Edge | 40-100mm | 0.01 | |||||
| Opmac-140AL2 | Single | 1-45mm | 0.01 | ±10μm ± 0.008%×XZ | 597*80*410mm | 754*214*689mm | 35kg |
| Edge | 45-140mm | 0.01 | |||||
| Opmac-250AL2 | Edge | 40-250mm | 0.01 | ±10μm ± 0.008%×XZ | 1180*80*753.5mm | customized | 48kg |
| Opmac-280AL2 | Edge | 40-280mm | 0.01 | ±10μm ± 0.008%×XZ | 1385*80*753.5mm | customized | 52kg |
| Our Adventages | |||||||
| Stable·Accurate·Smart | |||||||
| OPMAC series Laser Scanning | |||||||
| Diameter Measuring Instrument | |||||||
| Since 1989 | |||||||

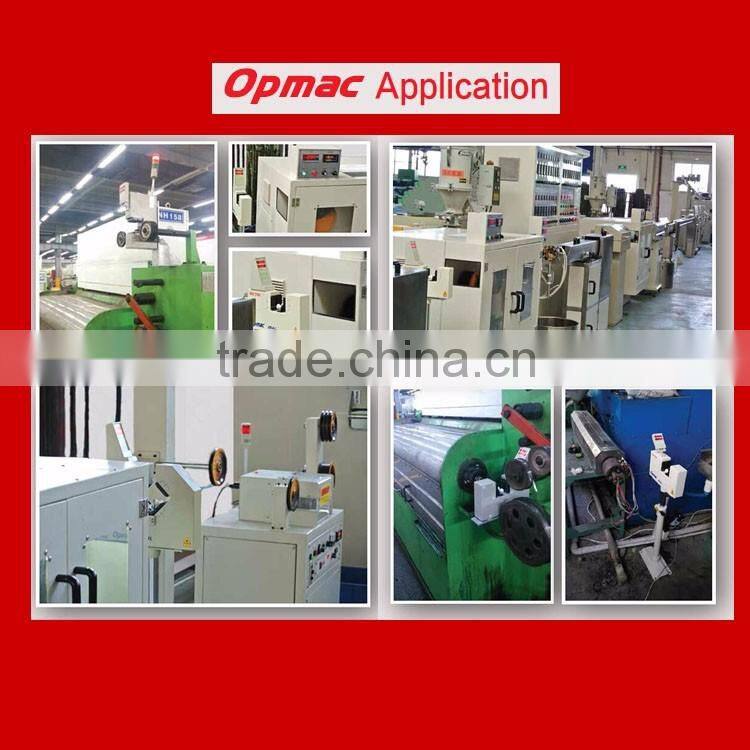

| Ideal choice for online diameter measurement of all kinds of wire, | |||||||
| metal stick, glass pipe, tube, and so on. | |||||||

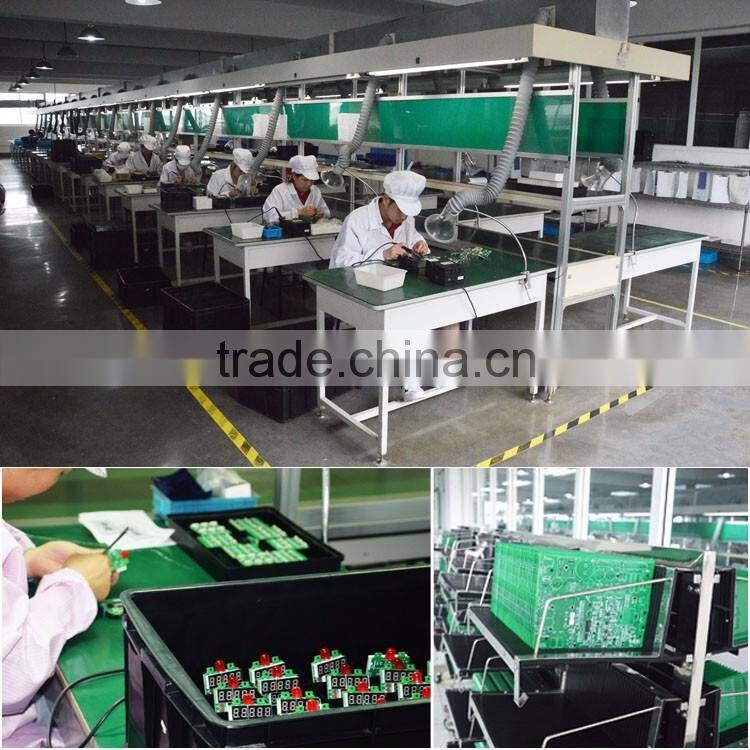

Company Information
