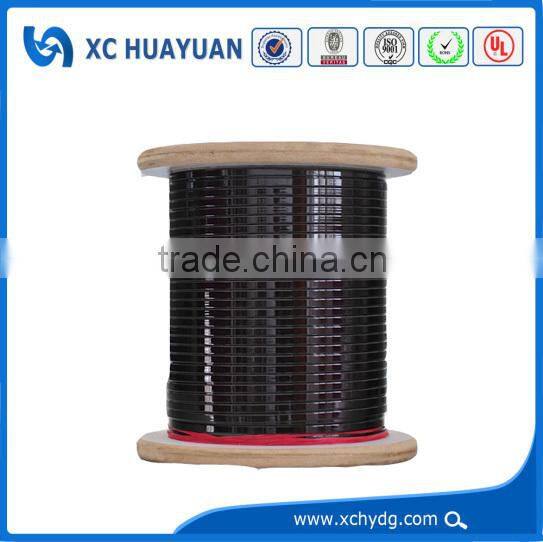

1.0-8.0mm Enameled Aluminum Wire

Name

 enamelled aluminum wire

Model

Q(Z/Y)LB-2/180

Diameter

2mm*6mm

Standard

MW36-A

Test Item

Unit

Technical Requirement

Test Result

Appearance

bright and clean, Uniform color,

Ok

Bare Conductor

a

mm

±0.03

2.01

b

mm

±1%

6.03

Thickness of

insulation film

a

mm

0.102-0.152

0.115

b

mm

0.127-0.178

0.160

resistance

Ω/m

≤0.02785

0.02776

Elongation

>15%

21%

Flexibility and adhesion

15% No cracking

no cracking

Resistance to heat shock

C

200C insulation film no cracking

Tensing 10% half an hour, no cracking

Resistance to solvent

Standard solvent "H" Pencil

2H is ok

Breakdown Voltage

KV

2.5 KV

4.8,4.9,4.6,4.2

package

Meet the export standards

Ok

Quality Control Result

Ok

ELANTAS

Temperature Class
Degrees C

Polyvinyl Formal

Class 105

Polyurethane/Polyamide (Nylon)

Class 155

Polyurethane

Class 155

Polyurethane/Polyamide (Nylon)

Class 180

Polyurethane

Class 180

Solderable Polyester

Class 180

Solderable Polyester/Polyamide (Nylon)

Class 180

Modified Polyester/Polyamide (Nylon)

Class 180

Modified Polyester/Polyamideimide

Class 200

Modified Polyester

Class 200

Modified Polyester/Polyamideimide

Class 200

Modified Polyester/Polyamideimide

Class 220

Polyimide

Class 240

Polyvinyl Butyral Self Bonding over
Polyurethane / Nylon

Class 130

Modified Polyester/Polyamideimide/Bondcoat

Class 180
