NDS2406 30~900MHz DVB-T2 RF modulator

NDS2406 digital head end transmitter system NDS2406 30~900MHz DVB-T2 RF modulator

Outline

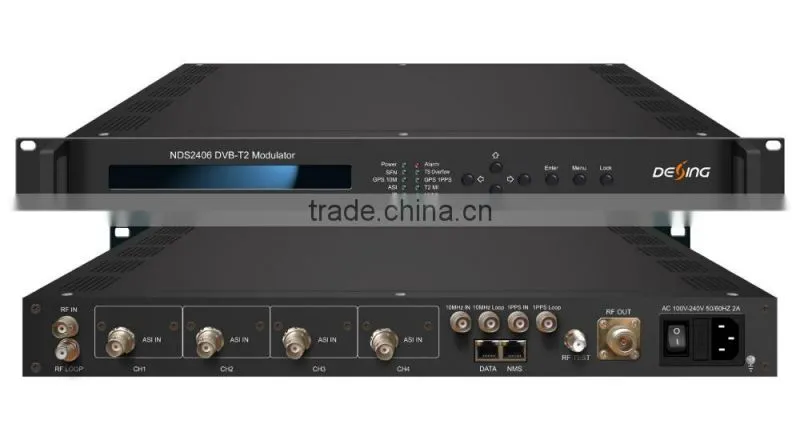

NDS2406 (NDS2406A) DVB-T2 modulator is our new product developed complying with the DVB-T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold. NDS2406 (NDS2406A) DVB-T2 modulator also supports single-PLP and MI (T2-MI) interface, and can receive transmission data and synchronous information from DVB-T2 Gateway through its ASI and IP ports.

Moreover, this device can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T2 STB.

Features

1. Fully complying with EN302 755 standard
2. 4 ASI input (3 for backup)
3. T2-MI over IP input (Option)
4. 10MHz input/loop out, 1PPS input/loop out
5. DVB-T2 RF output
6. Supports single PLP, multi-PLP (Option)
7. Support MISO and SISO
8. Support QPSK/16QAM/64QAM/256QAM (normal or rotated)
9. Support TS format: T2-MI (Option) or TS (Mode A)
10. High performance output: MER>43dB, shoulder level>56dB
11. Output signal bandwidth: 5M, 6M, 7M, 8MHz
12. Support MFN and SFN (Option) net mode
13. Supports non-linear and linear digital pre-distortion (DPD)
14. RF output level: -25~+3 dBm, 0.1db stepping
15. Constant temperature crystal oscillator, as high as 0.1ppm stability
16. Support online upgrade
17. Keyboard operation and LCD display
18. Web Network management system

Specifications

                    Shoulder Level with DPD Disabled   vs   Shoulder Level with DPD Enabled

                                                MER

Principle Chart
