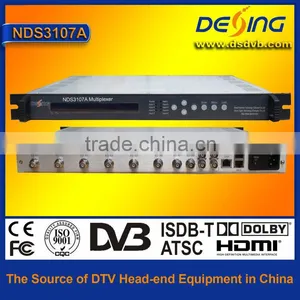

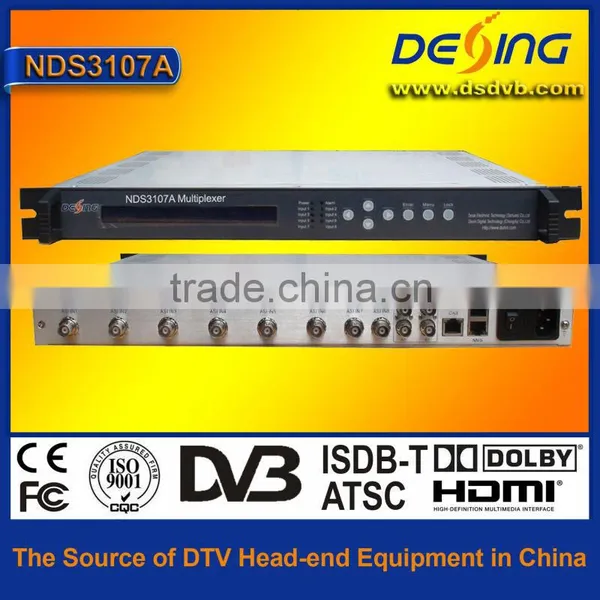

NDS3107A ASI IP out 8 channel multiplexer

Specifications

8 channel multiplexer
2.Two IP outputs (the copies of 2 ASI outputs)
3. support PSI/SI editing

NDS3107A 8 channel multiplexer

1.1 Outline

NDS3107A Two channels IP output multiplexer is an enhanced TS re-multiplexer for digital TV broadcasting head-end system. The multiplexer has all the functions of normal TS multiplexer, including programs multiplexing, PSI/SI editing, PID re-mapping, service filtering etc. The multiplexer can insert EPG (Electronic Program Guide), CA (Conditional Access) and data casting information into each output stream. Different from normal multiplexer, this multiplexer has 8 ASI inputs, 2 separate ASI output ports and 1 Gigabit IP output with two separate channel. The bit rate of output stream can be up to 216Mbps.

1.2Features

l  Fully complying with ISO13818 and EN300 468 standard

l  Integrated demodulating and multiplexing functions

l  8 ASI (6 tuner and 2 ASI optional)(DVB-C/S/S2/T optional)inputs

l  MPEG-2 transport stream re-multiplexing

l  SPTS and MPTS code stream multiplexing

l  PCR correcting and PID re-mapping

l  Two groups of separate TS outputs (each group has 2 channels)

l  Two IP outputs (the copies of 2 ASI outputs)

l  PSI/SI editing

l  Huge buffer memory for saving the overflowing code stream

l  Supporting to multiplex one program to all outputs

l  Alarming function

l  Network long-distance upgraded

l  With high reliability design and stability operation

l  Full keyboard operation and LCD display

l  Network management system

1.3 Specifications



Input interface	ASI	8 ASI (6 tuner and 2 ASI optional) inputs (DVB/C/S/S2/T optional) (Up to 214Mbps per channel)
Re-multiplex		MPEG-2 TS re-multiplex
		PID re-mapping (auto/manual optional)
		PCR correction
		Automatic generating PSI/SI table
Input	Packet format	204/188 self-adaption
Output port	ASI	2 groups of separate outputs (each group has 2 channels)
	IP	2 channels of separate IP outputs (share one GE Ethernet port)
PID	Output range	0000—1FFF
	PID transparent	Any PID transparent and mapping achievable
	Amount of output PID per input	256
NMS port	Ethernet port	10/100M
General	Demission	482mm×410mm×44mm
	Weight	6kg
	Temperature	0~45°C(operation),-20~80°C(storage)
	Power supply	AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz
	Consumption	18W
