MPEG4 to MPEG2 IP transcoder

Specifications

IP transcoder
HD to SD transcoding
MPEG4 to MPEG2 transcoding

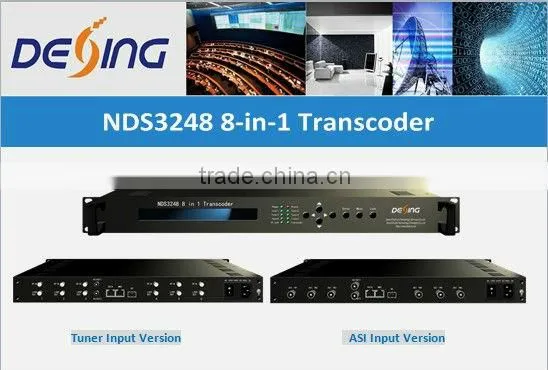

 NDS3248 IP transcoder

Brief Introduction

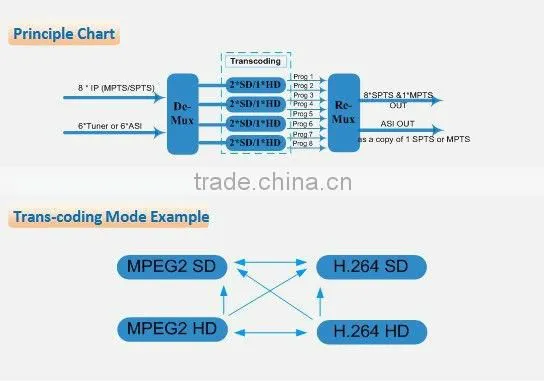

NDS3248 is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.



This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.

It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.





Key Features



Support 8 * IP (SPTS/MPTS) input plus 6 tuners input

- Or 8 * IP (SPTS/MPTS) input plus 6 ASI input

Support 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI output



Audio Trans-coding: AAC and MPEG-2 any-to-any or pass-through

Support maximal 8 SD or 4 HD programs trans-coding

Support maximal 8 channel audio trans-coding

Supporting 1920x1080I, 1280x720P, 720x576i, and 720x480i resolutions

Supporting CBR and VBR rate control

Advanced re-multiplexing

LCD & Key board local control; web NMS management











Stream In	MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/ SFP interface
	6 * Tuner (DVB-C/T/ISDB-T/ATSC); 6 * ASI (optional)
Video	Resolution	1920x1080I,1280x720P, 720x576i, 720x480i
	Trans-coding	4*MPEG2 HD → 4*MPEG2/H.264 HD ; 4*MPEG2 HD → 4*MPEG2/H.264 SD ; 8 *MPEG2 SD → 8 *MPEG2/H.264 SD
		4* H.264 HD → 4*MPEG2/H.264 HD ; 4* H.264 HD → 4*MPEG2/H.264 SD ; 8* H.264 SD → 8 *MPEG2/H.264 SD
	Rate Control	CBR/VBR
Audio	Trans-coding	MPEG-1 Layer 2 to AAC any-to-any
	Sampling rate	48KHz
	Bit Rate	64Kbps-384Kbps
Stream Out	8*SPTS & 1*MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast)  /SFP interface
	1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface
System function	LCD & Key board control; web NMS management
	Ethernet software upgrade
General	Dimensions		430mm×405mm×45mm(WxDxH)
	Approx weight		4.8 Kg
	Temperature range		0~45°C(Operation), -20~80°C(Storage)
	Power requirements		AC 110V±10%, 50/60Hz or AC 220V±10%,50/60Hz
	Power consumption		20W



Order Information

Version	4 ASI or Tuner Input	6 ASI or Tuner Input	IP Input
Simple Version
Advanced Version
