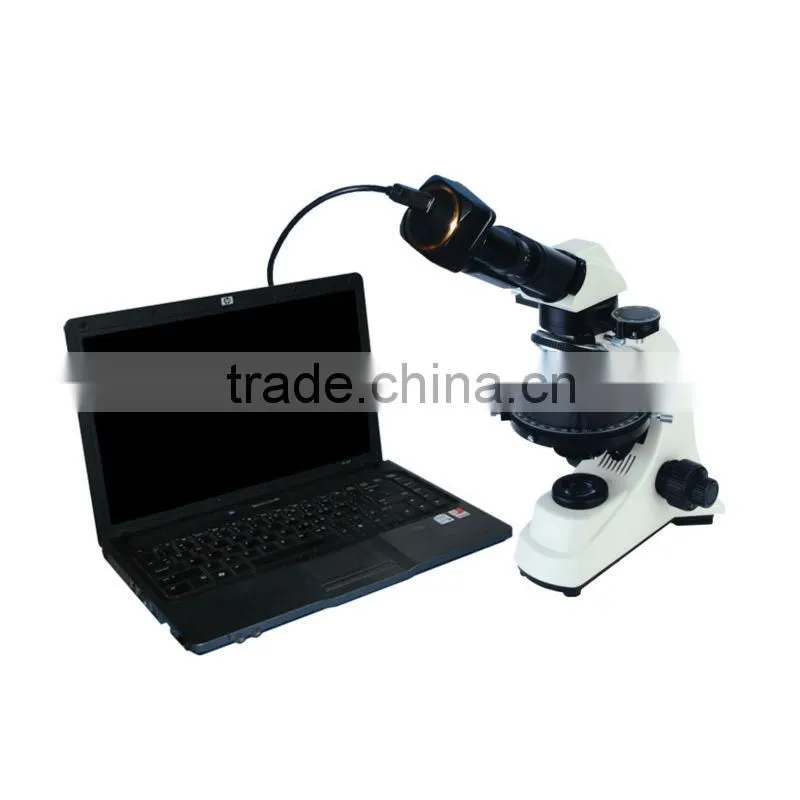

DBMVV3000C-500P digital polarizing microscope

FOB Price

Negotiable / Set

10 Sets(Min.Order)

Supply Ability 2000 Set / Sets per Month
Port Hangzhou Shanghai Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	Future Optics	Model Number:	DBMVV3000C-500P
Theory:	Video Microscope

Product Description

Specifications

Built-in achromatic relay lens
polarizing microscope
15fps@2048*1536
Win8,Mac
Future Win Joe image software

♦Applications:

a polarizing microscope uses polarized light to study anisotropic materials such as identifying crystals or fibers suspended in liquid, identifying minerals in core samples and detecting defects in semiconductors or finding stress points in metal, glass and other materials.

♦Functions:

1. To capture images for living show, for shoot and for video recording;

2. To improve image quality by adjusting the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting;

3. To measure and to compare.

♦Benefits:

1. Easy installation, convenient operation;

2. Wide field and bright image;

3. Compatibilitywith Win/MAC;

4. High resolution image of 2048*1536 for preview, picture shoot and video recording;

5. High frame rate .

♦Quality control:

CE issued by SGS laboratory Verification No. SHEMO0808001971T01C

FC issued by SGS laboratory Verification No.SHEMO081100389IT01C

ROHS issued by POCE laboratory, Verification No.POCE13072325TCR

ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M

♦Main specifications:

Digital eyepiece	3.0 MP USB digital camera equipped with built-in relay lens
Active resolution of sensor	2048*1536
Sensitivity	1.4V/ lux-sec
Dynamic rage	70.1 dB
Frame rate	15fps@2048*1536
Total magnification (optical eyepiece loaded )	40X, 200X, 400X, 600X
Equivalent magnification of digital eyepiece	28X (17” LCD screen display pixel size: 0.2625mm )
Total magnification (digital eyepiece loaded )	112X, 560X, 1120X, 1680X
Optical eyepiece	Plan eyepiece: 10X-18mm and 10X-20mm; 10X -18mm and 10X-20mm with reticle(0.1mm)
Achromatic objective (DIN45mm)	Infinite strain free achromatic objective:4X/0.1,10X/0.25,20X/0.4, 40X/0.65 (spring loaded tip), 60X/0.8(spring loaded tip)
Condenser	N.A> 1.25 Abbe condenser with Iris diaphragm and filter holder
Analyzer	Rotatable analyzer with lock device
Bertrand lens	Built-in center adjustable Bertrand lens
Viewing head	Binocular head 30 rotatable
Nosepiece	Quadruple nosepiece with positive click stopper
Optical compensator	λ lip , 1 /4 λ lip, Quartz wedge
Revolving round stage	Center adjustable and rotatable , diameter 156 mm with 1 division and 6’increments
Polarizing device	Rotatable polarizer with scale
Illumination	Adjustable halogen bulb 6V / 20W
CD of software	Future Win Joe imaging software with movable reticle
Reticle slide	Calibration micro ruler 10mm / 0.01mm
Packing	Carton size: 54.5cm X 39.5cm X 43.5cm
