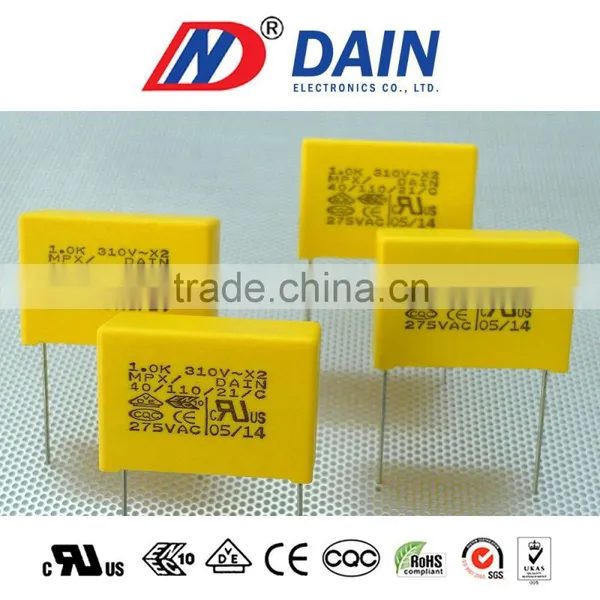

Metallized polypropylene 155j 3.3uf 250v 0.01uf 630v film capacitor

Name: Metallized polypropylene 155j 3.3uf 250v 0.01uf 630v film capacitor
Brand: DAIN
Availability: InStock

FOB Price

USD $0.027 - $0.62 / Piece

3000 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Taiwan	Brand Name:	DAIN	Model Number:	MPF
Type:	Polypropylene Film Capacitor	Application:	General Purpose	Package Type:	Other
Capacitance:	0.01~4.7MFD	Rated Voltage:	DC 250V, 400V, 630V	Operating Temperature:	-40~+85

Metallized polypropylene 155j 3.3uf 250v 0.01uf 630v film capacitor

Product Description

Specifications (IEC60384-16)

Test items

Performance

Test Method

7-1

Withstand voltage

(Between Terminals)

Shall be no abnormality

150% Of Rated Voltage, 60sec.

Between terminal and

Enclosure

Shall be no abnormality

UR×200%+1000VDC, 60sec.

No	Test items	Performance	Test Method
7-2	Insulation resistance (Between Terminals)	C_R≤ 0.33uF IR≥15,000MΩ C_R > 0.33uF IR≥ 5,000 MΩ÷C(uF)	Measured at 100±15VDC, For 60sec / 25 C
7-3	Capacitance	Within the tolerance specified	1KHz, 1Vrms Max. at 25 C
7-4	Dissipation Factor	0.001 (0.1%) Max.	1KHz, 1Vrms Max. at 25 C
7-5	Tense Strength of Terminal	No wire breakage and No Damage of Capacitor	1. Load Force : 1.0 Kg 2. Holding Time : 10 ± 1sec
7-6	Bending Strength of Terminal	No wire breakage and No Damage of Capacitor	1. Load Force : 0.5 Kg 2. Bending Time : 4 x 90° in 5sec

No	Test items	Performance	Test Method
7-7	Solder-ability	1. Appearance : No Visible Damage 2. Covering an area of > solder 95%	Soldering Peocess 1.Capacitor preheating temperature of T < 120 ℃ 2.Preheating time capacitor t< 5 min Single wave soldering 1.Solder temperature: 270±5℃ 2.Solder time: 2±0.5sec
7-8	Heat Shock test	(1) Appearance : No Visible Damage (2) Withstand Voltage : Normal (3) Capacitance Change : ≤ ±3% of The Initial Value	The terminal of capacitor shall be immersed in the melting solder. a. Solder temperature: 270±5℃ b. Solder time: 3±0.5sec c. Test Voltage: 100% of The Rate Voltage For 1min.
7-9	Cold Resistance	(1) Appearance : No Visible Damage (2) Capacitance Change : ≤ 0~ -10% of The Initial Value	a. Test Temperature: -40℃ b.Test Times: 2Hrs
7-10	Dry Heat Resistance	(1) Appearance : No Visible Damage (2) Withstand Voltage : Normal (3) Capacitance Change : ≤ +5~ -2% Of The Initial Value	a. TEST TEMPERATURE: 85℃ ± 2℃ b. Test Times: 2Hrs

Machinery Equipment

◊ Machinery and Equipment

◊Testing Instrument

Buying Guides

Lead time	14-35 days (If no stock) ; but it can be change by your request
Payment	T/T in advance
Shipping way	By SEA, AIR, Express
