Dongyue BLOCK making machine Jaw crusher for AAC production line
USD $1 - $1,000,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- China Qingdao port
- T/T
You May Like
-
Aerated Concrete AAC Block Plant for sale
-
ac brick factory aerated autoclaved concrete plant light aac block making equipment dongyue machinery group
-
aerated autoclaved concrete block making machines in India
-
lightweight concrete blocks manufacturing process
-
ALC panel line Autoclave flyash and sand aerated brick machine AAC white panels and blocks
-
lightweight brick White blocks and panels light weight block making machine aac
Product Details
| Condition: | New | Type: | Other, AAC block prduction line | Brick Raw Material: | Sand |
| Processing: | Brick Production Line | Method: | Autoclaved Aerated Concrete | Automatic: | Yes |
| Capacity: | 50000,100000,150000,200000,300000CBM*3/year | Place of Origin: | Shandong, China | Brand Name: | DONGYUE |
| Model Number: | AAC block | Voltage: | 380/50HZ/3Phase | Power: | 280KW |
| Dimension(L*W*H): | 3500x2220x2850mm | Certification: | ISO9001/CE/SGS | Warranty: | 1 year, one year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Dongyue BLOCK making machine Jaw crusher for AAC production line
Product Description
| AAC Production Line |
| Introduction |
Our company is a high-tech enterprise in Shandong Province with technology research and development center, and has been applied for the establishment of the National Technology Enterprise Center and postdoctoral workstation. The annual output of more than 5,000 units of block machine, aerated block and panel production line of more than 500. Annual capacity of 10-40 million cubic meters of Aerated block machine and Aerated block production line. |

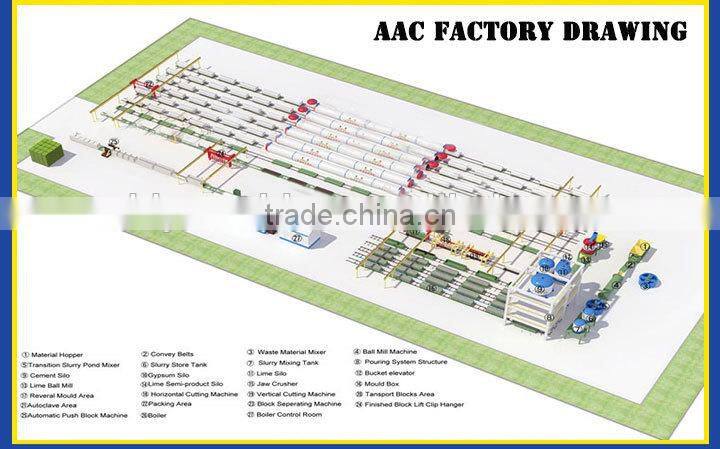

Production Flow
| Process of Production Line |
| Raw material storage |
| Fly ash, sand, cement, lime, gypsum or aluminum paste should be stored separately in the materials stock yard, where they are transported to workshop when needing them. |
| Raw material dealing |

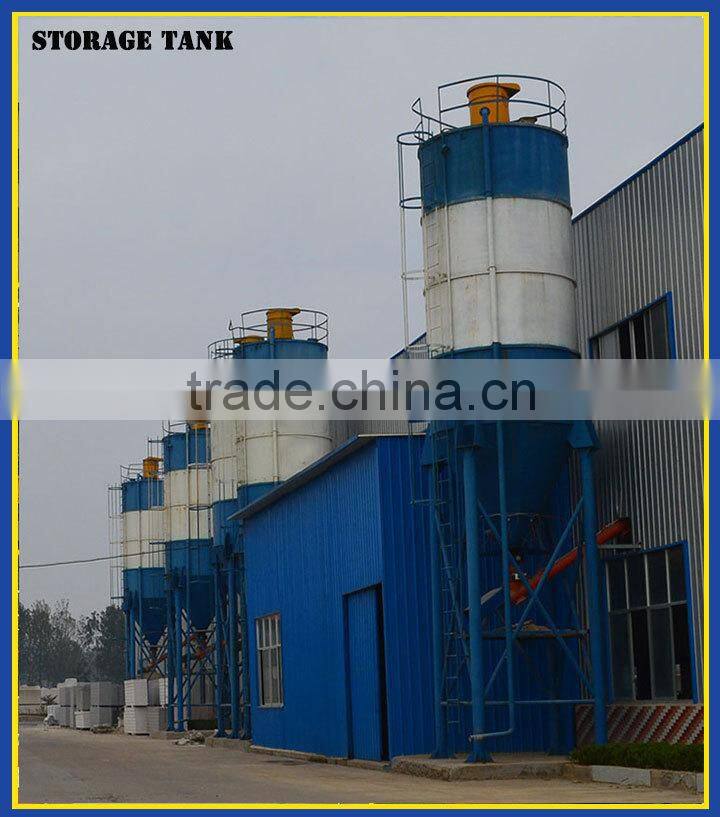

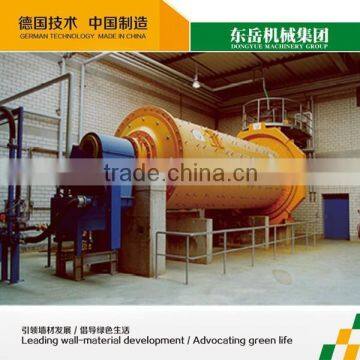

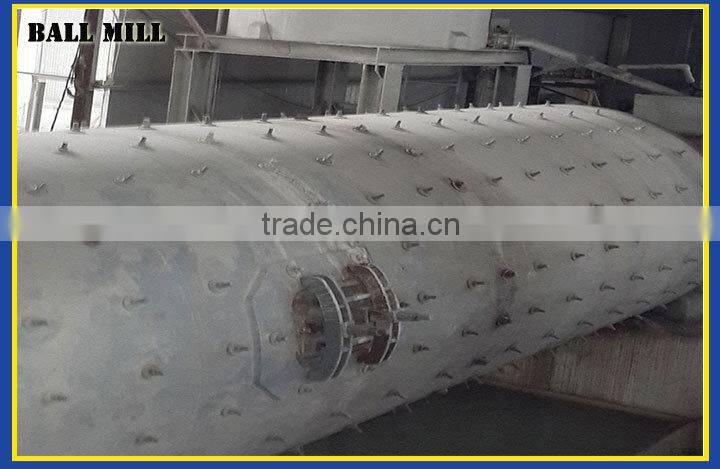

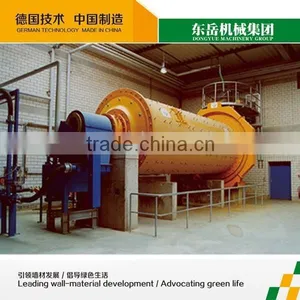

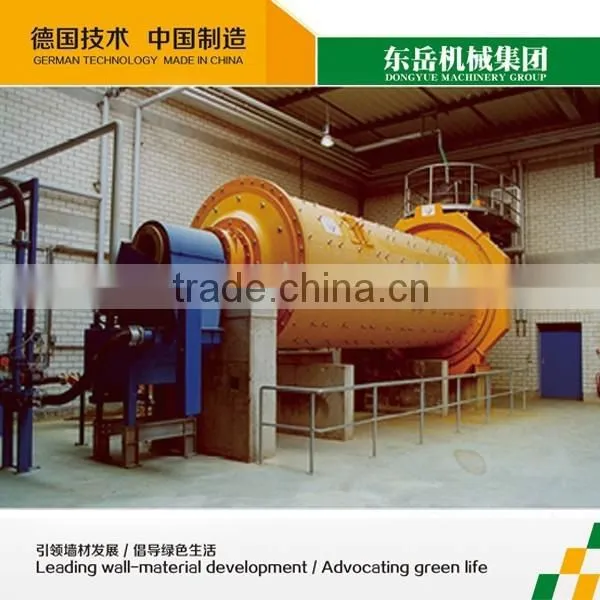

| Put the material such as fly ash or sand into the ball mill via the conveyor belt. After milling, put the slurry into the storage tank by slurry pump. |
| Batching, mixing and pouring |
| The lime, cement will be conveyed by conveyor to the dry powder measure scale to scale separately. The slurry is conveyed by slurry pump to the automatic scale. Slurry is put into the mixer, then poured into the mould. |
| Curing &Cutting |

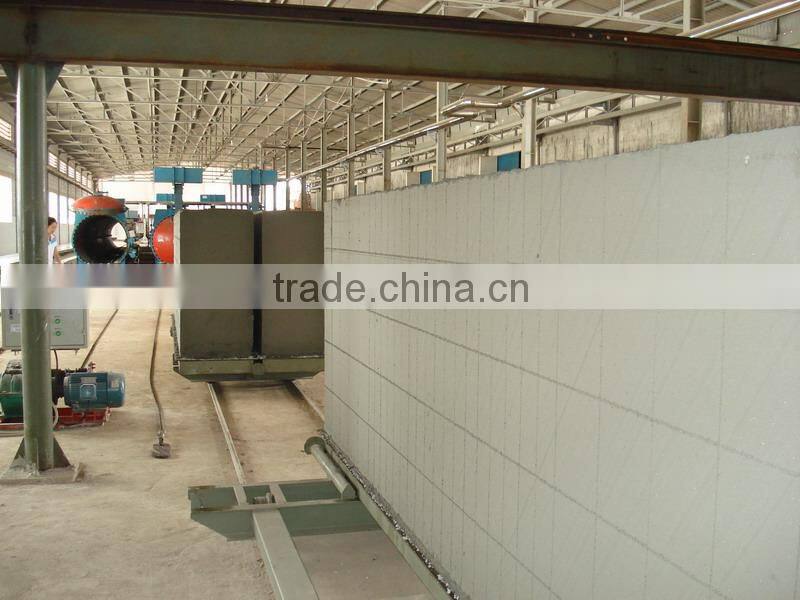

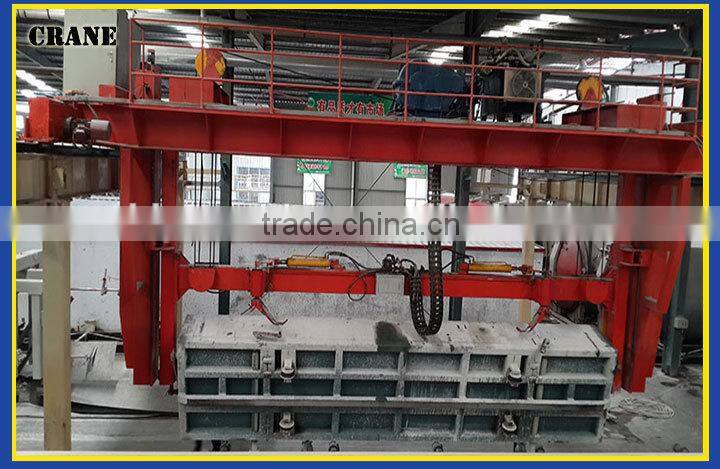

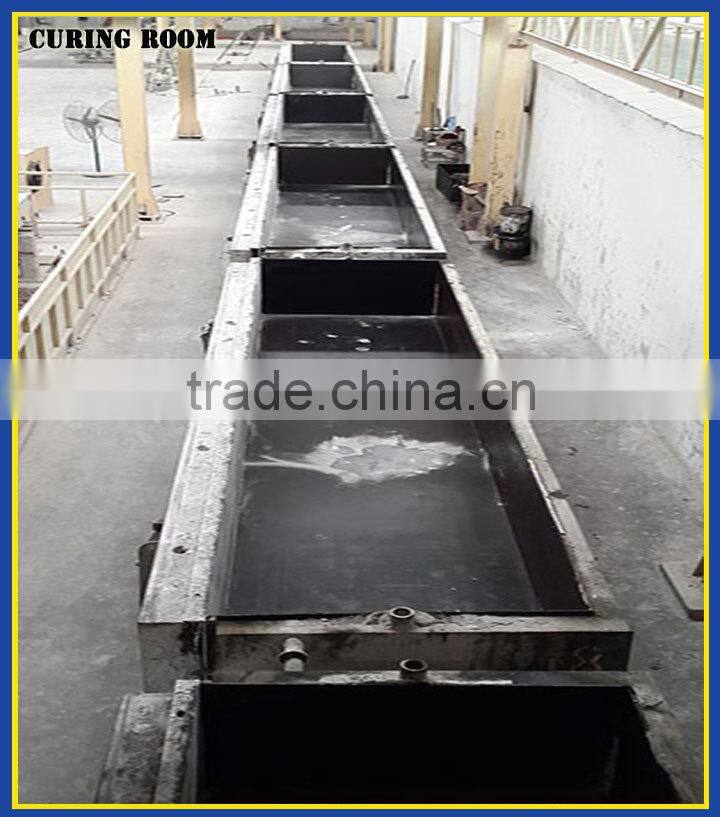

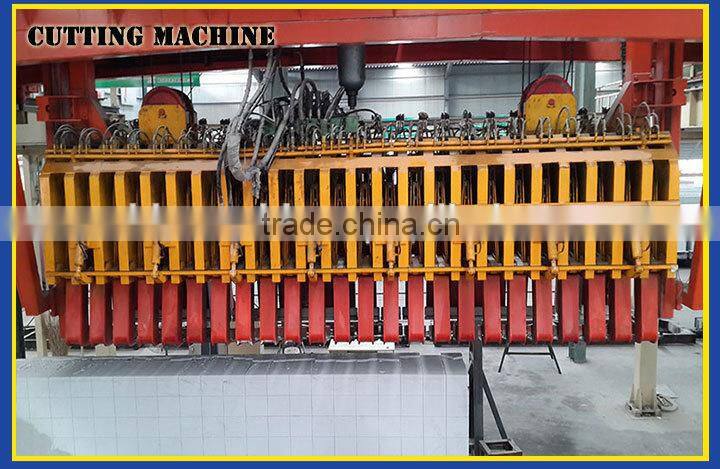

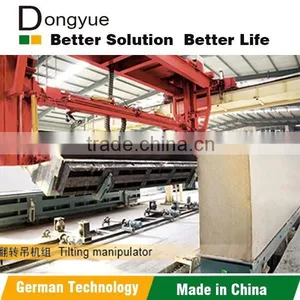

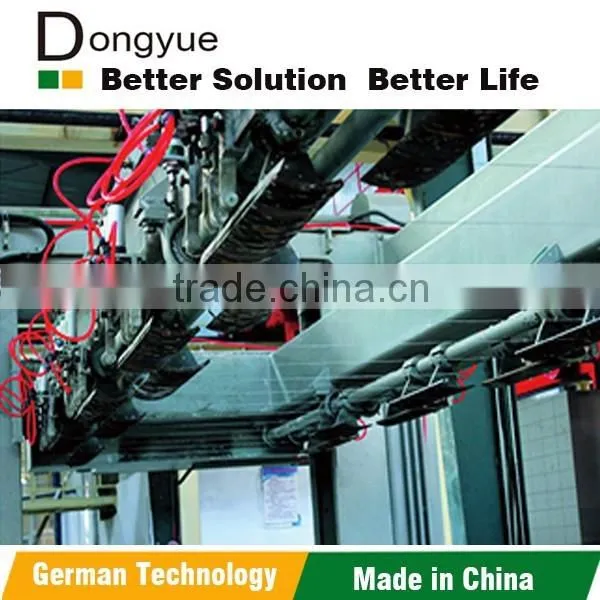

| After pouring slurry into the mould, put the mould box into the curing room with 50~70℃. After 2-3 hours curing, the blocks become solid, using reversal crane carry the mould and block to demould on cutting cart. The cutting cart will take the block to level cutting machine, vertical cutting, two sides cutting, and remove the waste material on the top. |

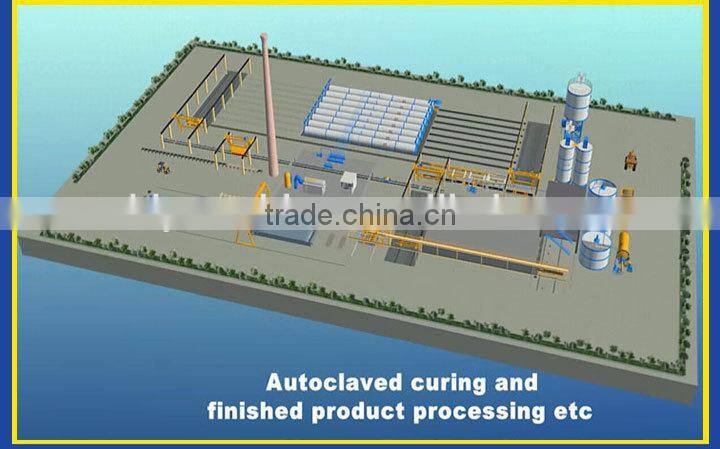

| Autoclaved and finished product |

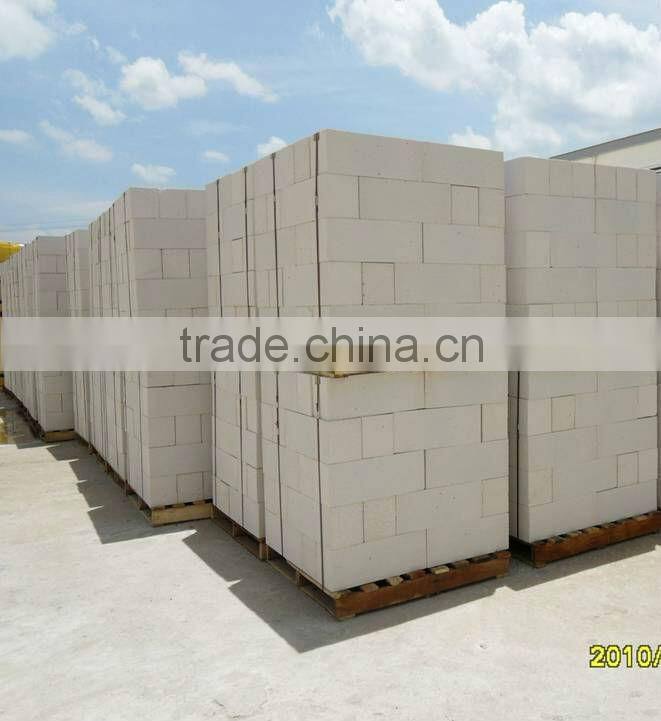

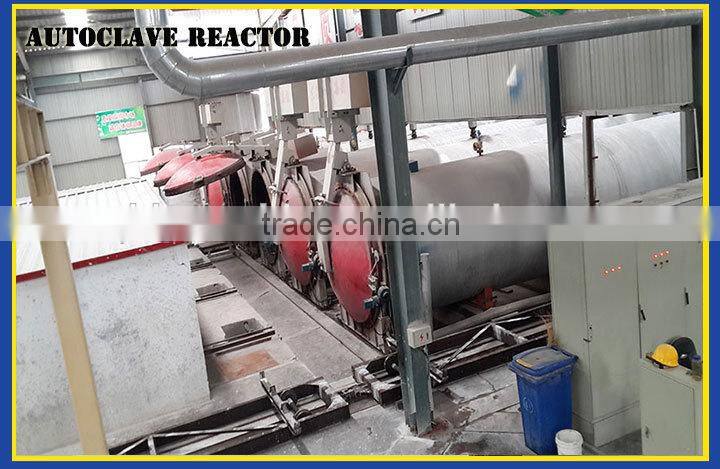

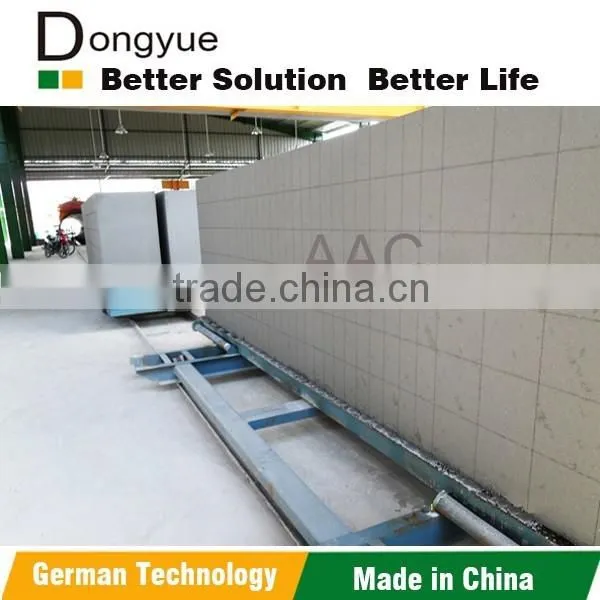

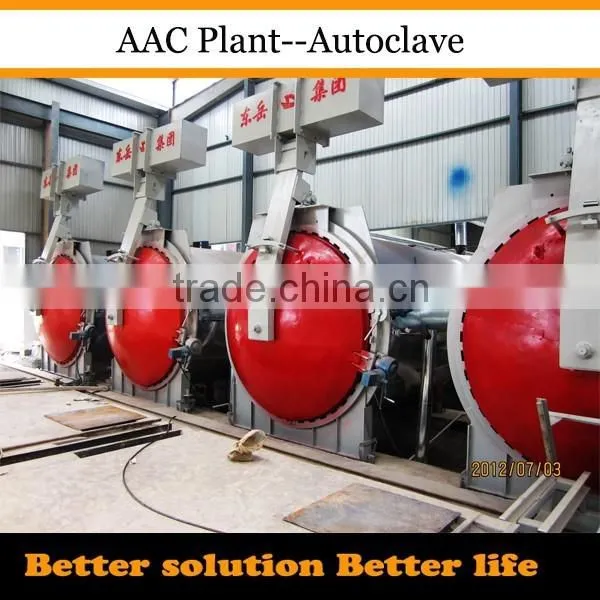

| Finished cutting using semi-product crane carry to the front of autoclave grouped, hoisting machine or dragger will drag steam trolley into autoclave to steam, after steamed 8 or 10 hours ,driven out by hoisting machine or dragger again, the finished block after separating, packing, transport the products by forklift to piled yard. |
| Central Controller |
| Capacity |
Annual capacity of 10-40 million cubic meters of autoclaved aerated concrete block production lines and equipment, the annual production capacity of 300,000 cubic meters of autoclaved aerated concrete panel equipment, and to provide customers with the planning, layout, design, drawing, installation, testing machine , guide building factories, process and production services. |
Why Choose US
| Why choose us |
| Our service | 1. Accept user consultation, confirm the scale of operation and program. |
| 2. Our company is able to serve you professionally,we will supply the design latout and meet your special needs. | |
| 3. High quility products,in-time shipment and after-sales service will be guaranteed. | |
| 4. Free installation, debugging and training the relating work . | |
| 5. Strict performance of the three services, technical consulting and make the technical review timely.To provide users with more additional value. |
| √ | Famous trademark of China |
| √ | Passed CE Mark |
| √ | National enterprise abiding by contract and keeping good faith |
| √ | National key high-tech enterprise |
| √ | Top ten influential brand of China brick and tile industry |
| √ | First place in production and sales of block machine and tile making machine in China |
| √ | ISO quality system certificate enterprise |
| √ | Supporting institution of Shandong machinery research institue |
Contact information
Contact person : harold
Skype:harold1988610
mobile number : 86-18264925825
email ID : harold at
