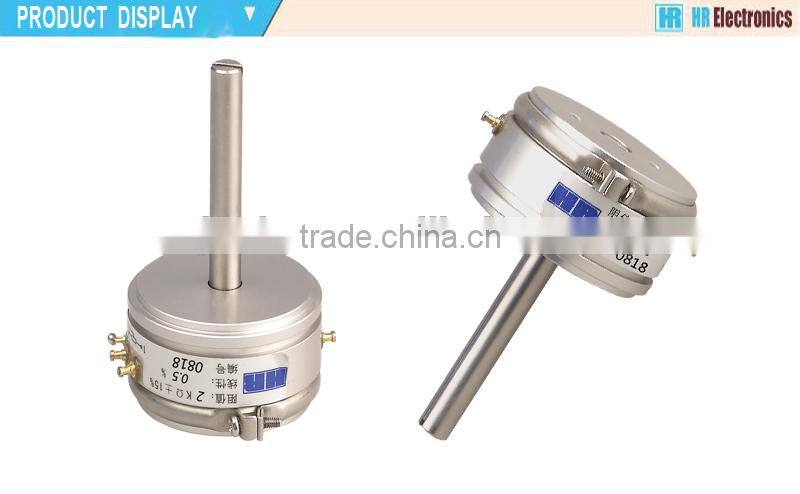

WDD35SC5 rotary potentiometers with UL CE ROHS 228
- 1000 Piece / Pieces per Month
- SHANGHAI / NINGBO
- T/T L/C D/P D/A Credit Card
You May Like
-
WDD35S Conductive platic potentiometer
-
RV24YN Rotary Carbon Film Potentiometers
-
SAKAE Precision potentiometers FCP22E 1K 2K 5K 10K
-
Favorites Compare FCP22E 2K shaft slide linear Hollow shaft Potentiometers variable resistor
-
New Potentiometers FCP22E 1K 2K 5K 10K
-
Japan sakae SoftBrands original authentic FCP22E
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HR | |
| Model Number | WDD35SC5 | Type | Rotary Potentiometer | |
| Technology | Carbon Film | Resistance | 1KΩ,2KΩ,3KΩ,5KΩ,10KΩ | |
| Resistance Tolerance | ±15% | Rated Power | 2W | |
| Max. Operating Voltage | < 24 V | Operating Temperature | -55℃~+125℃ |
Product Description
Specifications
* More than 7 years experience* First Class R&D Dept and Intellectual property rights
* rotary potentiometers with UL CE ROHS
Our products are made of hard-antirust aluminum body, molded conductive plastic substrate and imported precious metal electric brush and Collecting components, stainless steel shaft matched with the high-speed bearings to ensure that the product has the excellent performances of high linearity, long mechanical life, high resolution, small dynamic noise.
Mechanical parameter: Angular Displacement Sensor WDD35SC5
| Electrical: | |
| Standard Resistance | 1KΩ,2KΩ,3KΩ,5KΩ,10KΩ |
| Resistance Tolerance | ±15% |
| Independent Linearity | 0.1%,0.2%,0.3% 0.5%, 1.0% |
| Electrical Travel | 345°±2° |
| Power Rating | 2W ( @70°C ) |
| Resist. Temperature Coefficient Of Wire | ≤ ±400 P.P.M/°C |
| Insulation Resistance | ≥1000MΩat 500V.D.C |
| Dielectric Strength | 1 minute at 1000V(AC.RMS) |
| Output Smoothness | ≤±0.10% |
| Mechanical: | |
| Mechanical Travel | 360°(Endless) |
| Starting Torque (MAX.) | ≤10x10-4N.M |
| Bearing | 2 Pairs Ball Bearing |
| Shaft | Stainless Steel |
| Housing Case | Aluminum alloy |
| Environmental: | |
| Life Expectancy | Approx. 50,000,000(Shaft Revolutions) |
| Operating Temperature | -55°C~ +125°C |
| Vibration | 15G 2000Hz |
| Shock | 50G 11ms |
Advantage:
1. Substrate: Use the imported materials--DAP resin It has the good stability, water resistance, heat resistance, chemical resistance.
2. Electric brush and Collecting components: Use Alloy Which is made of six different Precious Metals. With the advantages of Hardness, heat resistance and corrosion resistance .
3. Lubricating oil: The lubricating oil used in the Our Products is aviation instrument lubricating oil. With Excellent high-temperature performance, mechanical stability and oxidation stability.
....
