Pipeline Pig Trap / Pig Launchers and Receivers / Launcher Receiver
US$ 3 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
WS
Model Number:
LSM-J/F-DN
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Yingkou/Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Scraper Launcher and Receiver Pigging Operation SystemsUS$ 3 - 100MOQ: 1 Piece -
Pipe Cleaning Pig Launcher and Receiver Design for Pigging ProcedureUS$ 3 - 100MOQ: 1 Piece
-
Scraper Launcher for Launching Pipeline Inspection Gauge PigUS$ 3 - 100MOQ: 1 Piece
-
Pipeline Intelligent Pigging Pig Launcher Design Size and MaterialsUS$ 3 - 100MOQ: 1 Piece
-
Receiver Launcher Equipment With Fast Door / Quick Actuating End ClosureUS$ 3 - 100MOQ: 1 Piece
Place of Origin
Liaoning, China
Brand Name
WS
Model Number
LSM-J/F-DN
After-sales Service Provided
No overseas service provided

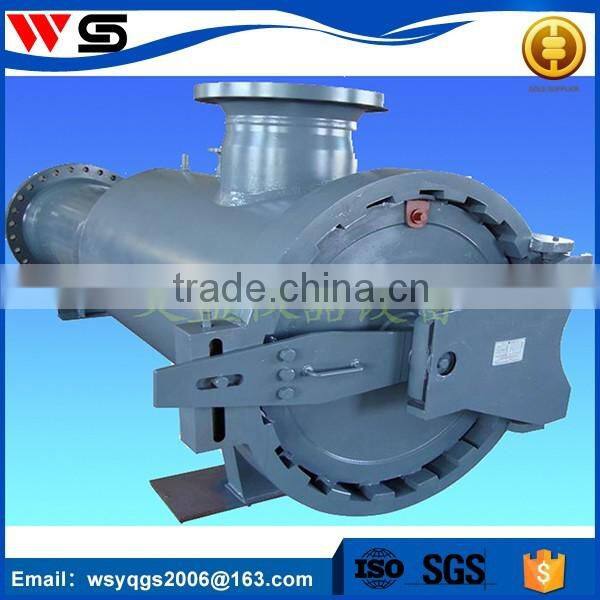

pipeline pig trap / pig launchers and receivers / launcher receiver
Product Description

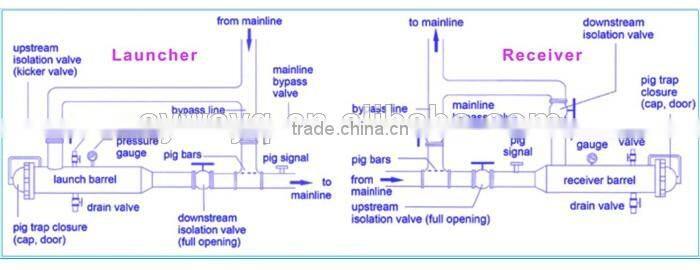

Pig launcher and receiver traps are custom manufacturerd for sub-sea,off-shore and onshore applications.

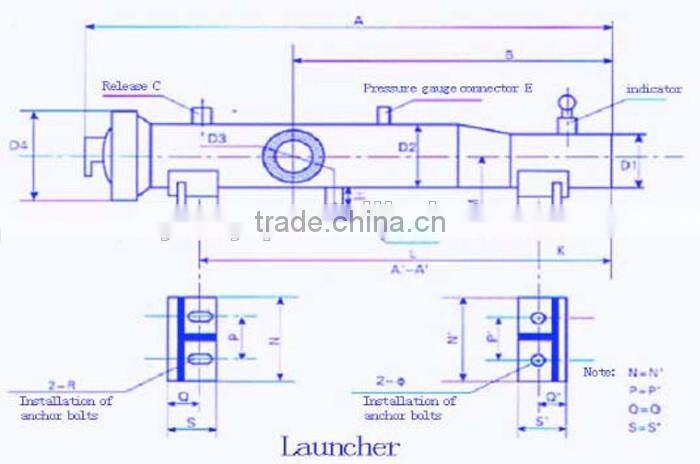

Pig launcher is used to launch the pig into the pipeline, and pig receiver is used to receive the pig after
they have made a successful launch. A launcher is located at the upstream end of the pipeline to launch the

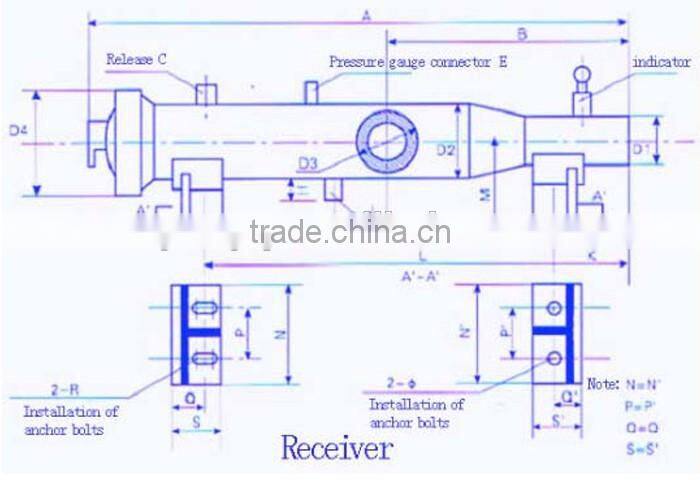

pig into the pipeline, A receiver is located at the downstream end of the pipeline to remove the pig from the
pipeline.
The choice of these traps will depend on the type pf pig to be run and pipeline design conditions.
| Pig Launcher and Receiver Standard Features | |
| A main body or barrel for pig storing | |
| A quick opening closure for inserting or removing the pigs.manually or motor operated(electric,hydranlic or pnenmatic) | |
| A tube end for connecting the trap to the pipeline | |
| Fluid by-pass nozzle for pig motion control | |
| Minor fitting nozzles for pressure and temperature gauges safety valves,drains ,vents etc. | |
| Saddles or equivalent supports |
- Carbon steel Body
- NPT vent, Drain,Pressure Gauge,Pig signaler connections
- Quick opening closure (china exclusive Patent no.:zl03210870.2)
- Alternate Elastomer seals to suit various applications
- Additional Ancillary connections
- Lifting Lugs for installation
- Support legs or skirt
- Weld neck flanged connections
- Special coating
