DTJ-V Semi Automatic Capsule Filler
- 20 Set / Sets per Month
- Ningbo or Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Application: | Chemical, Food, Medical | Packaging Type: | Capsule |
| Packaging Material: | Plastic, Wood | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
| Voltage: | 220V 50hz single phase (optional) | Power: | 3.5Kw, depend on different customer requirment | Place of Origin: | Zhejiang, China |
| Brand Name: | LTPM CHINA | Model Number: | DTJ-V | Dimension(L*W*H): | 1350*700*1600(L*W*H) |
| Weight: | 400Kg | Certification: | CE,SGS and ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
DTJ-V Semi Auto Capsule Filler
DTJ-V Semi-Automatic Capsule Filling Machine The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine adopted programmable control system, touch panel operation, stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.
1.It adopts Cycloid Motor for making machine in lowest sound running.There three Cycloid Motor in this machine.
2.DTJ-V adopts Touch Button for operating. It will be hard for makingpowder into Controlling System.
3.Easy for Changing Mould from Size 00 to 5#.

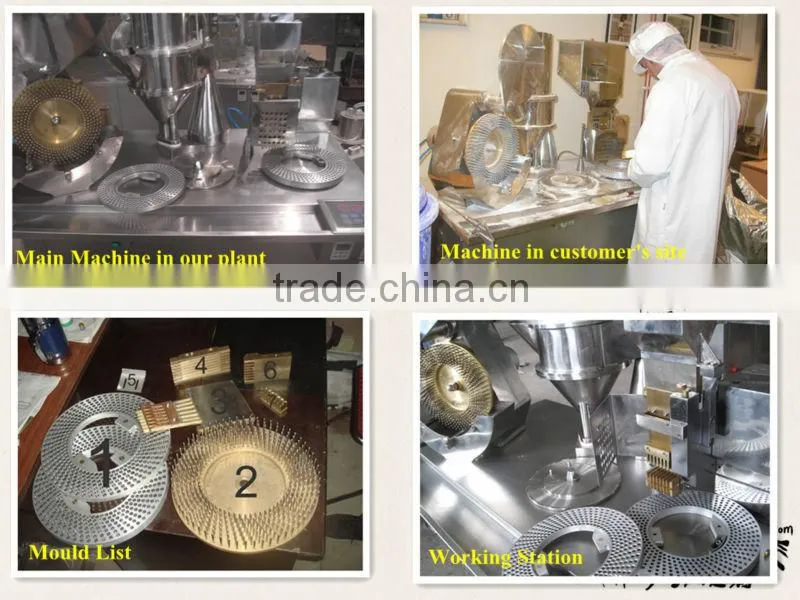

4.The machine is whole Body stainless steel. Capsule Feeder is Copper,Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailedplease see following Mould List)
5.We call the Semi Automatic Capsule Filling Machine operating THREESTEPS, Operator is easy to know how to Separate Capsules, Filling Capsules,Locking Capsules means Output.
Model: | DTJ-V |
Capsule Size: | #00-#5 |
Vacuum Pump: | XD-040(40m³/hour) |
Capacity Of air compressor: | 0.1m³/min |
Noise: | Less than 60dB (A) |
Overall Dimensions: | 1200*700*1600mm |
Packing Dimensions: | 1800*800*1800mm |
Net Weight: | 330Kg |
Gross Weight: | 525Kg |
Capacity: | 12,000capsules/hour |
Power Supply: | 380V 50Hz 2.2Kw |
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
