Specifications
1.LY1-(C)1 Class C 20KA 220V surge arrester2.OEM,ODM surge arrester
3.quality guarantee
4.20KA ClassC
5.CE,ISO
LY1-(C)1 Class C 20KA 220V surge arrester
Product Description
LY1-(C)1 series surge arrester/surge arrester/surge arrester(in short: SPD, alias: surge protector, surge arrester)is suitable for TN-S,TN-C-S,TT,IT etc. power supply system of AC50/60Hz,≤380V,installed on the joint of LPZ1 or LPZ2 and LPZ3,it's designed according to IEC61463-1,GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector/surge protector

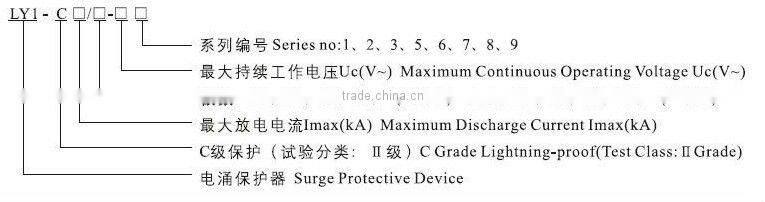

Model and Meaning
Main technical parameters :
| Techinical parameters | Model LY1-C | N-PE | |||||||||||
| Rated operating voltage Un(V~) | 110V | 220V | 380V | 220V | 380V | 220V | 380V | ||||||
| Maximum continuous operating voltage Uc | 140V | 275V | 320V | 385V | 420V | 440V | 275V | 320V | 385V | 420V | 440V | 255V | |
| Voltage protection level up(V~) KV | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤2.20 | ≤1.0 | ≤1.4 | ≤1.5 | ≤1.8 | ≤2.0 | ≤1.0 | ≤1.8 |
| Nominal discharge current In(8/20μs)KA | 20 | 15 | 20 | 60 | |||||||||
| Maximum discharge current Imax(8/20μs)KA | 40 | 30 | |||||||||||
| Response times | <25 | ||||||||||||
| Test standard | GB18802.1 IEC61643-1 | ||||||||||||
| The cross section of L/N line | 10,16 | 10 | |||||||||||
| The cross section of PE line | 10,25 | 16 | |||||||||||
| Fuse of switch(A) | 32A | 25A,32A | |||||||||||
| Operating environment°C | -40°C~85°C | ||||||||||||
| Relative humudity(25°C) | ≤95% | ||||||||||||
| Installation | Standard rail 35mm | ||||||||||||
| Material of outer covering | Fiber glass reinforced plastic | ||||||||||||
Product feature:
1.Inside over-current and over-heat protection,temperature control open circuit.
2.Module design,convenient installation,could be replaced online.
3.Smallness leak current,response quickly,less residual oltage.
4.Signal indication device,green(normal),red(abnormal).
5.New technology,highly energy,clearance discharge pole(N-PE).
Diemension
Our factory also supply OEM/ODM complete spare parts for surge arrester

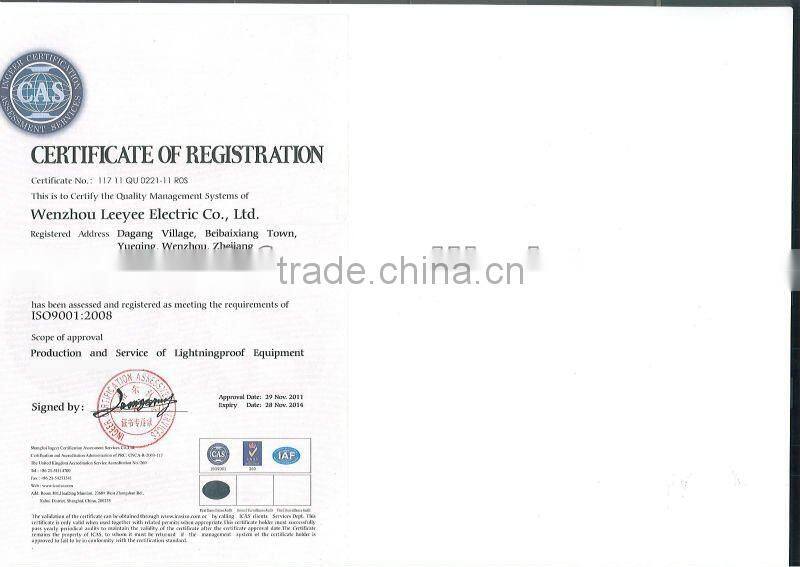

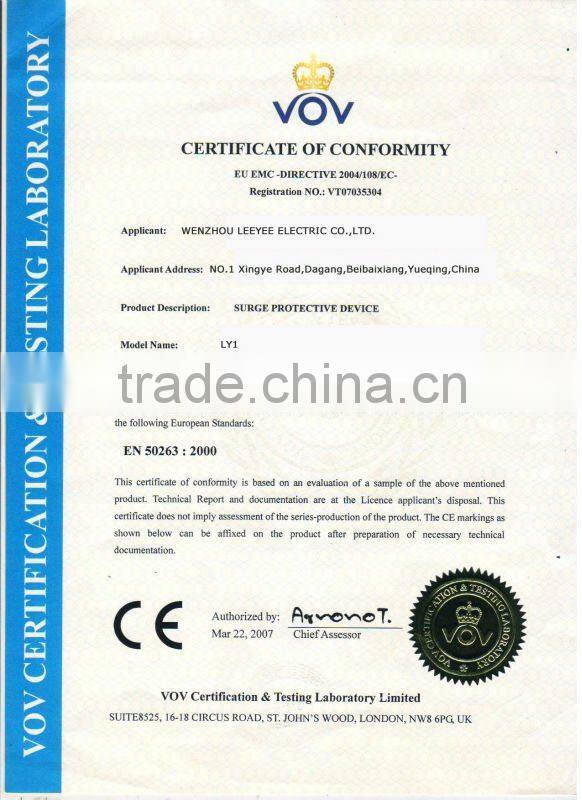

Test reports
Our factory
Other types of surge arrester
