floor constructional material aluminum panel curtain wall architecture wall train crown panel

Fengshun Aluminum honeycomb panel apply aluminum panel,ti alloy panel,stainless steel panel etc.As material of surface and bottom panel and aluminum honeycomb core in the middle,the honeycomb lay structural panel was made after high temperature and strong press.It has the feature of light,high strength,good hardness,sound proof and hot proof.Honeycomb panel is the material of aeronautics and astronautics,it is gradually used in the field of civilian nowadys such as construction,vehicles,billboard and other trades.Fengshun company has brought in the automatic complex manufacturing line from Germany,applied the double-component hot glue coating complex technology,so that the traditional manual single-plate production method has been changed,the production efficiency has increased and quality of products has reached the international advanced level,ate the same time,a variety of curved surface panel shape can fully achieve the perfect creativity of architect.

Stracture of honeycomb panel:

Specialty of the products:

1.It has high strength which can withstand more than 8000N/m2 of wind load.

2.Good hardness and light weight reduces a great deal of support loading of building.

3.Good sound-proofing,air sound insulation factor is 29dB.

4.Good thermal insulation and fire resisitance,thermal conductivity is 0.1613 W (m-k).

5.High surface smoothness,easy to install.

6.Wide varieties,single curved plate,double curved plate etc.

7.General thickness:8mm,10mm,12mm,15mm,20mm,25mm

Marerial of honeycomb panel:

Surface panel:alloy aluminum panel,Ti panel,stainless steel panel,etc.

Core material:apply six angles 3003 type aluminum honeycomb side core.

Alunimum thickness:0.04--0.06mm,length:5--6mm.The core consists of many crowded interconnecting honeycombs,just as many small H-beams which can withstand dispersedly the pressure came from the direction of surface panel,with the help of this structure,strength of withstanding pressure and high surface amoothness are ensured.

Application:

Architure,transportation,building curtain wall,doors of a vehihcle,train,partition,ceiling panel,ships,racing boat,train crown panel,buses,billboards,floor constructional material,etc.

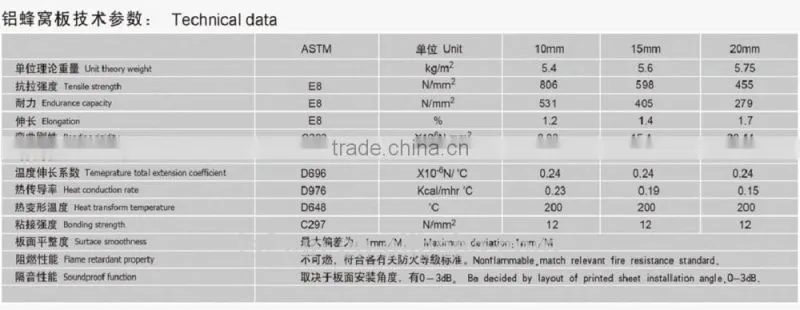

Technical data:

Fengshun Group is a large-scaled group enterprise integrating industry of building and decoration engineering, new material, track traffic, electronics, medical devices, etc. As the core enterprise of the group, Jiangsu Fengshun New Material Technology Co., Ltd. is located in Changzhou, the central zone of Yangtze Delta - most dynamic area in China, and Wuxi National Tourist & Holiday Resort is on its east. Adjacent to railway, airport, port and highway, we have a prominent geographic advantage.

Our company specializes in such products as honeycomb panel, corrugation panel, aluminum panel, aluminum plastics pane-l, aluminum alloy ceiling panel, etc. Therefore, our company is an integrated enterprise pursuing business in designing, production as well as installation. Our products hold a higher share in the domestic market and they have been sold overseas.

Our company has passed ISO9001, ISO14001 and OHSAS18001 system certifications. In 2008, we were awarded as contract-honoring and faith-keeping enterprise by Jiangsu Provincial People’s Government.

Recent Projects:
